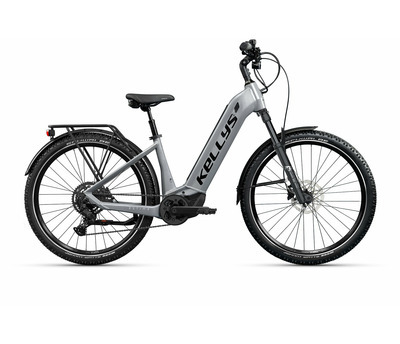

ESTIMA X70 P 820 Wh
front light
TRELOCK Airflow 100
rear light
TRELOCK Duo Flat
accessories
carrier, adujstable kickstand, bell
Frame set
frame KELLYS ESTIMA series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5“ tapered HT
fork FOX AWL (27.5") Boost, 120 mm, EVOL air / RAIL damper / 15QR thru axle
frame size S / M
Drive
motor PANASONIC GX Ultimate, 95 Nm, 36 V
battery KELLYS Re-Charge K1 Li-ion internal removable 820 Wh / capacity 23 Ah, co-developed by Kellys-BMZ
switch unit PANASONIC
computer display PANASONIC Bluetooth® 5.0 navigation Side Color Display
crankset MIRANDA Delta (36T) - length 170 mm
rear derailleur SHIMANO Deore XT Linkglide M8130 (direct mount)
shifters SHIMANO Deore XT Linkglide SL-M8130-R Rapidfire Plus (I-Spec EV)
speed 11
cassette sprocket SHIMANO Linkglide CS-LG600-11 (11-50T)
chain SHIMANO Linkglide CN-LG500 (122 links)
pedals plastic
Brakes
brakes SHIMANO MT420 hydraulic disc
brake levers SHIMANO BL-M4100
brake rotors 180 mm front / 180 mm rear
Wheels
hubs SHIMANO MT400-B Disc Center Lock (32 holes)
rims KLS Valor 3 Disc 584x30 (32 holes)
spokes stainless steel black
tyres SCHWALBE Johnny Watts Performance 65-584 (27.5"x2.60) RaceGuard, ADDIX, ReflectiveLine
thru axle FOX 15QR 15x110 mm front / 12x148 mm rear
fenders
plastic
Cockpit
head parts FSA 1.5 integrated
stem PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 85 mm
handlebar KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 700 mm
grips KLS Wave 2Density ergonomic
seat post KS Rage-iS Remote Telescopic - diam 30.9 mm / length 388 mm, travel 125 mm
saddle SELLE ROYAL Essenza Relaxed
