Frame set

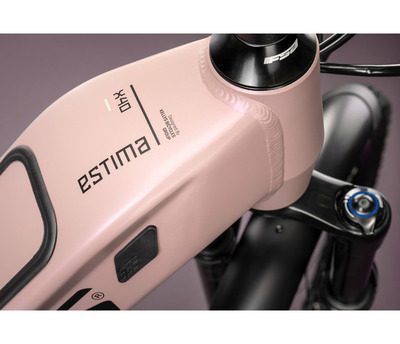

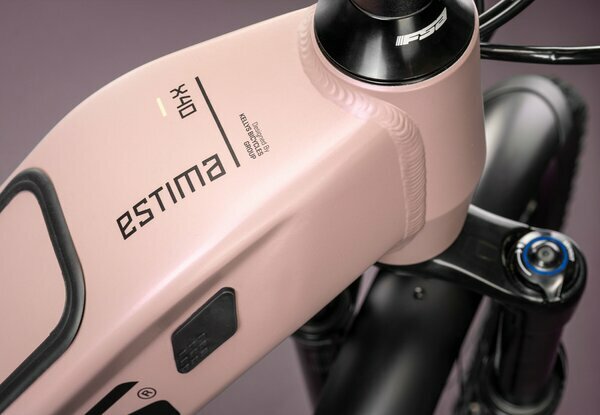

frame KELLYS ESTIMA series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5“ tapered HT
fork ROCK SHOX 35 Silver TK (27.5") Boost, 100 mm, Solo Air / TurnKey / Maxle Stealth 15 mm thru axle
frame size S / M
Drive
motor PANASONIC GX Ultimate, 95 Nm, 36 V
battery KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ
switch unit PANASONIC

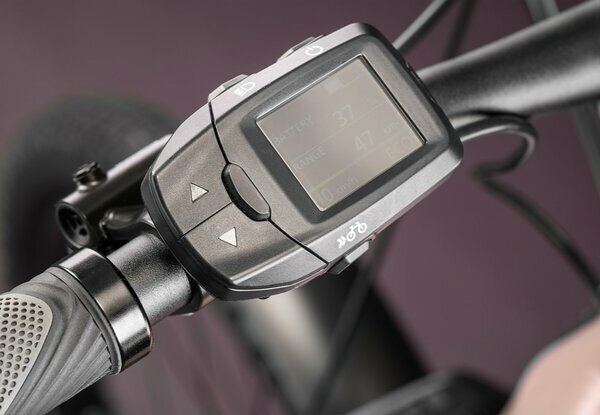

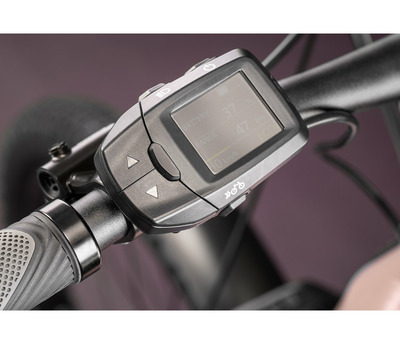

computer display PANASONIC Bluetooth® 5.0 navigation Side Color Display
crankset MIRANDA Delta (36T) - length 170 mm
rear derailleur SHIMANO Cues U4000 (direct mount)
shifters SHIMANO Cues SL-U4000-9 Rapidfire Plus
speed 9
cassette sprocket SHIMANO Linkglide CS-LG300-9 (11-46T)
chain SHIMANO Linkglide CN-LG500 (122 links)
pedals plastic
Brakes
brakes SHIMANO MT200 hydraulic disc
brake levers SHIMANO BL-MT200
brake rotors 180 mm front / 180 mm rear
Wheels
hubs SHIMANO MT400-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims KLS Valor 3 Disc 584x30 (32 holes)
spokes stainless steel black
tyres SCHWALBE Smart Sam Active 60-584 (27.5"x2.35) K-Guard, ReflectiveLine
thru axle ROCK SHOX Maxle Stealth 15x110 mm front / 12x148 mm rear
fenders
plastic
Cockpit
head parts FSA 1.5 integrated
stem PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 85 mm
handlebar KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 700 mm
grips KLS Wave 2Density ergonomic
seat post KALLOY suspension - diam 30.9 mm / length 300 mm (S), 350 mm (M)
saddle SELLE ROYAL Freedom Royalgel
front light
TRELOCK Veo 50
rear light
TRELOCK Duo Flat
accessories

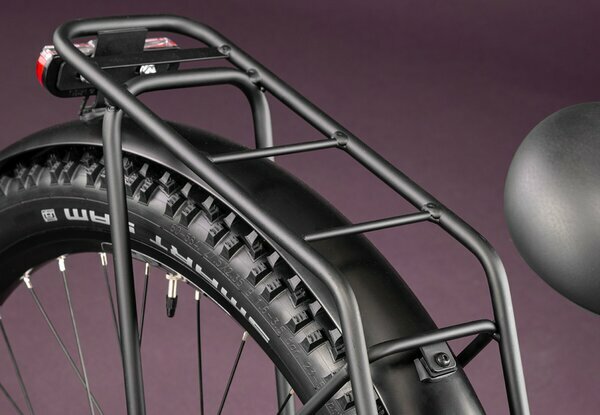

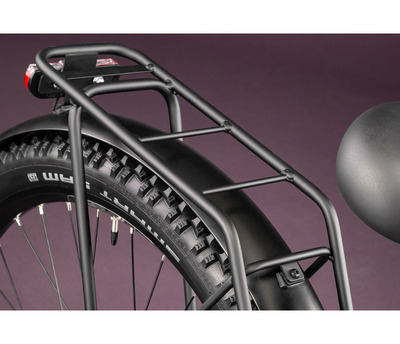

carrier, adujstable kickstand, bell
