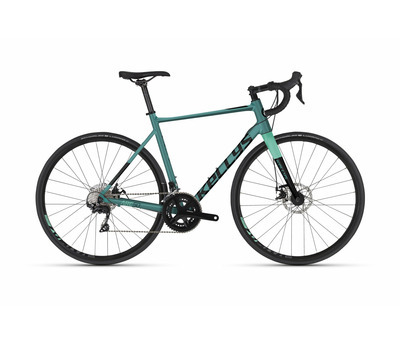

ARC 50
Road bike
Frame set
frame KELLYS Endurance Concept, Aluminium alloy Disc / flat mount, tapered HT, internal routing
fork KELLYS Carbon Disc, 1.5 tapered steerer / post mount disc brake
frame size S / M / L
Drive
crankset SHIMANO RS510 (50x34T) - length 172.5 mm (S - M), 175 mm (L)
rear derailleur SHIMANO 105 R7000 (direct mount)
front derailleur
SHIMANO 105 R7000 (braze on)
shifters SHIMANO 105 ST-R7000 Dual Control
speed 22
cassette sprocket SHIMANO CS-R7000-11 (11-32T)
chain KMC X11 EL (108 links)
b.b.parts SHIMANO BB-RS500
Brakes
brakes TEKTRO Spyre Mechanical Disc
brake levers SHIMANO 105 ST-R7000 Dual Control
brake rotors 160 mm front / 160 mm rear
Wheels
hubs NOVATEC Disc (28 holes)
rims KELLYS Spark Disc 622x15 (32 holes / eyelets)
spokes stainless steel black
tyres SCHWALBE Lugano 25-622 (700x25C) K-Guard, Silica
Cockpit
head parts FSA 1.5 semi-integrated
stem KLS Active Road - diam 28.6 mm / bar bore 31.8 mm / 6° / length 70 mm (S), 90 mm (M), 110 mm (L)
handlebar KLS Expert Road - diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L)
grips KLS bar tape
seat post KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - L)
saddle WTB Volt
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
