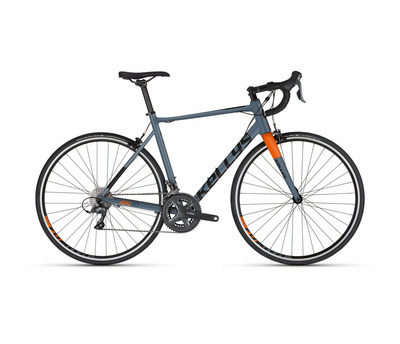

ARC 10
Frame set
frame KELLYS Endurance Concept, Aluminium alloy / tapered HT, internal routing
fork KELLYS Carbon, 1.5 tapered steerer
frame size S / M / L
Drive
crankset SHIMANO Claris R2000 (50x34T) - length 170 mm (S - M), 175 mm (L)
rear derailleur SHIMANO Claris R2000 (direct mount)
front derailleur
SHIMANO Claris R2000 (braze on)
shifters SHIMANO Claris ST-R2000 Dual Control
speed 16
cassette sprocket SHIMANO CS-HG50-8 (11-32T)
chain KMC Z8 (108 links)
b.b.parts SHIMANO BB-RS500
Brakes
brakes TEKTRO
brake levers SHIMANO Claris ST-R2000 Dual Control
Wheels
hubs SHIMANO Claris 2400 (32 holes)
rims KELLYS Spark 622x15 (32 holes / eyelets)
spokes stainless steel black
tyres SCHWALBE Lugano 25-622 (700x25C) K-Guard, Silica
Cockpit
head parts FSA 1.5 semi-integrated
stem KLS Active Road - diam 28.6 mm / bar bore 31.8 mm / 6° / length 70 mm (S), 90 mm (M), 110 mm (L)
handlebar KLS Expert Road - diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L)
grips KLS bar tape
seat post KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - L)
saddle WTB Volt
