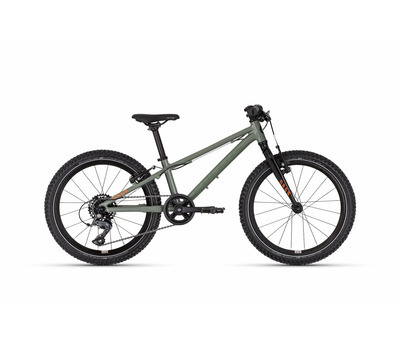

NAGA AIR 70 SAGE GREEN 20"

Junior mountain bike

Search for a dealer

Frame set

frame
KELLYS Superlight double butted Aluminium alloy Junior 20"
fork
Aluminium alloy (alloy steerer)
frame size
235 mm

Drive

crankset
PROWHEEL (30T) - length 140 mm
rear derailleur
SHIMANO Claris R2000 (direct mount)
front derailleur
chain guide
shifters
SHIMANO Claris SL-R2000-R Rapidfire Plus (for FlatBar)
speed
8
cassette sprocket
SHIMANO CS-HG31-8 (11-32T)
chain
KMC Z8 (94 links)
b.b.parts
cartridge (126 mm)
pedals
plastic

Brakes

brakes
TEKTRO V-brake
brake levers
APSE

Wheels

hubs
alloy (20 holes)
rims
KLS 406x19 (20 holes)
spokes
steel black
tyres
SCHWALBE Little Joe Performance 50-406 (20"x2.0) ADDIX, folding

Cockpit

head parts
semi-integrated
stem
integrated BarStem - diam 28.6 mm / bar bore 31.8 mm / length 40 mm
handlebar
integrated - diam 31.8 mm / rise 6° / width 560 mm
grips
kraton 2Density
seat post
alloy - diam 27.2 mm / length 300 mm
saddle
SELLE ROYAL Explora Junior

weight
7.70

Geometria NAGA AIR 70 SAGE GREEN 20"

We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
