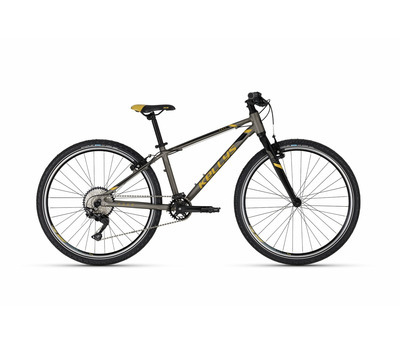

NAGA 90
Frame set
frame KELLYS Aluminium alloy MTB 26
fork Aluminium alloy
frame size 340 mm
Drive
crankset PROWHEEL (30T) - length 155 mm
rear derailleur SHIMANO Deore M6000 (direct mount)
front derailleur
chain guide
shifters SHIMANO Deore SL-M6000-R Rapidfire Plus
speed 10
cassette sprocket SHIMANO CS-HG500-10 (11-42T)
chain KMC X10 EL (108 links)
b.b.parts cartridge (113 mm)
pedals plastic
Brakes
brakes TEKTRO V-brake
brake levers APSE
Wheels
hubs alloy / SHIMANO T3000 (32 holes)
rims KLS Draft 559x21 (32 holes)
spokes steel black
tyres SCHWALBE CX Comp, K-Guard 50-559 (26x2.0)
Cockpit
head parts semi-integrated
stem PROMAX - diam 31.8 mm / length 45 mm
handlebar KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 600 mm
grips kraton 2Density
seat post KALLOY - diam 27.2 mm / length 300 mm
saddle KLS DriveLine Junior
