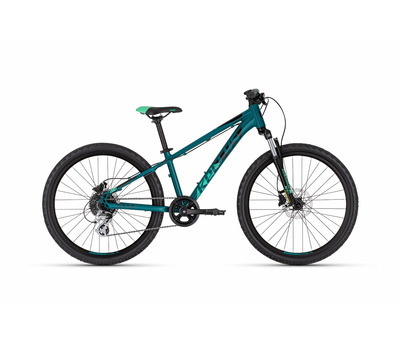

MARC 90 TEAL 24"
Frame set
frame KELLYS Alutec RRC Junior 24" - Race Ready Concept
fork SR SUNTOUR XCT-JR DS (24"), 50 mm, coil spring
frame size 315 mm
Drive
crankset PROWHEEL (32T) - length 152 mm
rear derailleur microSHIFT Marvo M46S
shifters microSHIFT Marvo SL-M859-R
speed 9
cassette sprocket SHIMANO HG200-9 (11-34)
chain KMC Z8 (102 links)
b.b.parts cartridge (124 mm)
pedals plastic
Brakes
brakes SHIMANO MT200 Hydraulic Disc
brake levers SHIMANO BL-MT200
brake rotors 160 mm front / 160 mm rear
Wheels
hubs SHIMANO TX505 Disc Center Lock (32 holes)
rims KLS Draft Disc 507x21 (32 holes)
spokes steel black
tyres INNOVA 50-507 (24"x1.95)
Cockpit
head parts semi-integrated
stem integrated BarStem - diam 28.6 mm / bar bore 31.8 mm / length 40 mm
handlebar integrated - diam 31.8 mm / rise 6° / width 580 mm
grips KLS Advancer 2Density
seat post KALLOY - diam 27.2 mm / length 300 mm
saddle KLS DriveLine Junior
