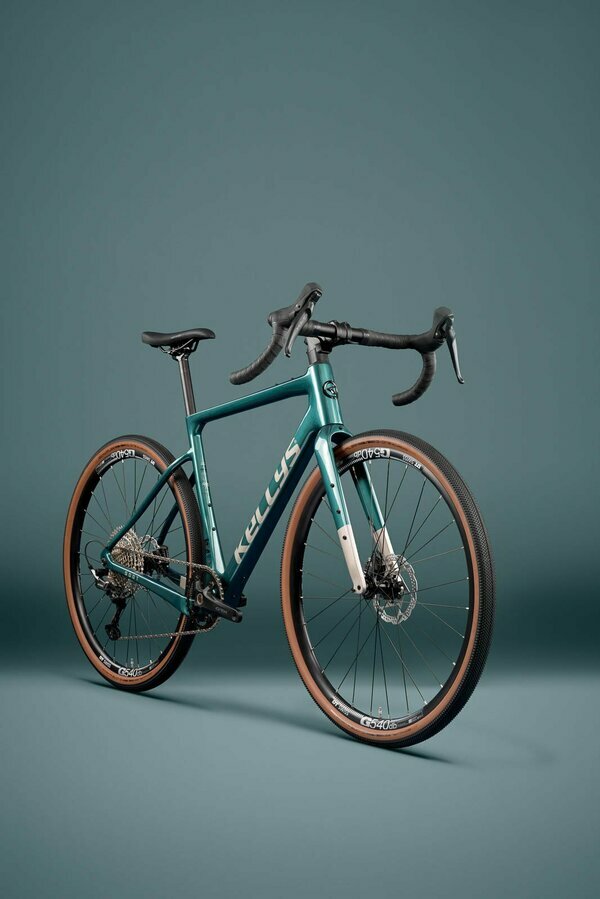

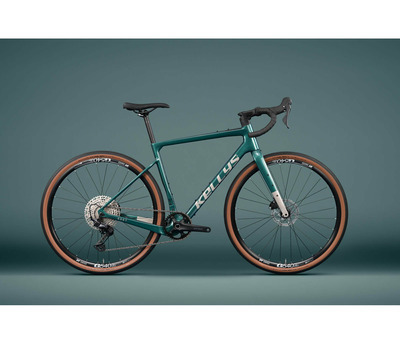

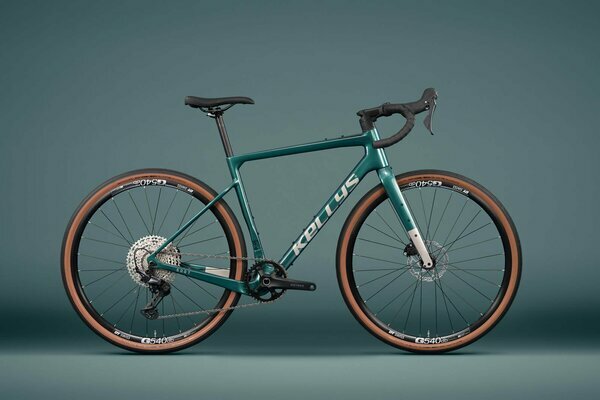

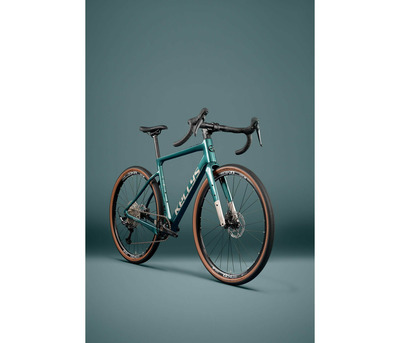

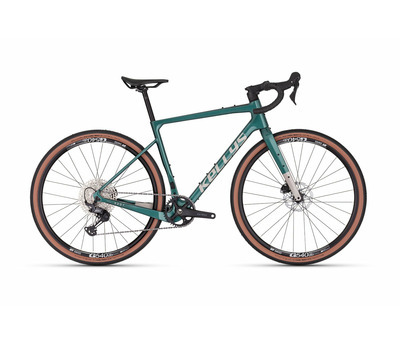

SOOT X90
EMERALD GREEN
Carbon gravel bike
Frame set

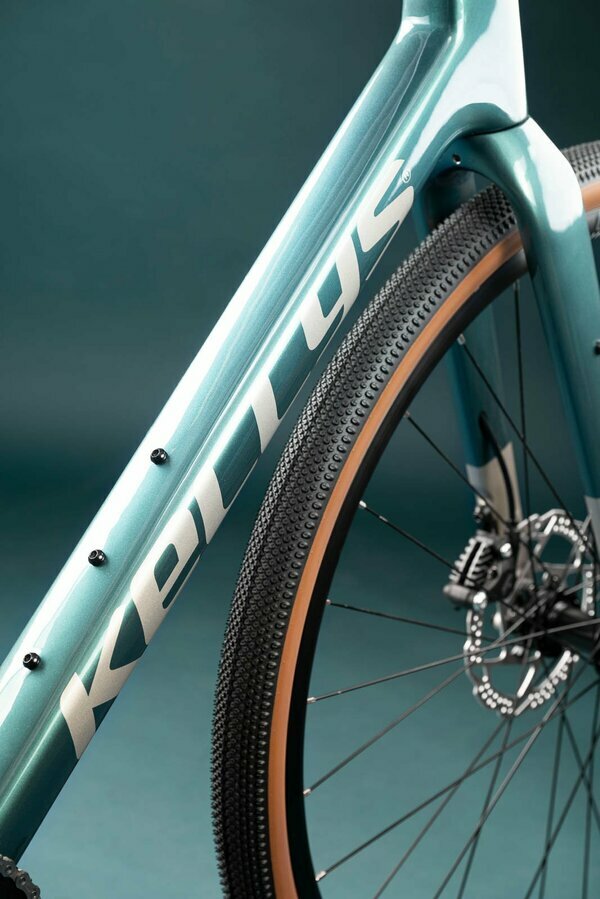

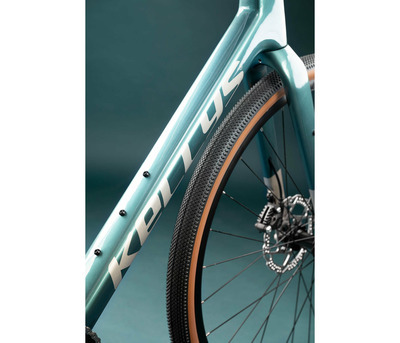

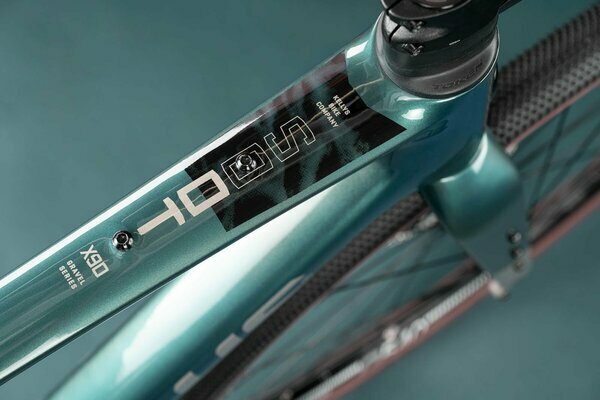

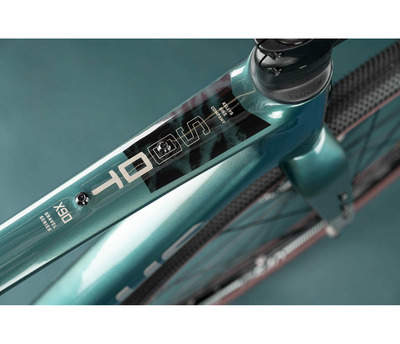

frame
KELLYS Gravel Concept Carbon Disc / 1.5" tapered HT, aerodynamic internal cable routing, flat mount disc brake / 12 mm thru axle
fork
KELLYS Carbon Disc / 1.5" tapered steerer, flat mount disc brake / 12 mm thru axle
frame size
S (470 mm) / M (490 mm) / L (510 mm)
Drive

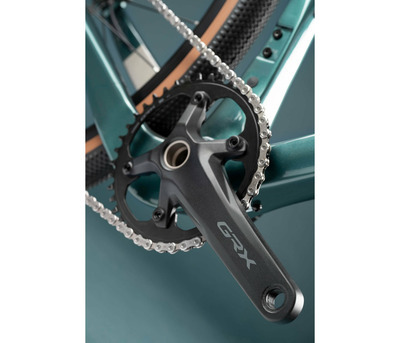

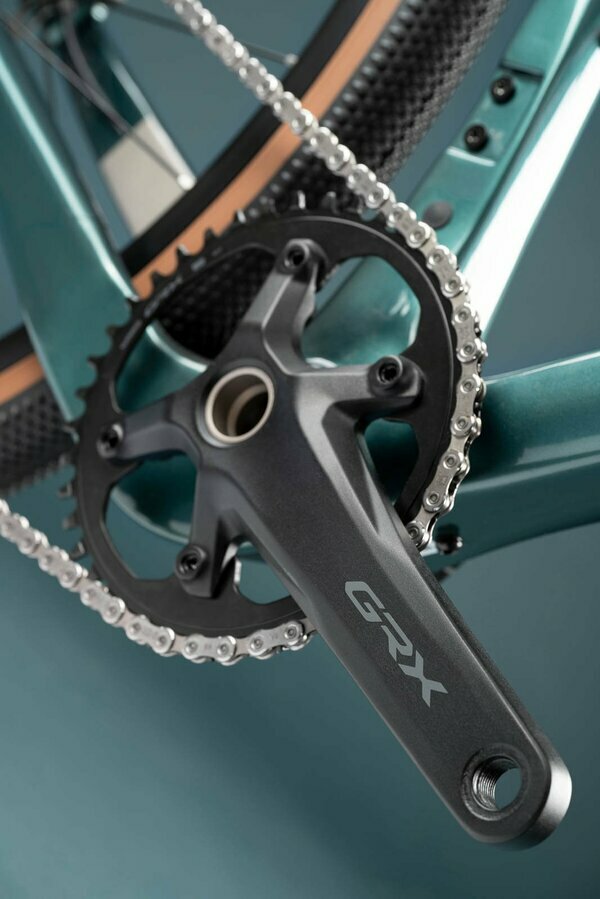

crankset
SHIMANO GRX RX610-1 (40T) - length 172.5 mm (S - M), 175 mm (L)
rear derailleur
SHIMANO GRX RX822 (direct mount)
shifters
SHIMANO GRX ST-RX610-R Dual Control / BL-RX610-L
speed
12
cassette sprocket
SHIMANO Deore CS-M6100-12 (10-51T)
chain
SHIMANO CN-M7100
b.b.parts
SHIMANO Press-Fit BB-RS500-PB
Brakes
brakes
SHIMANO GRX RX400 Hydraulic Disc
brake levers
SHIMANO GRX ST-RX610-R Dual Control / BL-RX610-L
brake rotors
SHIMANO RT54, 160 mm front / 160 mm rear
Wheels
hubs
KT Disc Center Lock (28 holes)
wheel set
DT SWISS G 540 Disc 700Cx24 (28 holes)
spokes
stainless steel black
tyres
SCHWALBE G-One Allround Performance 45-622 (700x45C) RaceGuard, ADDIX, folding
thru axle
12x120 mm front / 12x172 mm rear
Cockpit
head parts

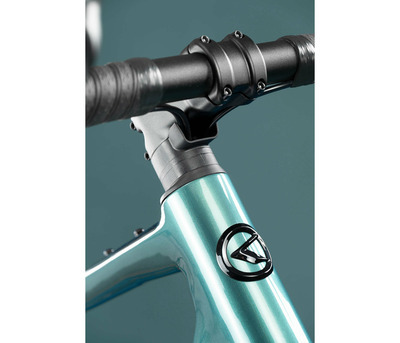

TOKEN A-BOX Aero integrated cable routing system

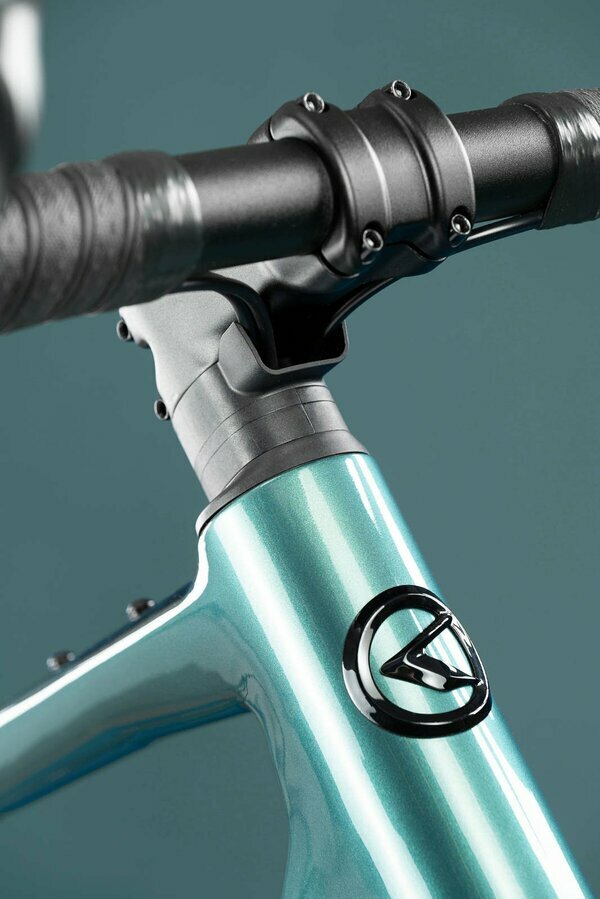

stem
PROMAX (aerodynamic internal cable routing compatible with A-BOX head set) - diam 28.6 mm / bar bore 31.8 mm / length 80 mm (S ), 90 mm (M), 100 mm (L)
handlebar
GravelBar, double butted, internal cable routing - diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L)
grips
SELLE ITALIA Smart bar tape
seat post
KLS Active Road - diam 27.2 mm / length 400 mm (S - L)
saddle
SELLE ITALIA X Evo
weight
10.40 kg (M)
The weight corresponds to the most common model specification in size M. The actual weight of your bike may vary.
