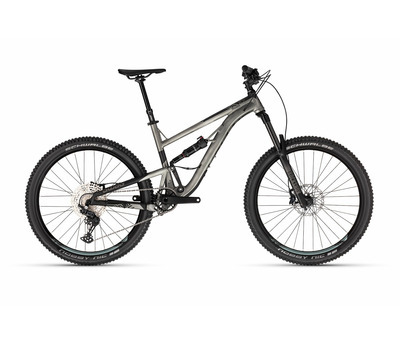

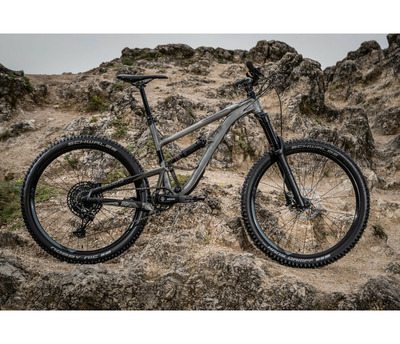

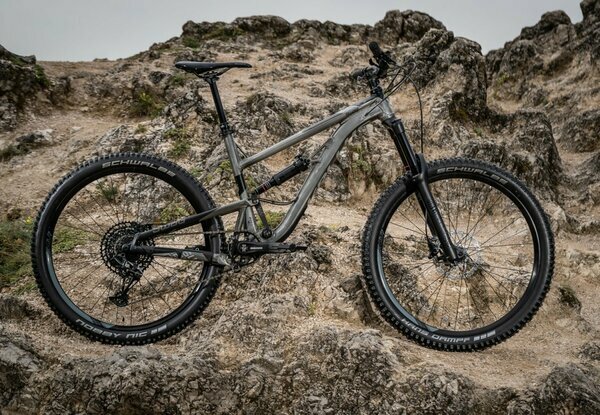

SWAG 10 29"
Enduro bike
Frame set

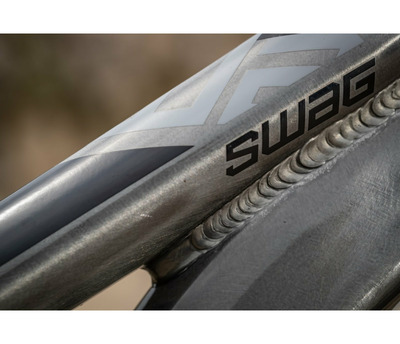

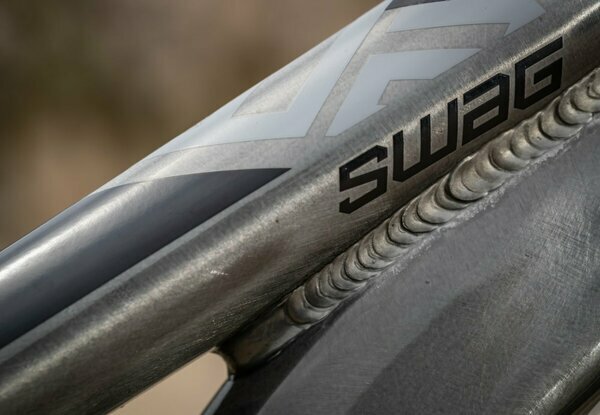

frame KELLYS Enduro 29 / Think Link® suspension system, 150 mm rear travel, tapered HT, internal routing, 12x148 mm Boost thru axle
fork ROCK SHOX 35 Silver TK (29) Boost, 160 mm, Solo Air / TurnKey / Maxle Stealth 15 mm thru axle

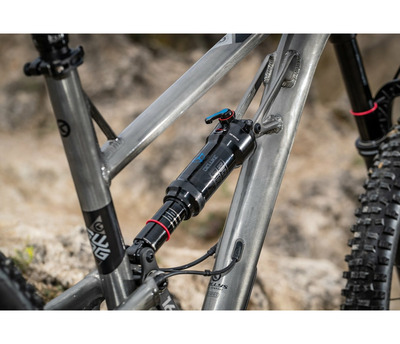

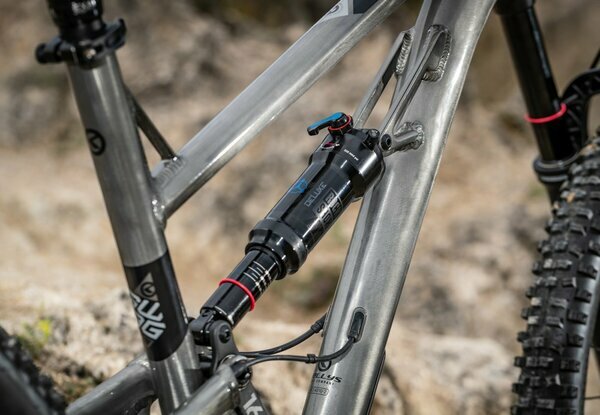

rear shock ROCK SHOX Deluxe Select+ RT, DebonAir / Open-Threshold (210x55 mm)
frame size M / L
Drive
crankset SAMOX (32T) - length 175 mm

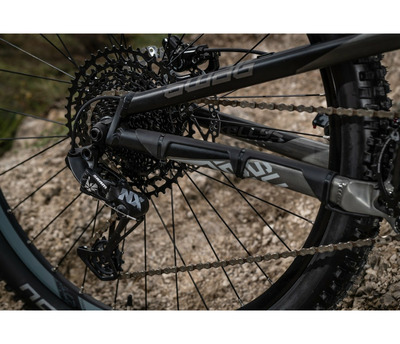

rear derailleur SHIMANO Deore M6100 (direct mount)
front derailleur
chain guide MOZARTT Piano, ISCG 05
shifters SHIMANO Deore M6100-IR Rapidfire Plus (I-Spec EV)
speed 12
cassette sprocket SHIMANO CS-M6100-12 (10-51T)
chain SHIMANO CN-M6100 (114 links)
b.b.parts SAMOX Press-Fit
pedals KLS Master
Brakes
brakes SHIMANO Deore MT410 Hydraulic Disc
brake levers SHIMANO Deore BL-M4100
brake rotors 180 mm front / 180 mm rear
Wheels
hubs SHIMANO Deore MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims KLS Valor 3 Disc (622x30 / 32 holes)
spokes stainless steel black
tyres SCHWALBE Nobby Nic Performance 60-622 (29x2.35) ADDIX
thru axle ROCK SHOX Maxle Stealth 15x110 mm front / Mr.control 12x177 mm rear
Cockpit

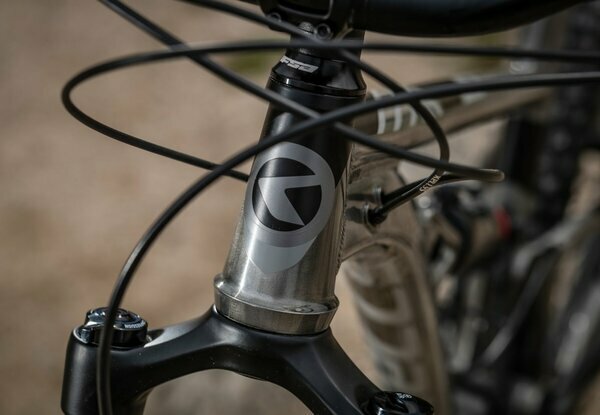

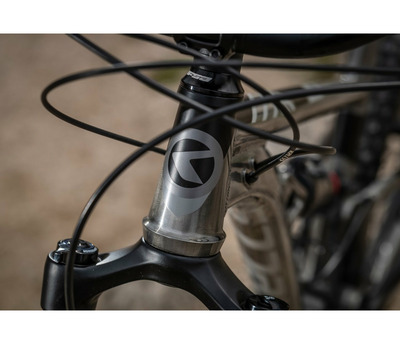

head parts FSA 1.5 integrated
stem KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / lenght 45 mm
handlebar KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 38 mm / width 780 mm
grips KLS Poison OneLockon
seat post EXAform JAG-i Remote Telescopic - diam 30.9 mm / length 485 mm, travel 150 mm
saddle fi’zi:k Taiga, S-alloy rails
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
