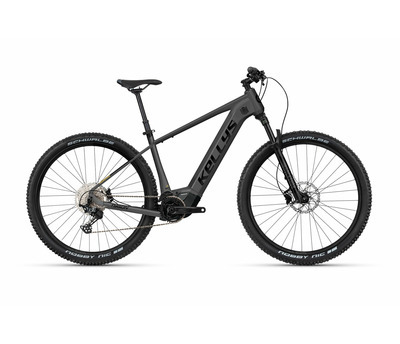

TYGON R90 P 29" 725 Wh
Hardtail electric mountain bike
Frame set
frame KELLYS TYGON R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5“ tapered HT, 12x148 mm Boost thru axle
fork ROCK SHOX 35 GOLD RL (29") Boost, 120 mm, DebonAir / Motion Control / Maxle Stealth 15 mm thru axle
frame size M / L / XL
Drive
motor PANASONIC GX Ultimate, 90 Nm, 36 V
battery KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ
computer display PANASONIC Bluetooth® 5.0 navigation Side Color Display
crankset SAMOX (34T) - length 170 mm
rear derailleur SHIMANO Deore XT M8100 (direct mount)
shifters SHIMANO Deore SL-M6100-IR Rapidfire Plus (I-Spec EV)
speed 12
cassette sprocket SHIMANO CS-M6100-12 (10-51T)
chain SHIMANO CN-M6100 (122 links)
pedals plastic
Brakes
brakes SHIMANO MT420 Hydraulic Disc
brake levers SHIMANO Deore BL-M4100
brake rotors 180 mm front / 180 mm rear
Wheels
hubs SHIMANO MT400-B / Deore MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims KLS Valor 3 Disc 622x30 (32 holes)
spokes stainless steel black
tyres SCHWALBE Nobby Nic Performance 60-622 (29"x2.40) ADDIX, folding
thru axle ROCK SHOX Maxle Stealth 15x110 mm front / NOVATEC 12x181 mm rear
Cockpit
head parts FSA 1.5 semi-integrated
stem KLS Active - diam 28.6 mm / bar bore 31.8 mm / 6° / length 80 mm
handlebar KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 720 mm
grips KLS Poison OneLockon
seat post LIMOTEC A1 Remote Telescopic - diam 30.9 mm / length 445 mm, travel 150 mm
saddle SELLE ROYAL Vivo
