Frame set

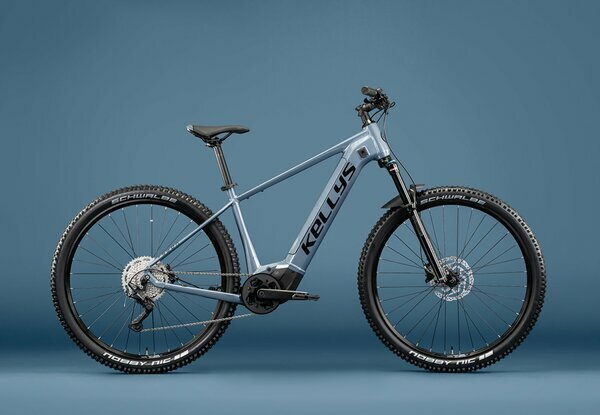

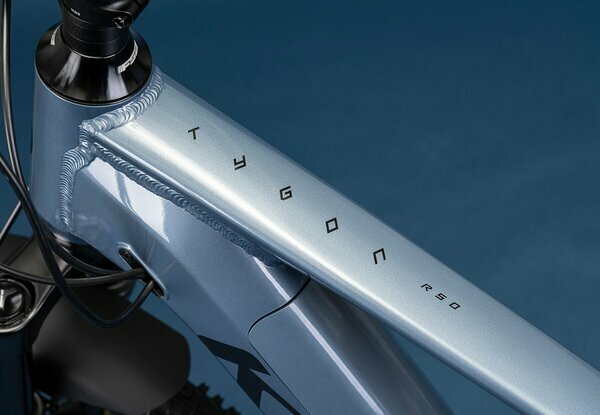

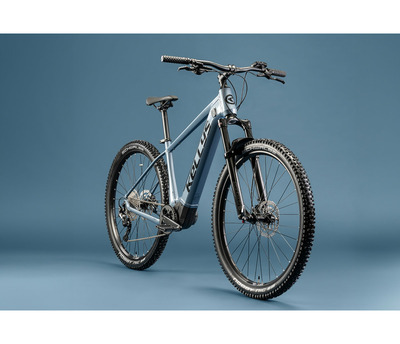

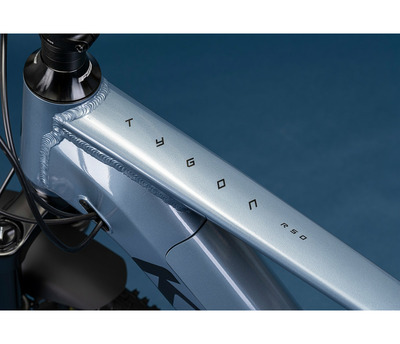

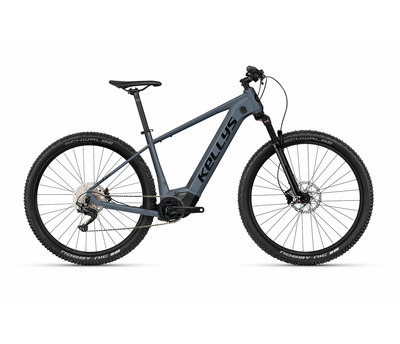

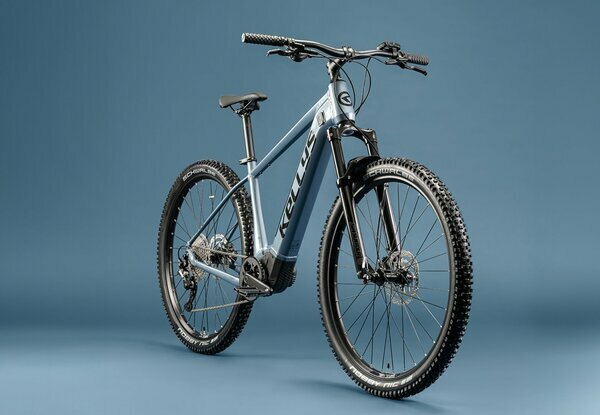

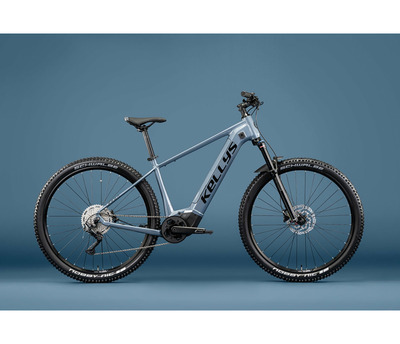

frame KELLYS TYGON R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5" tapered HT, 12x148 mm Boost thru axle
fork SR SUNTOUR Raidon 34 LOR DS (29") Boost, 120 mm, air / 15 mm thru axle
frame size M / L / XL
Drive

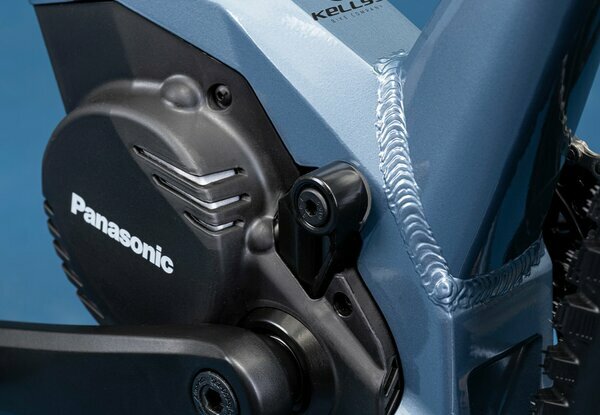

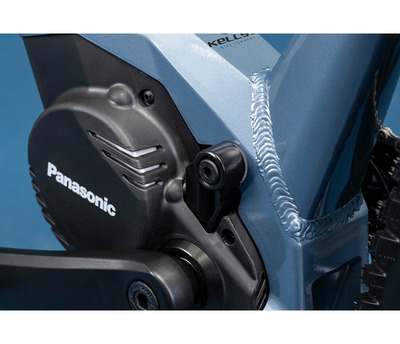

motor PANASONIC GX Ultimate, 95 Nm, 36 V
battery KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by Kellys-BMZ
switch unit PANASONIC

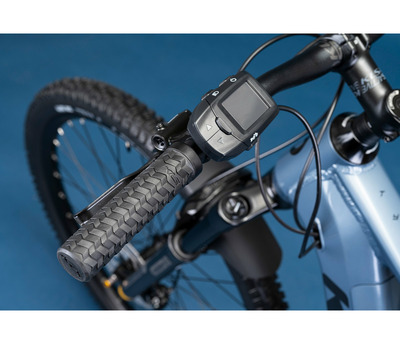

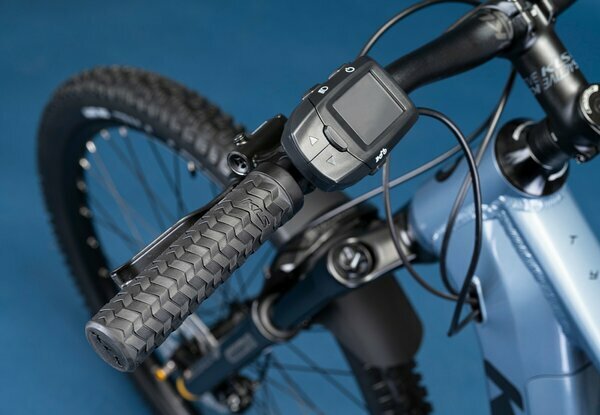

computer display PANASONIC Bluetooth® 5.0 navigation Side Color Display
crankset SAMOX (34T) - length 170 mm
rear derailleur SHIMANO Deore M5120 (direct mount)
shifters SHIMANO Deore SL-M4100-R Rapidfire Plus (I-Spec EV)
speed 10
cassette sprocket SHIMANO CS-M4100-10 (11-46T)
chain KMC e10T (116 links)
pedals plastic
Brakes
brakes SHIMANO MT200 Hydraulic Disc
brake levers SHIMANO BL-MT200
brake rotors 180 mm front / 180 mm rear
Wheels
hubs SHIMANO MT400-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims KLS Valor 3 Disc 622x30 (32 holes)
spokes stainless steel black
tyres SCHWALBE Nobby Nic Performance 60-622 (29"x2.40) ADDIX, folding
thru axle SR SUNTOUR 15x110 mm front / NOVATEC 12x181 mm rear
Cockpit
head parts FSA 1.5 semi-integrated
stem KLS Active - diam 28.6 mm / bar bore 31.8 mm / 6° / length 80 mm
handlebar KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 720 mm
grips KLS Poison OneLockon
seat post KLS Active - diam 30.9 mm / length 350 mm
saddle SELLE ROYAL Vivo
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
