Frame set
frame KELLYS THEOS F100 Carbon-Aramid Composite / Designed & manufactured in EUROPE / Think Link® suspension system, 140 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29/27.5"+ wheelset, 12x148 mm Boost thru axle
fork ROCK SHOX Domain R (29") Boost, 150 mm, DebonAir / Motion Control / Maxle Stealth 15 mm thru axle
rear shock ROCK SHOX Super Deluxe Select+ RT, DebonAir+ / Open-Threshold (210x55 mm)
frame size M / L
Drive

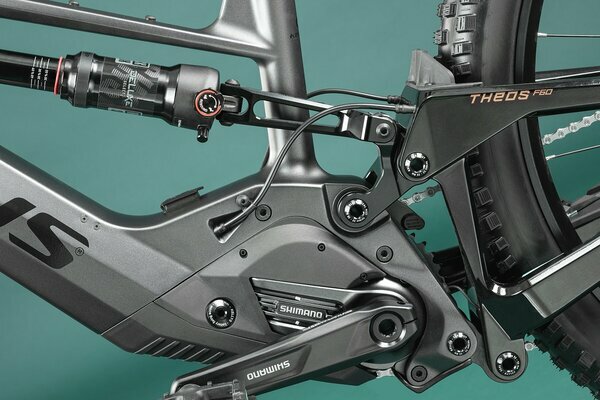

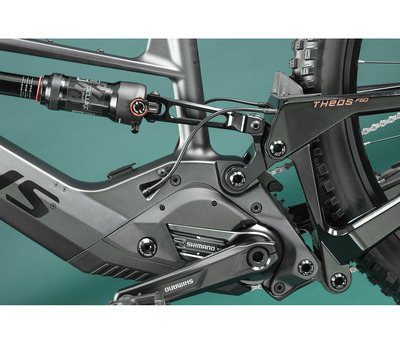

motor SHIMANO EP801, 85 Nm, 36 V
battery KELLYS Re-Charge K1 Li-ion internal removable 820 Wh / capacity 23 Ah, co-developed by Kellys-BMZ
computer display SHIMANO SC-EN500 cycle computer with assist switch
crankset SHIMANO EP6 EM600 / CRE70-B (34T) - length 170 mm
rear derailleur SHIMANO Deore XT Linkglide M8130 (direct mount)
shifters SHIMANO Deore XT Linkglide SL-M8130-R Rapidfire Plus (I-Spec EV)
speed 11
cassette sprocket SHIMANO Linkglide CS-LG600-11 (11-50T)
chain SHIMANO Linkglide CN-LG500 (122 links)
Brakes
brakes SHIMANO Deore M6120 Hydraulic Disc
brake levers SHIMANO Deore BL-M6100

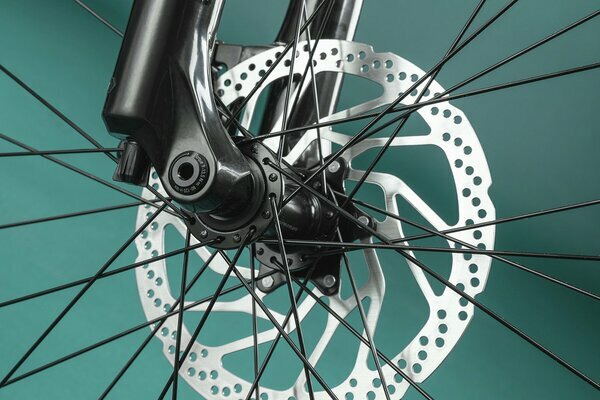

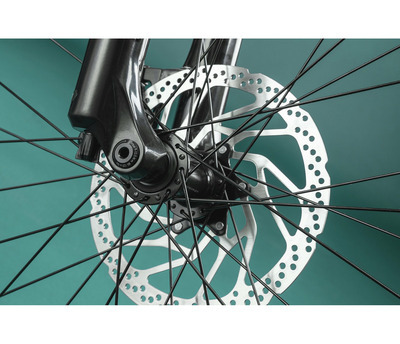

brake rotors SHIMANO RT64 220 mm front / SHIMANO EM300 203 mm rear
Wheels
hubs SHIMANO MT400-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims KLS Bender Disc 622x38 front / 584x38 rear (32 holes)
spokes stainless steel black
thru axle ROCK SHOX Maxle Stealth 15x110 mm front / Mr.control 12x177 mm rear
rear tyre SCHWALBE Big Betty Evo Super Trail 65-584 (27.5x2.60) Tubeless Easy, ADDIX Soft, folding
front tyre SCHWALBE Magic Mary Evo Super Trail 62-622 (29x2.40) Tubeless Easy, ADDIX Ultra Soft, folding
Cockpit
head parts ACROS 1.8 tapered semi-integrated
stem KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / length 60 mm
handlebar KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / width 780 mm
grips KLS Poison OneLockon
seat post LIMOTEC A1 Remote Telescopic - diam 30.9 mm / length 445 mm, travel 150 mm

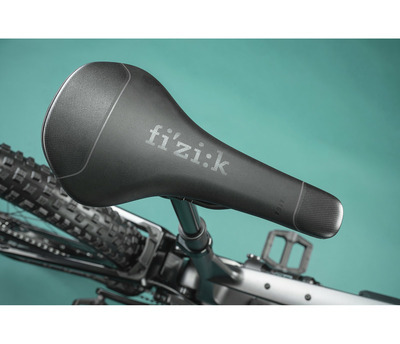

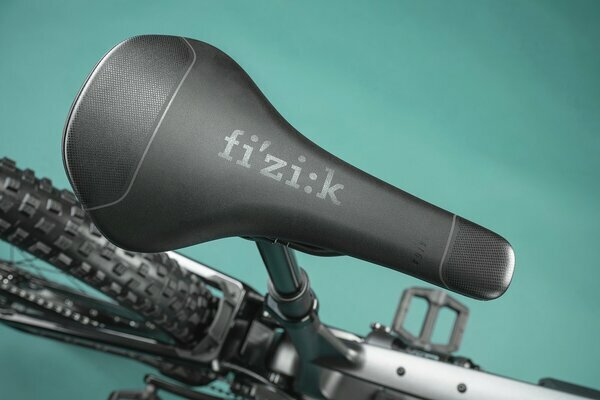

saddle fi’zi:k Taiga, S-alloy rails
