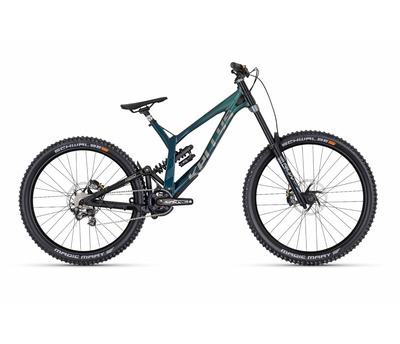

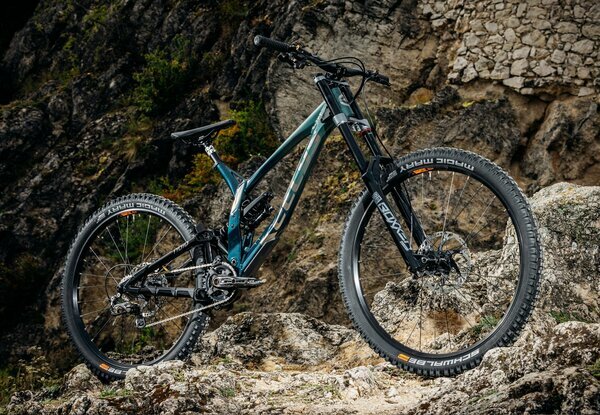

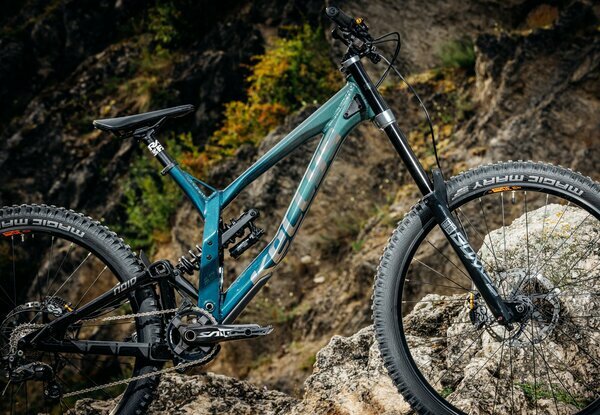

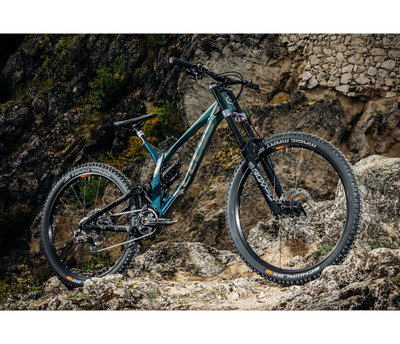

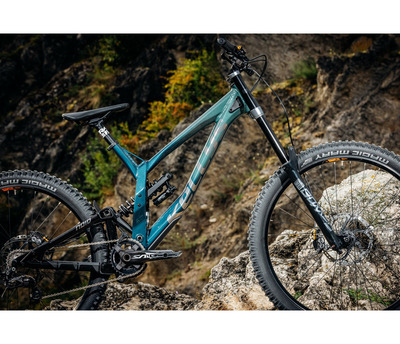

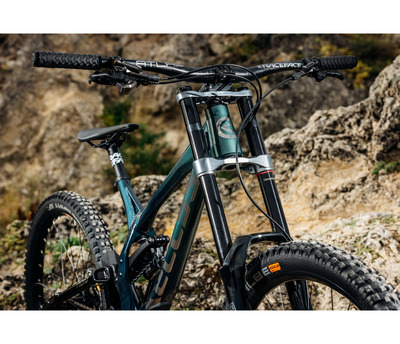

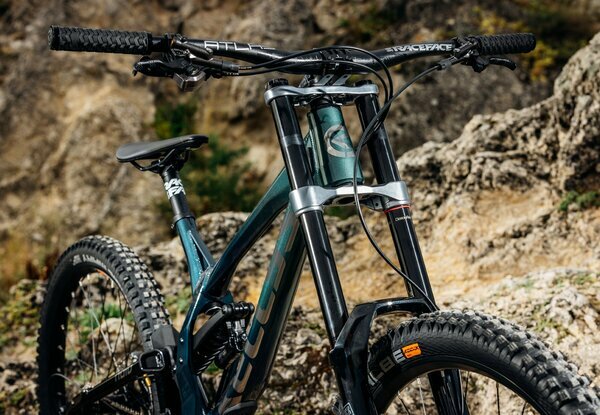

NOID 90 EMERALD GREEN 29/27.5"
Downhill bike
Frame set

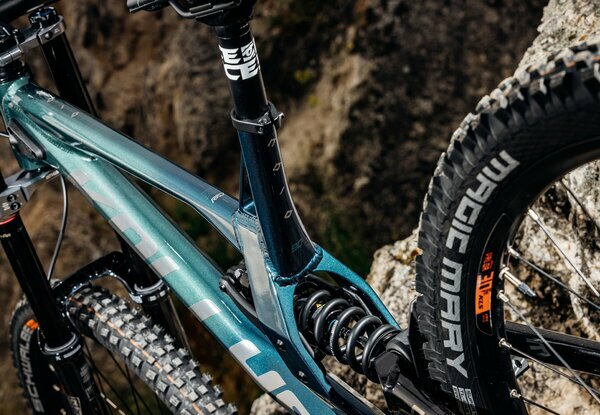

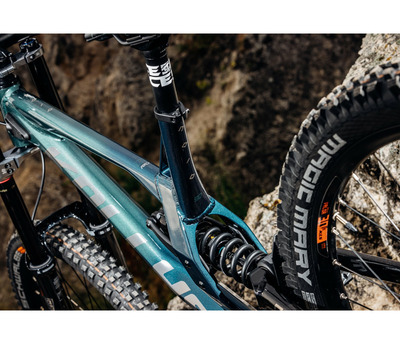

frame KELLYS Gravity DH / Think Link® suspension system, 205 mm rear travel, tapered HT, internal routing, ISCG 05, mullet 29" / 27.5" wheelset, 12x150 mm thru axle
fork ROCK SHOX BoXXer Ultimate (29") Boost, 200 mm, DebonAir / Charger 2 RC2 / Maxle Stealth 20 mm thru axle

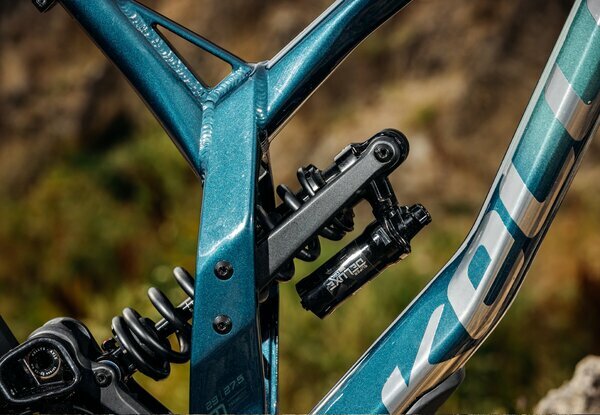

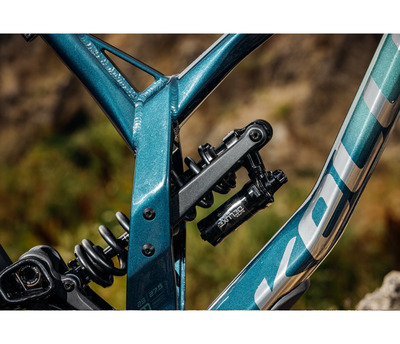

rear shock ROCK SHOX Super Deluxe Coil Ultimate DH RC2 / Open-Threshold (250x75 mm)
frame size M / L
Drive
crankset SHIMANO Saint M825 Hollowtech II (34T) - length 165 mm
rear derailleur SHIMANO Saint M820 (direct mount)
front derailleur
chain guide Mozartt HXR, ISCG 05
shifters SHIMANO Saint SL-M820 Rapidfire Plus
speed 10
cassette sprocket SHIMANO CS-HG500-10 (11-25T)
chain KMC X10 EL (104 links)
b.b.parts SHIMANO Press-Fit BB71-41A
pedals plastic
Brakes
brakes SHIMANO Deore XT M8120 Hydraulic Disc
brake levers SHIMANO Deore XT BL-M8100
brake rotors 203 mm front / 203 mm rear
Wheels
hubs NOVATEC DH Disc (20x110 mm / 12x150 mm / 32 holes)
rims MAVIC EX 1028 Disc (622x28 front / 584x28 rear / 32 holes)
spokes stainless steel black
thru axle ROCK SHOX Maxle Stealth 20x110 mm front / Mr.control 12x180 mm rear
front tyre SCHWALBE Magic Mary 60-622 (29"x2.35) SnakeSkin, Tubeless Easy, ADDIX Soft, folding
rear tyre SCHWALBE Magic Mary 60-584 (27.5"x2.35) SnakeSkin, Tubeless Easy, ADDIX Soft, folding
Cockpit
head parts 1.5 semi-integrated
stem RACE FACE Atlas 35 DM - direct mount / bar bore 35 mm / lenght 50
handlebar RACE FACE Atlas 35 RiseBar - diam 35 mm / rise 20 mm / width 820 mm
grips KLS Poison
seat post RACE FACE Chester - diam 30.9 mm / length 325 mm
saddle fi’zi:k Taiga, S-alloy rails
