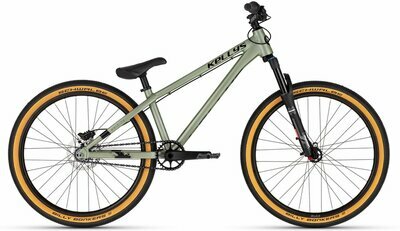

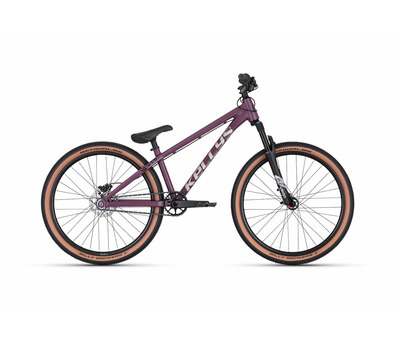

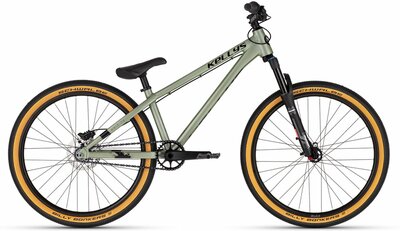

WHIP 70
Dirt bike
Frame set
frame KELLYS Dirt 26", tapered HT, single-speed
fork X-FUSION Slant RC (26"), 100 mm, air / RC Damper / LockX 15 mm thru axle
frame size M / L
Drive
crankset SAMOX (32T) - length 170 mm
speed 1
freewheel
single speed 15T
chain KMC Z1 (86 links)
b.b.parts SAMOX cartridge
pedals thermoplastic platform
Brakes
brakes SHIMANO MT500 Hydraulic Disc rear
brake levers SHIMANO BL-MT501
brake rotors 160 mm rear
Wheels
hubs KT Disc (15x100 mm) / KT Disc single-speed (32 holes)
rims KLS Brave Disc 559x23 (32 holes)
spokes stainless steel black
tyres SCHWALBE Billy Bonkers 54-559 (26"x2.10) K-Guard, Bronze Sidewall
thru axle X-FUSION Lock-X 15x100 mm front
Cockpit
head parts FSA 1.5 integrated
stem RACE FACE Chester 35 - diam 28.6 mm / bar bore 35 mm / 0° / length 40 mm
handlebar RACE FACE Chester RiseBar - diam 35 mm / rise 35 mm / width 780 mm
grips dirt
seat post BMX Pivotal - diam 30.9 mm / length 200 mm
saddle VELO Pivotal
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
