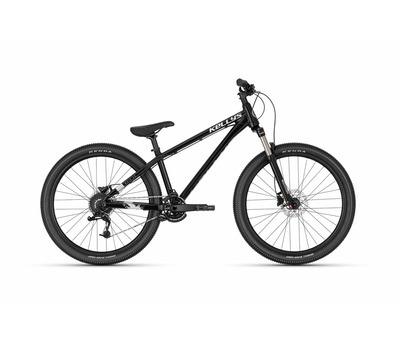

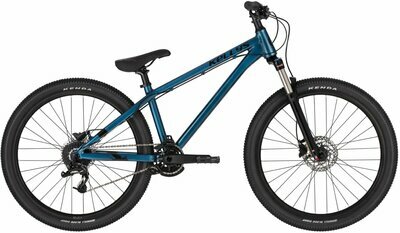

WHIP 50
Dirt bike
Frame set
frame KELLYS Dirt 26, tapered HT, ISCG 05
fork SR SUNTOUR XCR32 Coil LOR DS (26), 100 mm, coil / Speed Lockout
frame size M / L
Drive
crankset SANOX (32T) - length 170 mm
rear derailleur SRAM X4
front derailleur
chain guide MOZARTT Presto, ISCG 05
shifters SRAM X5 9-Speed Trigger
speed 9
freewheel
SHIMANO CS-HG200-9 (11-34T)
chain KMC X9 (102 links)
b.b.parts SAMOX cartridge
pedals KLS Flat - plastic platform
Brakes
brakes SHIMANO MT200 Hydraulic Disc
brake levers SHIMANO BL-MT200
brake rotors 160 mm front / 160 mm rear
Wheels
hubs KLS Firework Disc (32 holes)
rims KLS Brave Disc 559x23 (32 holes)
spokes stainless steel black
tyres KENDA Small Block Eight 58-559 (26x2.35)
Cockpit
head parts semi-integrated
stem KLS Active - diam 28.6 mm / bar bore 31.8 mm / length 40 mm
handlebar KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 38 mm / width 740 mm
grips kraton
seat post KLS Active - diam 30.9 mm / length 300 mm (S - M)
saddle KLS Vader
