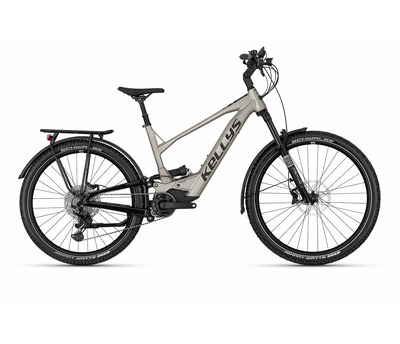

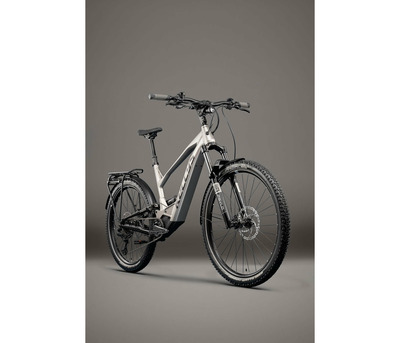

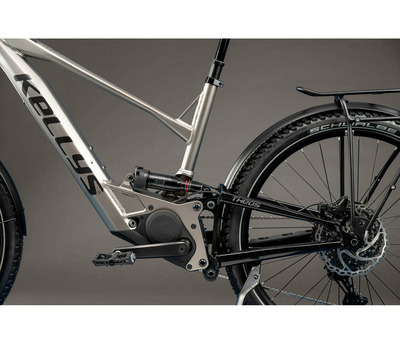

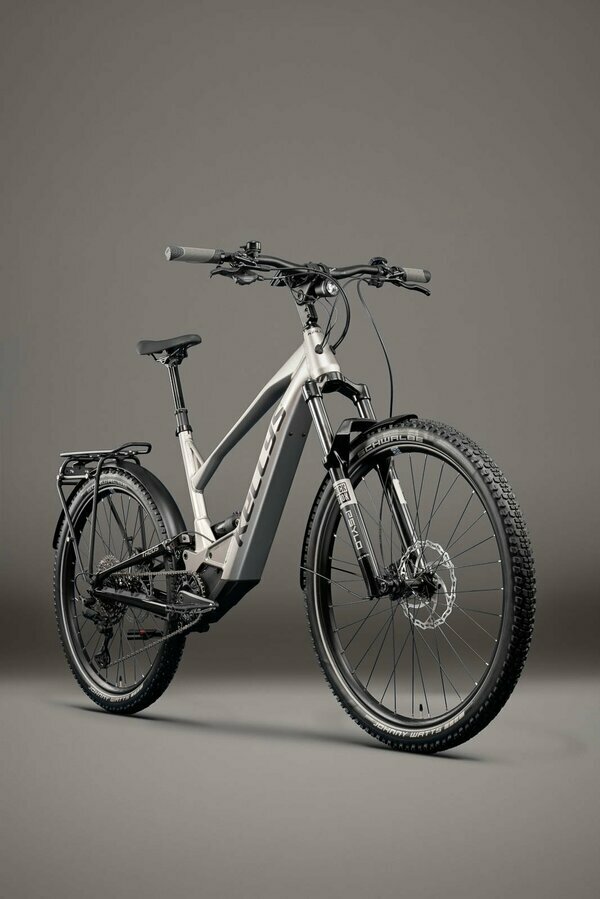

THEOS RSX70
P TITANIUM 29/27.5" 820 Wh
New
4 699,00 €*
* Manufacturer's recommended retail price
-
EAN: 8585053855552

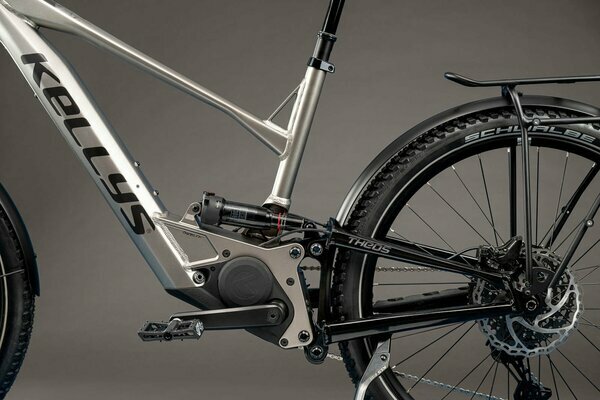

Frame set
frame
KELLYS THEOS RSX-series - Superlight design, advanced robotic welded Al 6061-T6 / Designed & manufactured in EUROPE / Think Link® suspension system, 120 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29 / 27.5"+ wheelset, 12x148 mm Boost thru axle
fork
ROCK SHOX Psylo Silver RC (29") Boost, 140 mm, Solo Air / Motion Control / Maxle Stealth 15 mm thru axle

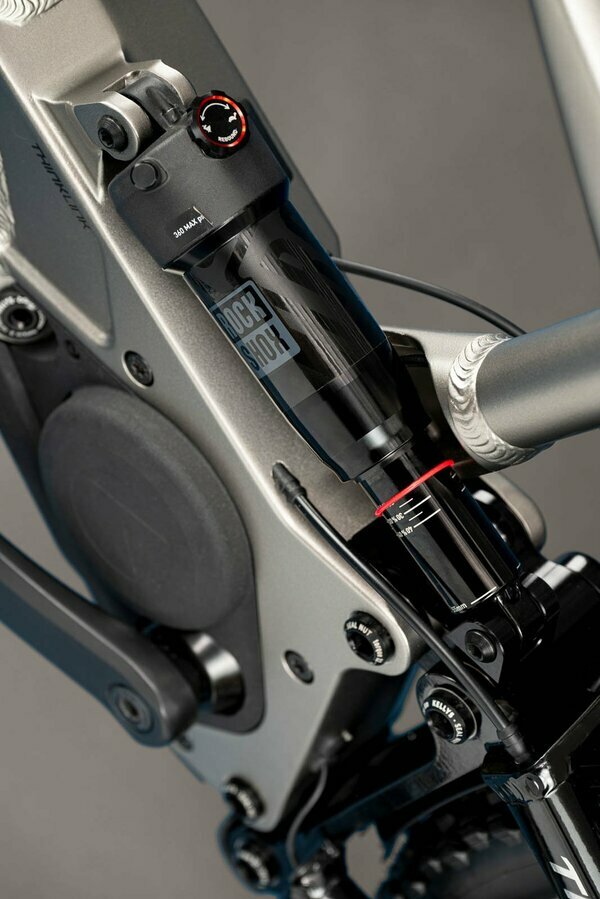

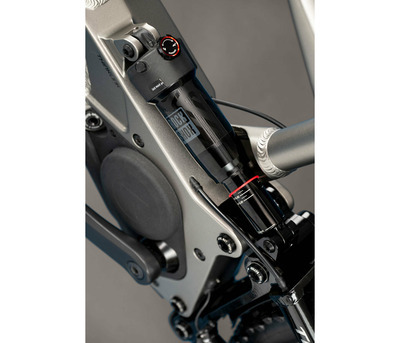

rear shock
ROCK SHOX Deluxe Select, DebonAir+ / R damper (210x55 mm)
frame size
M / L
Drive
motor
PANASONIC GXM AMXXPRO - Compact, High Torque & Low weight drive unit, max torque 105 Nm, weight 2.56 kg
battery
KELLYS K2 AMXXPRO CARBON 820 Wh - superhigh energy density 236 Wh/kg, weight 3.48 kg, capacity 23 Ah, co-developed by KELLYS-BMZ

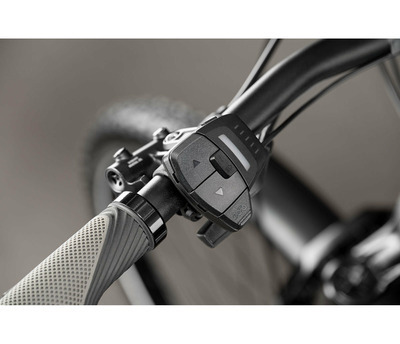

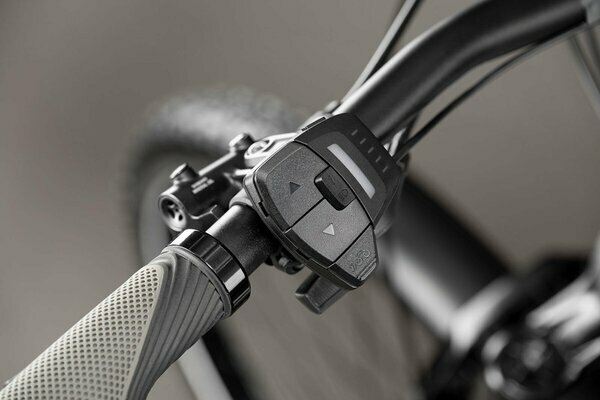

switch unit
PANASONIC

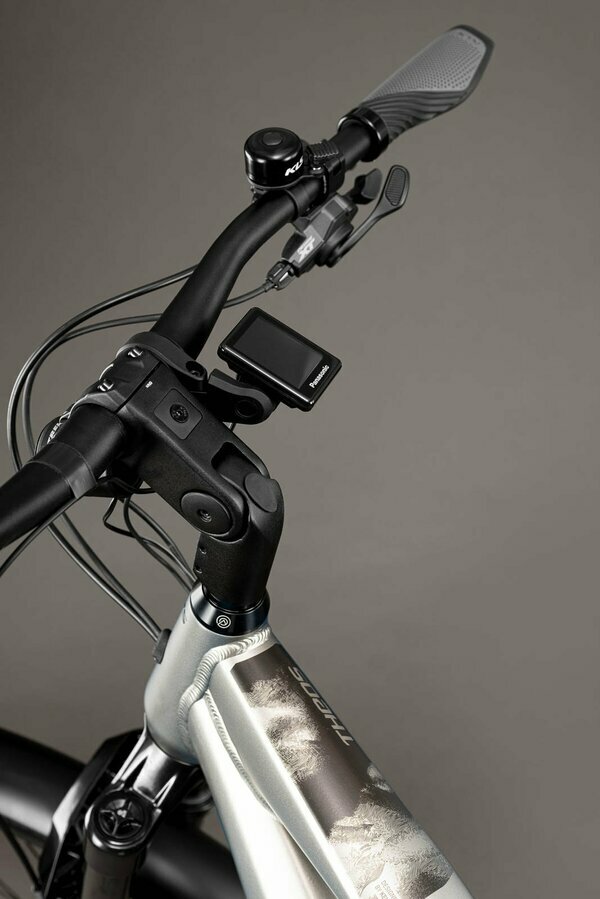

computer display
PANASONIC GXM Center Display 501 - Bluetooth® 5.0 navigation, PANASONIC App conectivity
crankset
MIRANDA Miranda (34T) - length 170 mm

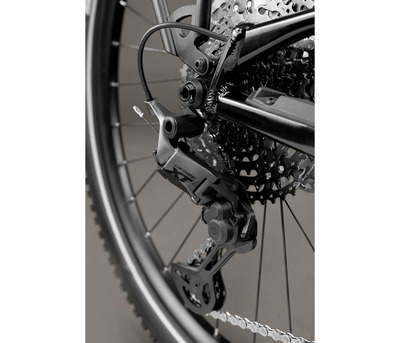

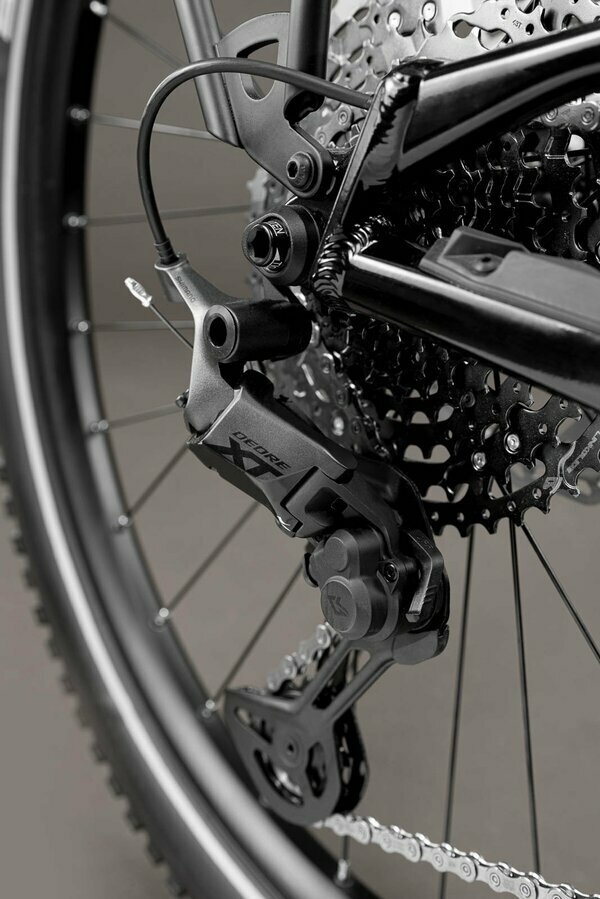

rear derailleur
SHIMANO Deore XT Linkglide M8130 (direct mount)
shifters
SHIMANO Deore XT Linkglide SL-M8130-R Rapidfire Plus (I-Spec EV)
speed
11
cassette sprocket
SHIMANO Linkglide CS-LG400-11 (11-50T)
chain
SHIMANO Linkglide CN-LG500
pedals
plastic
Brakes
brakes
SHIMANO MT420 Hydraulic Disc
brake levers
SHIMANO BL-M4100
brake rotors
GALFER Fixed Disc Wave® DB034W Center Lock, 203 mm front / 203 mm rear
Wheels
hubs
SHIMANO TC500-15-B / TC500-HM-B Disc Center Lock (32 holes)
rims
KLS Asesino 30 Disc 622x30 / 584x30 (32 holes)
spokes
stainless steel black
thru axle
predná ROCK SHOX Maxle Stealth 15x110 mm
fenders
aluminium alloy
rear tyre
SCHWALBE Johny Watts Performance 60-584 (27.5"x2.35) Race Guard, ADDIX, folding
front tyre
SCHWALBE Johny Watts Performance 60-622 (29"x2.35) Race Guard, ADDIX, folding
Cockpit
head parts
ACROS 1.8" tapered semi-integrated
stem
SATORI FASTBACK a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 50 mm

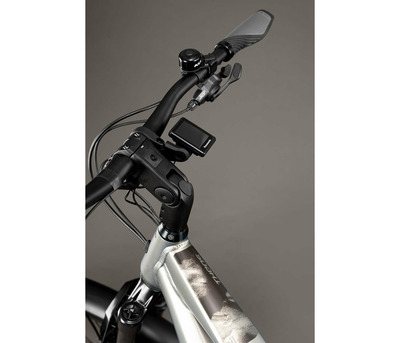

handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 760 mm
grips
KLS Wave LockOn 2Density ergonomic

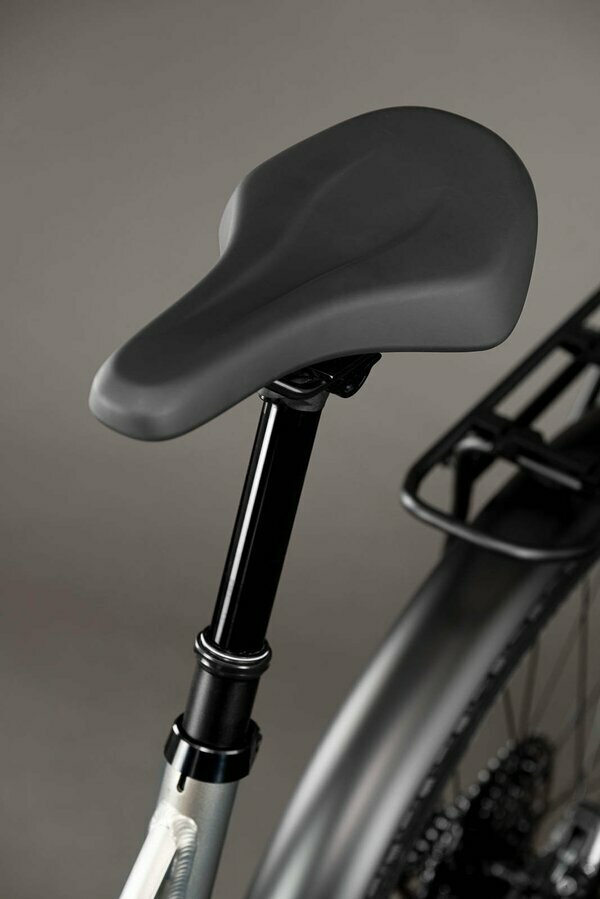

seat post

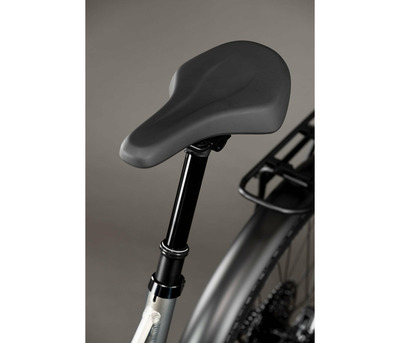

LIMOTEC D1 Remote Telescopic - diam 30.9 mm / length 445 mm, travel 170 mm
saddle
SELLE ROYAL SRX+
front light
TRELOCK BIKE-i Airflow 100
rear light
TRELOCK Duo Flat
accessories

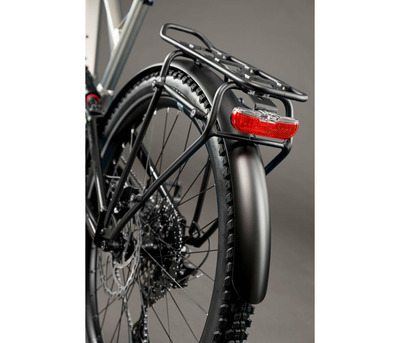

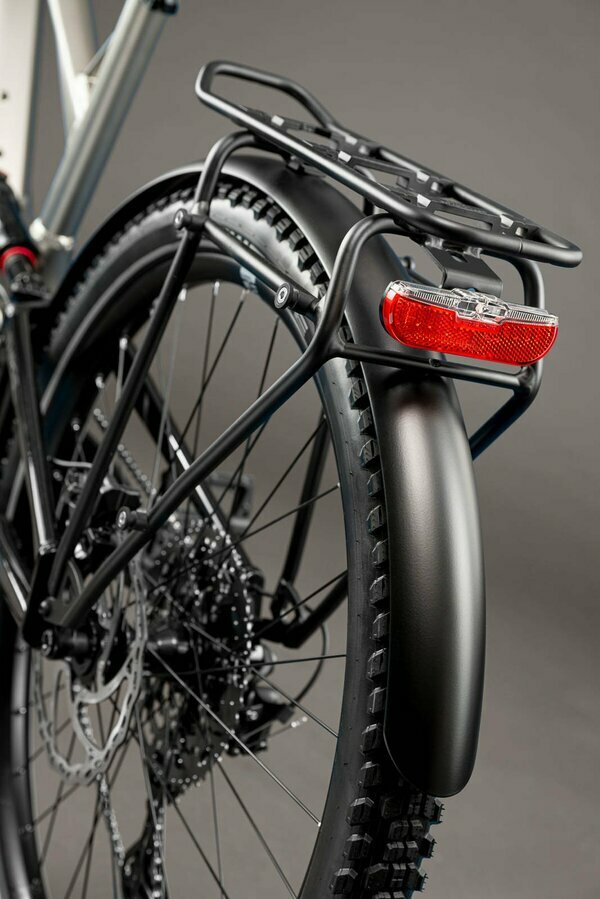

alloy carrier, chainglider, adjustable kickstand, bell
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
