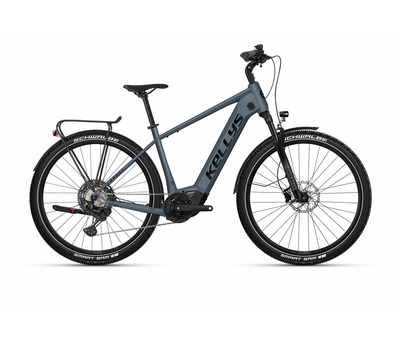

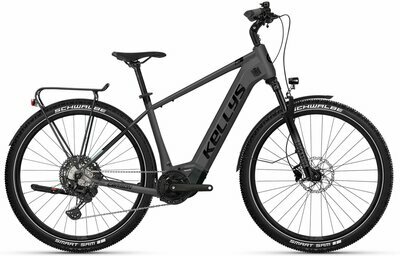

E-CARSON 90 P ATB 725 Wh
Trekking electric bike
2 999,00 €*
Launch price: 3 799,00 €
* Manufacturer's recommended retail price
-
EAN: 8585053829379
Frame set
frame KELLYS E-CARSON R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5“ tapered HT
fork ROCK SHOX Recon GOLD RL (29") Boost, 100 mm, DebonAir / Motion Control / Maxle Stealth 15 mm thru axle
frame size M / L
Drive
motor PANASONIC GX Ultimate, 95 Nm, 36 V
battery KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ
switch unit PANASONIC
computer display PANASONIC Bluetooth® 5.0 navigation Side Color Display
crankset MIRANDA Delta (36T) - length 170 mm
rear derailleur SHIMANO Deore XT Linkglide M8130 (direct mount)
shifters SHIMANO Deore XT Linkglide SL-M8130-R Rapidfire Plus (I-Spec EV)
speed 11
cassette sprocket SHIMANO Linkglide SC-LG600-11 (11-50T)
chain SHIMANO Linkglide CN-LG500
pedals plastic
Brakes
brakes SHIMANO MT410 hydraulic disc
brake levers SHIMANO BL-MT4100
brake rotors 180 mm front / 180 mm rear
Wheels
hubs SHIMANO MT400-B / Alivio M4050 Disc Center Lock (32 holes)
rims KLS Valor 3 Disc 622x30 (32 holes)
spokes stainless steel black
tyres SCHWALBE Smart Sam Performance 57-622 (29"x2.25) ADDIX, ReflectiveLine
thru axle predná ROCK SHOX Maxle Stealth 15x110 mm
fenders
aluminium
Cockpit
head parts FSA 1.5 semi-integrated
stem PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 105 mm
handlebar KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 700 mm
grips KLS Wave 2Density ergonomic
seat post KLS Active - diam 30.9 mm / length 350 mm
saddle SELLE ROYAL Vivo
front light
TRELOCK Veo 50
rear light
TRELOCK Duo Flat
accessories
alloy carrier, adjustable kickstand, bell
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
