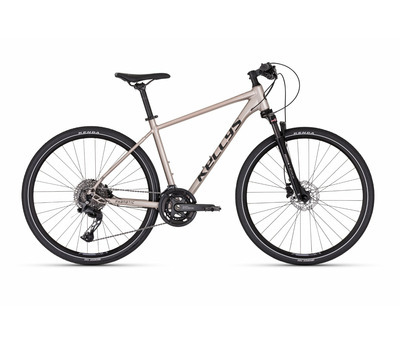

PHANATIC 80 SAND
Cross bike
Frame set
frame KELLYS Crossforce Lite - tapered HT, internal routing, integrated kickstand mount
fork SR SUNTOUR NCX-D Air RL DS, 63 mm, air / Remote Speed Lockout
frame size S / M / L
Drive
crankset SHIMANO Cues U6010-2 Hollowtech II (46x32T) - length 170 mm (S), 175 mm (M - L)
rear derailleur SHIMANO Cues U6020-11 (direct mount)
front derailleur
SHIMANO Cues U8010-L (34.9 mm)
shifters SHIMANO Cues SL-U6000-11R Rapidfire Plus
speed 22
cassette sprocket SHIMANO Linkglide CS-LG400-11 (11-45T)
chain SHIMANO Linkglide CN-LG500 (114 links)
b.b.parts SHIMANO BB-MT501
pedals alloy
Brakes
brakes SHIMANO MT500 Hydraulic Disc
brake levers SHIMANO BL-MT501
brake rotors 160 mm front / 160 mm rear
Wheels
hubs SHIMANO TX505 Disc Center Lock (32 holes)
rims KLS Draft Disc 622x21 (32 holes / eyelets)
spokes stainless steel black
tyres SCHWALBE CX Comp 40-622 (700x38C) K-Guard, ReflectiveLine
Cockpit
head parts semi-integrated
stem KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 7° / length 90 mm
handlebar KLS Advanced FlatBar - diam 31.8 mm / width 640 mm (S - M), 660 mm (L)
grips KLS Token 2Density
seat post KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - L)
saddle KLS
