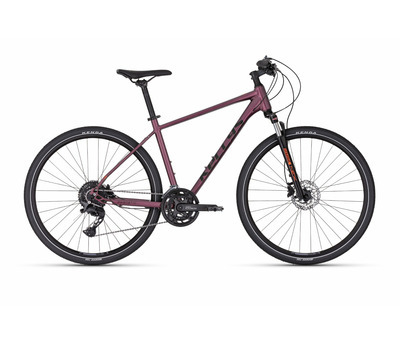

PHANATIC 30 DARK PLUM
Cross bike
Frame set
frame KELLYS Crossforce Lite - tapered HT, internal routing, integrated kickstand mount
fork SR SUNTOUR NEX RL DS, 63 mm, air / Remote Speed Lockout
frame size M / L
Drive
crankset SHIMANO Cues U4010-2 (46x30T) - length 175 mm
rear derailleur SHIMANO Cues U3020 (direct mount)
front derailleur
SHIMANO Cues U4010-L (34.9 mm)
shifters SHIMANO Cues SL-U4010-9R Rapidfire Plus
speed 18
cassette sprocket SHIMANO Linkglide CS-LG300-9 (11-36T)
chain SHIMANO Linkglide CN-LG500 (114 links)
b.b.parts SHIMANO BB-UR400
pedals alloy
Brakes
brakes SHIMANO MT200 Hydraulic Disc
brake levers SHIMANO BL-MT200
brake rotors 160 mm front / 160 mm rear
Wheels
hubs SHIMANO TX505 Disc Center Lock (32 holes)
rims KLS Draft Disc 622x21 (32 holes / eyelets)
spokes stainless steel black
tyres SCHWALBE CX Comp 40-622 (700x38C) K-Guard, ReflectiveLine
Cockpit
head parts semi-integrated
stem KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 7° / length 90 mm
handlebar KLS CRX 70 RiseBar - diam 31.8 mm / rise 25 mm / width 640 mm (M), 660 mm (L)
grips KLS Token 2Density
seat post KLS Active - diam 30.9 mm / length 400 mm
saddle KLS
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
