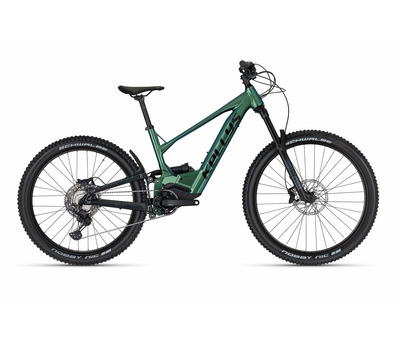

THEOS R50 LTD P MAGIC GREEN 29/27.5" 725 Wh
Full-suspension electric mountain bike
3 599,00 €*
Launch price: 3 899,00 €
* Manufacturer's recommended retail price
-
Out of stock
-
EAN: 8585053847403
Frame set
frame KELLYS THEOS R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / Think Link® suspension system, 130 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29" / 27.5"+ wheelset, 12x148 mm Boost thru axle
fork ROCK SHOX Recon Silver RL (29") Boost, 150 mm, SOLO Air+/ Maxle Stealth 15 mm thru axle
rear shock ROCK SHOX Deluxe Select+ R, LinearAir+ (210x55 mm)
frame size S / M / L
Drive
motor PANASONIC GX Ultimate, 95 Nm, 36 V
battery KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by KELLYS-BMZ
switch unit PANASONIC
computer display PANASONIC Bluetooth® 5.0 navigation Side Color Display
crankset MIRANDA Miranda (34T) - length 170 mm
rear derailleur SHIMANO Cues U4000 (direct mount)
shifters SHIMANO Cues U4010-9 Rapidfire Plus
speed 9
cassette sprocket SHIMANO Linkglide CS-LG300-9 (11-46T)
chain SHIMANO Linkglide CN-LG500 (122 links)
Brakes
brakes SHIMANO MT200 Hydraulic Disc
brake levers SHIMANO BL-MT200
brake rotors SHIMANO RT10 180 mm front / RT10 180 mm rear
Wheels
hubs SHIMANO TC500-B / Deore TC500-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims KLS Asesino 30 Disc 622x30 / 584x30 (32 holes)
thru axle ROCK SHOX Maxle Stealth 15x110 mm front / Mr. Control 12x177 mm rear
front tyre SCHWALBE Nobby Nic 62-622 (29"x2.40) ADDIX
rear tyre SCHWALBE Nobby Nic 62-584 (27.5"x2.40) ADDIX
Cockpit
head parts ACROS 1.8 tapered semi-integrated
stem KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / length 60 mm
handlebar KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / width 780 mm
grips KLS Poison OneLockon
seat post KLS Active - diam 30.9 mm / length 350 mm
saddle SELLE ROYAL SRX
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
