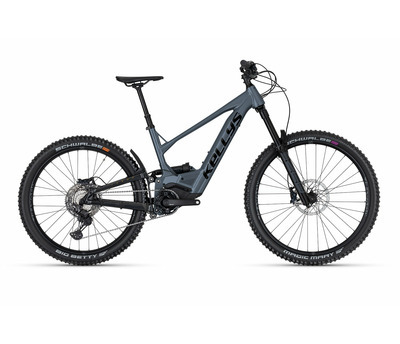

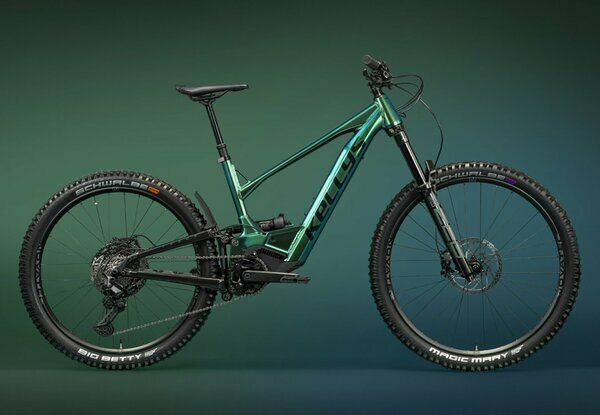

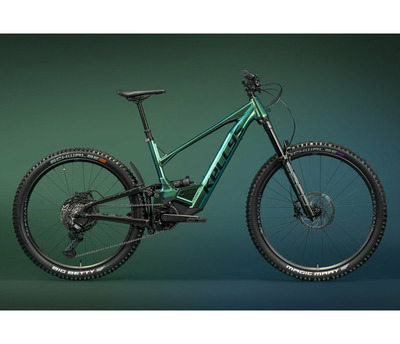

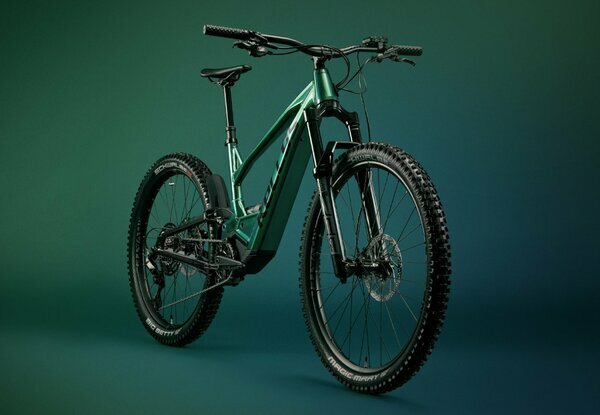

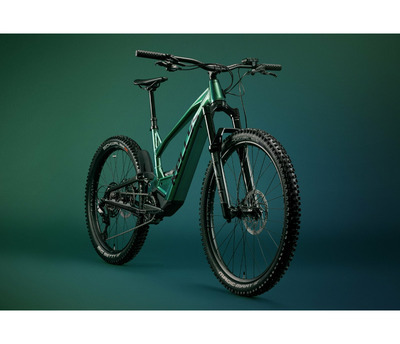

THEOS R50 P STEEL BLUE 29/27.5" 725 Wh
Full-suspension electric mountain bike
4 199,00 €*
Launch price: 5 799,00 €
* Manufacturer's recommended retail price
-
EAN: 8585053828938
Frame set

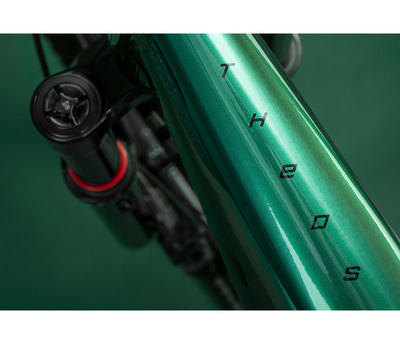

frame KELLYS THEOS R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / Think Link® suspension system, 130 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29" / 27.5"+ wheelset, 12x148 mm Boost thru axle
fork ROCK SHOX Zeb Select (29") Boost, 150 mm, DebonAir+ / Charger RC / Maxle Stealth 15 mm thru axle
rear shock ROCK SHOX Deluxe Select+ RT, DebonAir+ / Open-Threshold (210x55 mm)
frame size S / M / L
Drive

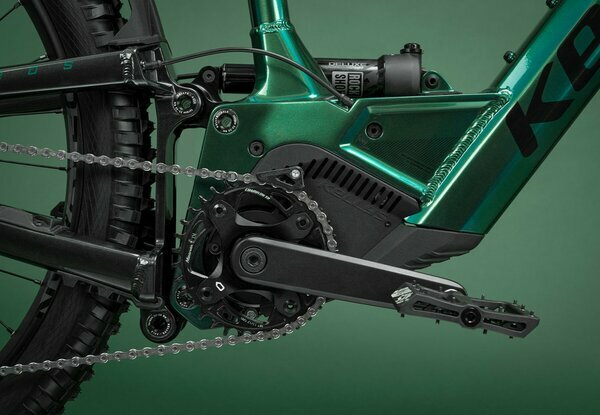

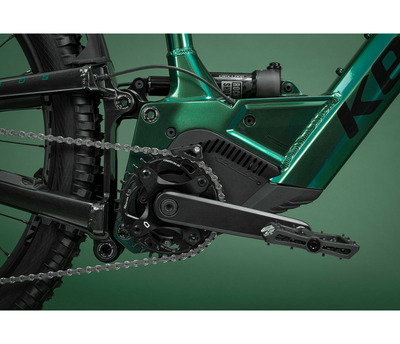

motor PANASONIC GX Ultimate, 95 Nm, 36 V
battery KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by Kellys-BMZ
switch unit PANASONIC

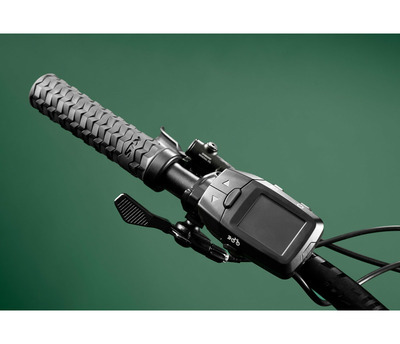

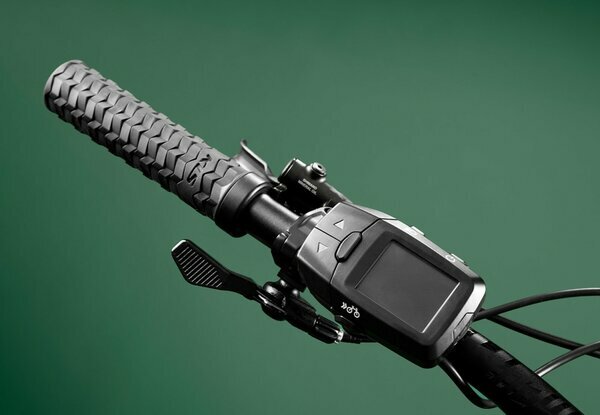

computer display PANASONIC Bluetooth® 5.0 navigation Side Color Display
crankset MIRANDA Miranda (34T) - length 170 mm
rear derailleur SHIMANO Deore XT Linkglide M8130 (direct mount)
shifters SHIMANO Deore XT Linkglide SL-M8130-R Rapidfire Plus (I-Spec EV)
speed 11
cassette sprocket SHIMANO Linkglide CS-LG600-11 (11-50T)
chain SHIMANO Linkglide CN-LG500
Brakes
brakes SHIMANO SLX M7120 Hydraulic Disc
brake levers SHIMANO SLX BL-M7100
brake rotors SHIMANO RT30 203 mm front / EM300 203 mm rear
Wheels
wheel set NOVATEC M30 622x30 front / NOVATEC M35 584x35 Center Lock rear (15x110 mm / 12x148 mm)
thru axle ROCK SHOX Maxle Stealth 15x110 mm front / Mr. Control 12x177 mm rear
rear tyre SCHWALBE Big Betty Evo Super Trail 65-584 (27.5"x2.60) Tubeless Easy, ADDIX Soft, folding
front tyre SCHWALBE Magic Mary Evo Super Trail 62-622 (29"x2.40) Tubeless Easy, ADDIX Ultra Soft, folding
Cockpit
head parts ACROS 1.8 tapered semi-integrated
stem KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / length 60 mm
handlebar KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / width 780 mm
grips KLS Poison OneLockon
seat post LIMOTEC A1 Remote Telescopic - diam 30.9 mm / length 445 mm, travel 150 mm
saddle fi’zi:k Taiga, S-alloy rails
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
