Rahmensatz

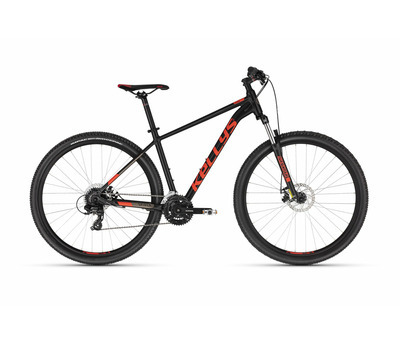

Rahmen KELLYS Alutec RRC 27.5 - Race Ready Concept
Gabel SR SUNTOUR XCE28 (27.5), 100 mm, coil spring
Rahmengrössen S / M
Drive
Kurbelgarnitur SHIMANO TY301 (42x34x24T) - length 170 mm (S), 175 mm (M)
Schaltwerk SHIMANO TX800 (direct mount)
Umwerfer
SHIMANO TY700 (34.9 mm)
Schalthebel SHIMANO ST-EF510-8 EZ-fire Plus
Gänge 24
Kassetenzahnkranz SHIMANO CS-HG200-8 (11-32T)
Kette KMC Z8 (108 links)
Innenlager cartridge (122 mm)
Pedale alloy
Freins
Bremsen Mechanical Disc
Bremshebel SHIMANO ST-EF510 EZ-fire Plus
Bremsscheiben 160 mm front / 160 mm rear
Räder
Naben KLS Firework Disc (32 holes)
Felgen KLS Draft Disc 584x21 (32 holes)
Speichen steel
Reifen IMPAC Ridgepac 54-584 (27.5x2.10)
Cockpit
Steuersatz v
Vorbau KLS Active - diam 28.6 mm / bar bore 31.8 mm / 8° / length 75 mm
Lenker KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 660 mm (S), 680 mm (M)
Griffe KLS Advancer
Sattelstütze KLS Active - diam 30.9 mm / length 300 mm (S - M)
Sattel KLS Sentinel 2
