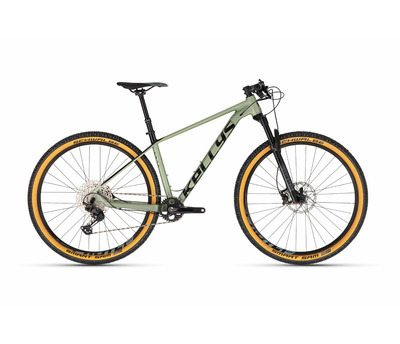

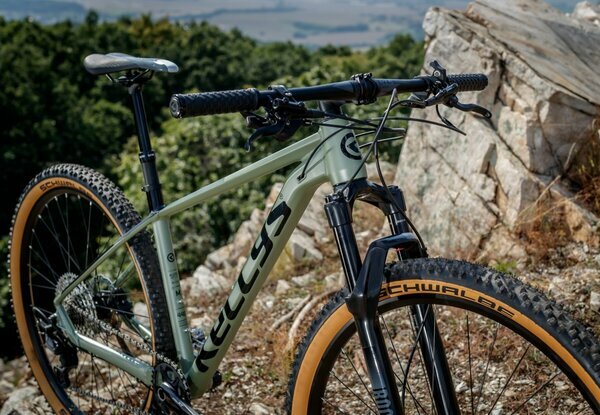

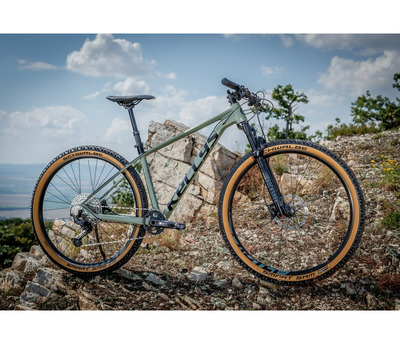

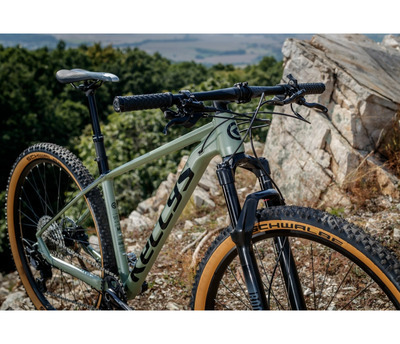

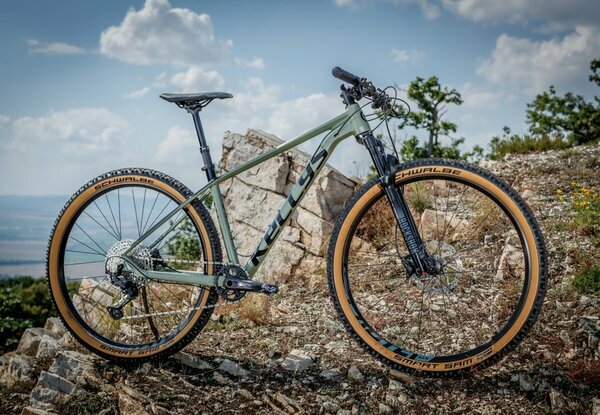

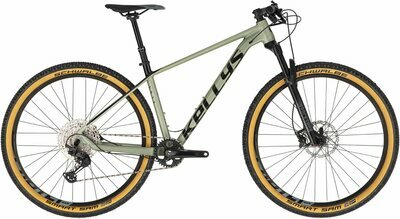

GATE 90 29"

Rahmensatz

Rahmen
KELLYS Dynamic RRC 29, tapered HT, internal routing, 12x148 mm Boost thru axle
Gabel
ROCK SHOX Recon GOLD RL (29) Boost, 100 mm, DebonAir / Motion Control / OneLoc Remote Lockout / Maxle Lite 15 mm thru axle
Rahmengrössen
M / L

Drive

Kurbelgarnitur
SHIMANO Deore XT M8100-1 Hollowtech II (34T) - length 175 mm

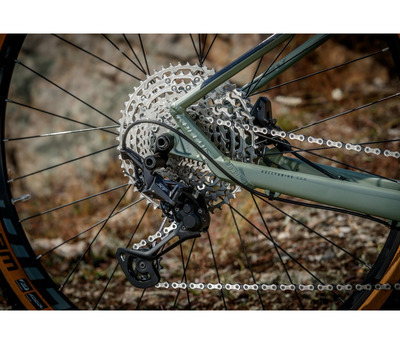

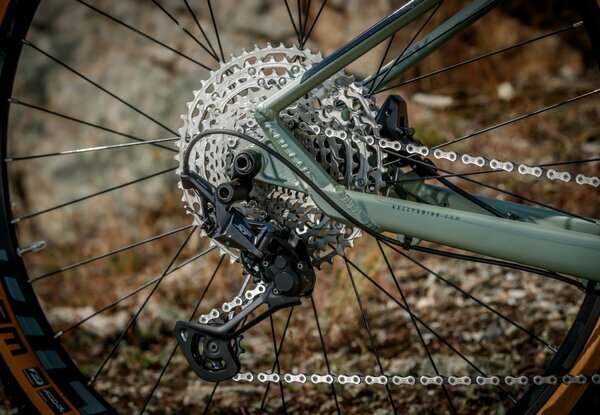

Schaltwerk
SHIMANO Deore XT M8100 (direct mount)
Schalthebel
SHIMANO SLX SL-M7100-IR Rapidfire Plus (I-Spec EV)
Gänge
12
Kassetenzahnkranz
SHIMANO CS-M6100-12 (10-51T)
Kette
KMC X12 (114 links)
Innenlager
SRAM DUB PressFit
Pedale
Kunststoff

Freins

Bremsen
SHIMANO Deore MT410 Hydraulic Disc
Bremshebel
SHIMANO Deore BL-M4100

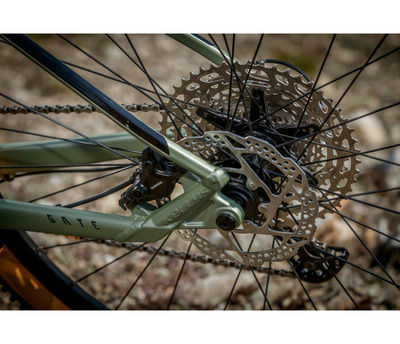

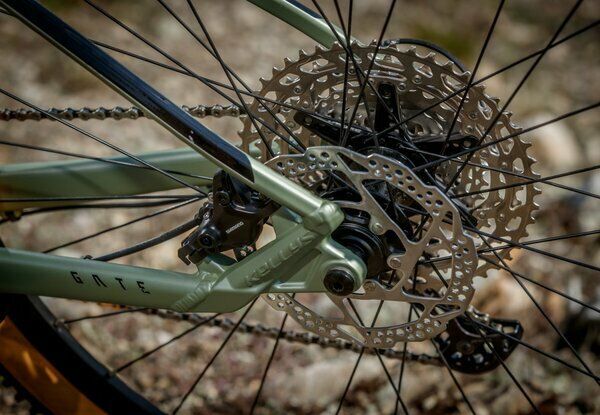

Bremsscheiben
180 mm front / 160 mm rear

Räder

Naben
SHIMANO MT400-B / MT510-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Felgen
KLS Cartel Disc 622x21 (32 holes)
Speichen
SAPIM - stainless steel black
Reifen
SCHWALBE Smart Sam Performance 57-622 (29x2.25) ADDIX
Steckachse
ROCK SHOX Maxle Stealth 15x110 mm front / NOVATEC 12x148 mm rear

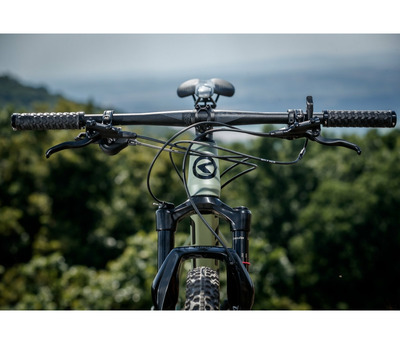

Cockpit

Steuersatz
FSA 1.5 integrated
Vorbau
KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 7° / length 80 mm (M), 100 mm (L)

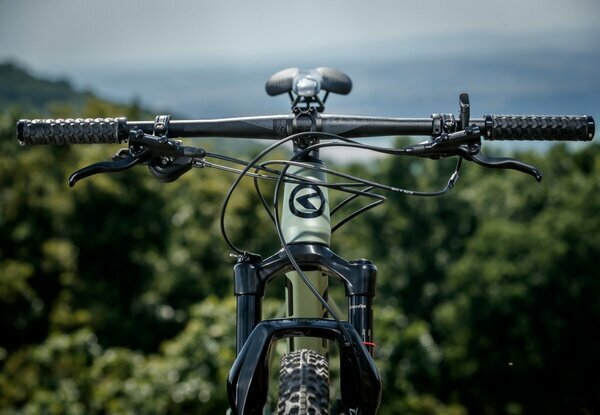

Lenker
KLS Advanced FlatBar - diam 31.8 mm / width 720 mm
Griffe
KLS Poison OneLockon
Sattelstütze
KS e20-i Remote Telescopic - diam 30.9 mm / length 418 mm, travel 125 mm
Sattel
fi´zi:k Taiga S-alloy rails

Veľkosť rámu GATE 90 29"

Geometria GATE 90 29"
