Rahmensatz

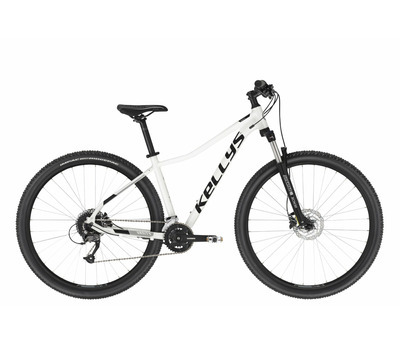

Rahmen KELLYS KLC 29 - Lady Sport Geometry
Gabel SR SUNTOUR XCM HLO DS (29), 100 mm, coil / Speed Lockout
Rahmengrössen M / L
Drive
Kurbelgarnitur SHIMANO MT101-2 (36x22T) - length 175 mm
Schaltwerk SHIMANO Altus M2000 (direct mount) or microSHIFT Marvo M46
Umwerfer
SHIMANO Altus M2020 (34.9 mm)
Schalthebel SHIMANO Altus SL-M2010-9 Rapidfire Plus
Gänge 18
Kassetenzahnkranz SHIMANO CS-HG200-9 (11-34T) or DTS-9 (11-34T)
Kette KMC X9 (110 links)
Innenlager cartridge (122 mm)
Pedale alloy
Freins
Bremsen SHIMANO MT200 Hydraulic Disc or KLS 1600 Hydraulic Disc
Bremshebel SHIMANO BL-MT200 or KLS 1600
Bremsscheiben 160 mm front / 160 mm rear
Räder
Naben KT Disc / SHIMANO TX505 Disc Center Lock (32 holes)
Felgen KLS Draft Disc 622x21 (32 holes)
Speichen steel
Reifen IMPAC Ridgepac 54-622 (29x2.10)
Cockpit
Steuersatz v
Vorbau KLS Active - diam 28.6 mm / bar bore 31.8 mm / 8° / length 75 mm (M), 90 mm (L)
Lenker KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 620 mm (M), 660 mm (L)
Griffe KLS Advancer 2Density
Sattelstütze KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - L)
Sattel KLS Ebony Women
