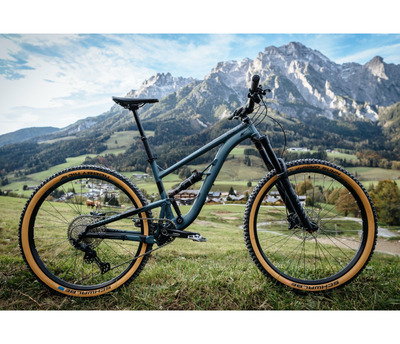

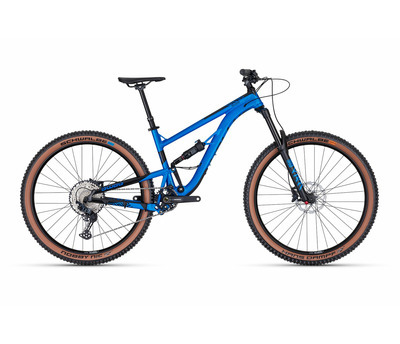

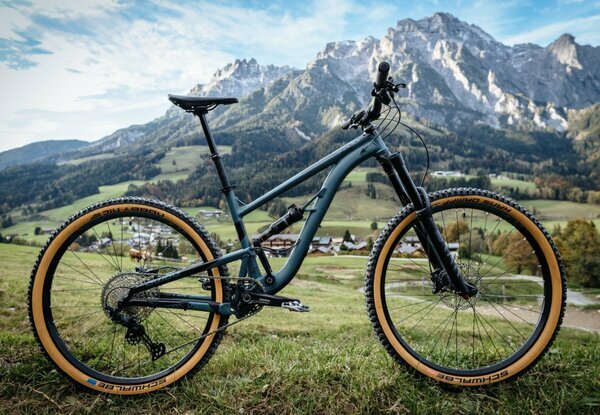

SWAG 30 29"
Rahmensatz

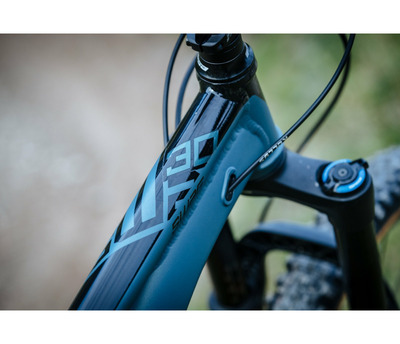

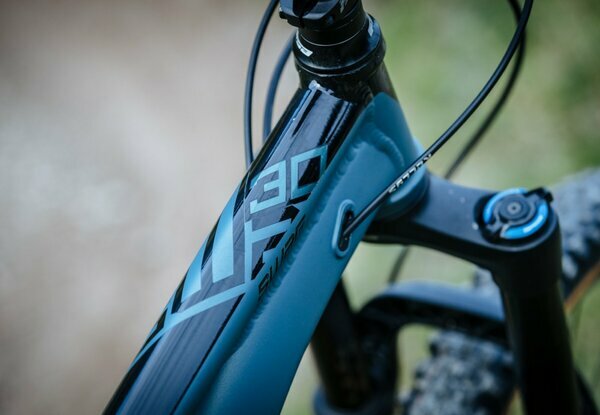

Rahmen KELLYS Enduro 29 / Think Link® suspension system, 150 mm rear travel, tapered HT, internal routing, 12x148 mm Boost thru axle
Gabel ROCK SHOX Yari RC (29) Boost, 170 mm, DebonAir / Motion Control / Maxle Stealth 15 mm thru axle
Dämpfer ROCK SHOX Deluxe Select+ RT, DebonAir / Open-Threshold (210x55 mm)
Rahmengrössen M / L

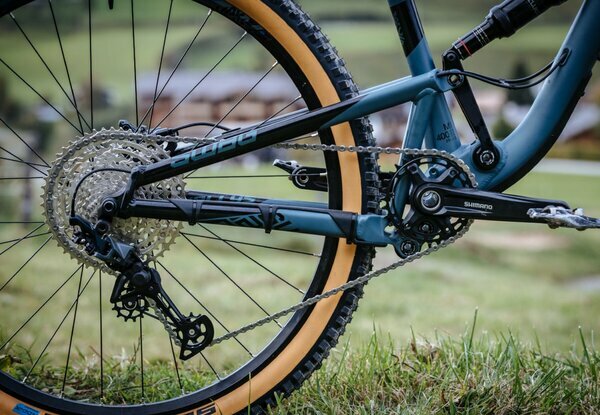

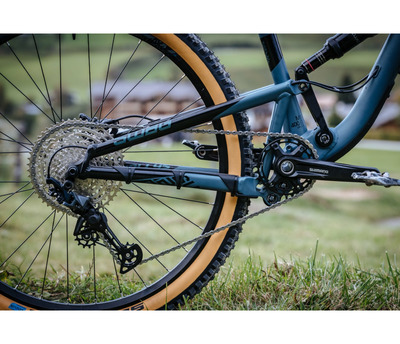

Drive
Kurbelgarnitur SHIMANO Deore (021) MT510-1 (32T) - length 175 mm
Schaltwerk SHIMANO SLX M7100 (direct mount)
Umwerfer
chain guide MOZARTT Piano, ISCG 05
Schalthebel SHIMANO SLX SL-M7100-IR Rapidfire Plus (I-Spec EV)
Gänge 12
Kassetenzahnkranz SHIMANO CS-M6100-12 (10-51T)
Kette SHIMANO CN-M6100 (114 links)
Innenlager SHIMANO PressFit BB71-41A
Pedale KLS Master
Freins
Bremsen SHIMANO Deore M6100 Hydraulic Disc
Bremshebel SHIMANO Deore BL-M6100
Bremsscheiben 180 mm front / 180 mm rear
Räder
Naben SHIMANO Deore MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Felgen KLS Valor 3 Disc (622x30 / 32 holes)
Speichen stainless steel black
Reifen SCHWALBE Hans Dampf Evo Super Trail 60-622 (29x2.35) Tubeless Easy, ADDIX Soft, folding front / SCHWALBE Nobby Nic Evo Super Terrain 60-622 (29x2.35) Tubeless Easy, ADDIX SpeedGrip, folding rear
Steckachse ROCK SHOX Maxle Stealth 15x110 mm front / Mr.control 12x177 mm rear
Cockpit
Steuersatz FSA 1.5 integrated
Vorbau RACE FACE Chester 35 - diam 28.6 mm / bar bore 35 mm / 0° / length 40 mm
Lenker RACE FACE Chester 35 RiseBar - diam 35 mm / rise 35 mm / width 780 mm
Griffe KLS Poison
Sattelstütze KS e20-i Remote Telescopic - diam 30.9 mm / length 474 mm, travel 150 mm
Sattel fi’zi:k Taiga, S-alloy rails
