Rahmensatz

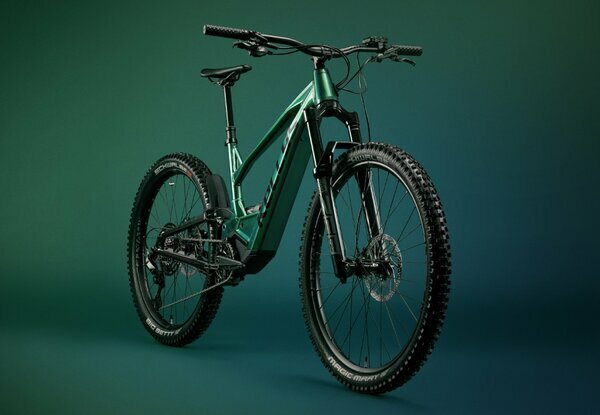

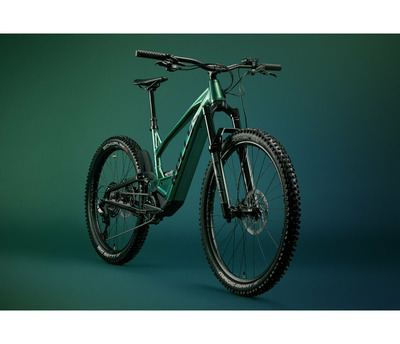

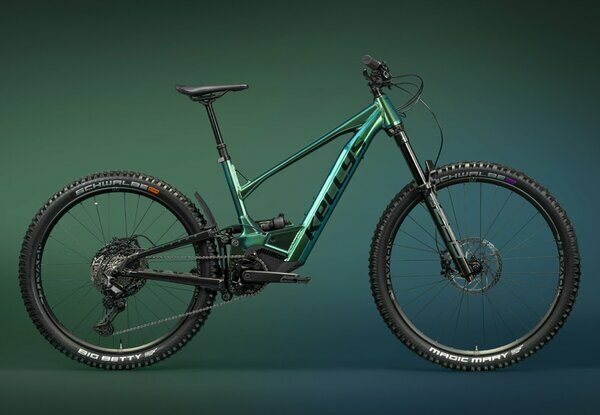

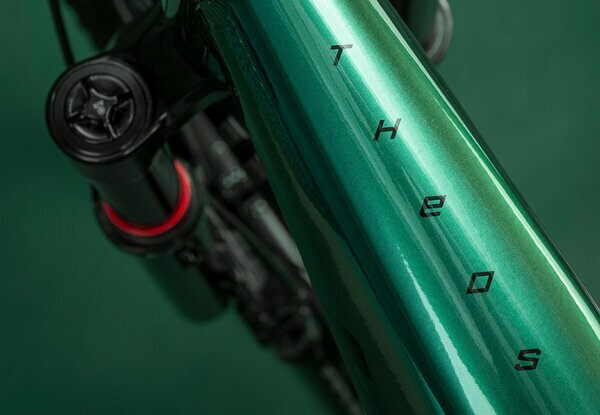

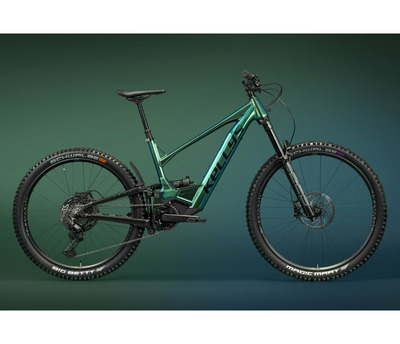

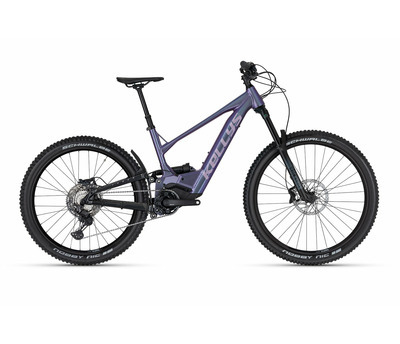

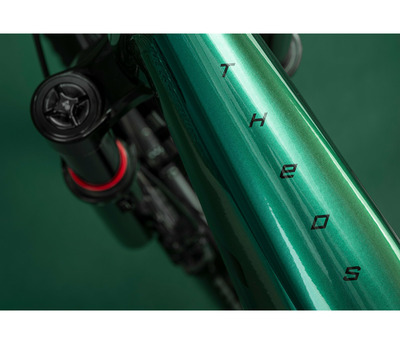

Rahmen KELLYS THEOS R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / Think Link® suspension system, 130 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29" / 27.5"+ wheelset, 12x148 mm Boost thru axle
Gabel ROCK SHOX 35 Silver TK (29") Boost, 150 mm, Solo Air / TurnKey / Maxle Stealth 15 mm thru axle
Dämpfer ROCK SHOX Deluxe Select R, DebonAir+ (210x55 mm)
Rahmengrössen S
Drive

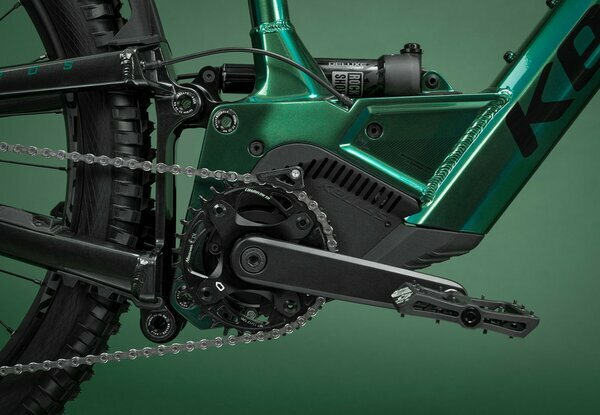

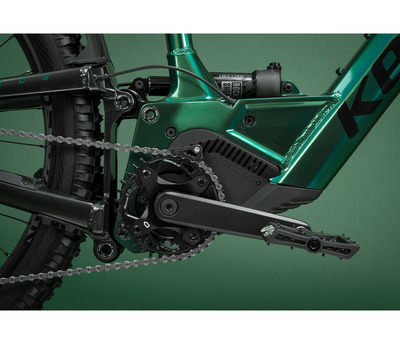

Motor PANASONIC GX Ultimate, 95 Nm, 36 V
Akku KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by KELLYS-BMZ
Schalter PANASONIC

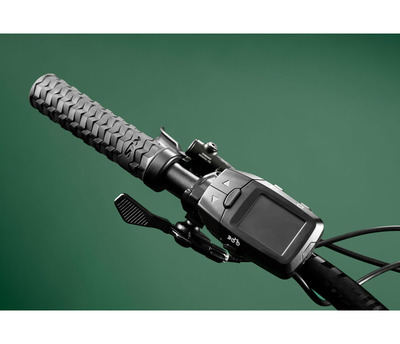

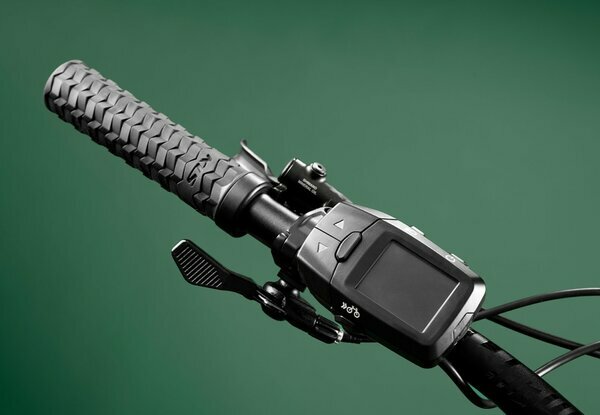

Informations-Display PANASONIC Bluetooth® 5.0 navigation Side Color Display
Kurbelgarnitur MIRANDA Miranda (34T) - length 170 mm
Schaltwerk SHIMANO Cues U6000 (direct mount)
Schalthebel SHIMANO Cues SL-U6000-10 Rapidfire Plus
Gänge 10
Kassetenzahnkranz SHIMANO Linkglide CS-LG400-10 (11-48T)
Kette SHIMANO Linkglide CN-LG500 (122 links)
Pedale Kunststoff
Freins
Bremsen SHIMANO MT420 / MT410 hydraulic disc
Bremshebel SHIMANO Deore BL-M4100
Bremsscheiben SHIMANO RT30 203 mm front / EM300 203 mm rear
Räder
Naben SHIMANO MT400-B Disc Center Lock (32 holes)
Felgen KLS Valor 3 Disc 622x30 front / 584x30 rear (32 holes)
Speichen stainless steel black
Steckachse ROCK SHOX Maxle Stealth 15x110 mm front / Mr. Control 12x177 mm rear
Hinterradreifen SCHWALBE Nobby Nic Performance 65-584 (27.5"x2.60) Tubeless Easy, ADDIX, folding
Vorderradreifen SCHWALBE Nobby Nic Performance 60-622 (29"x2.35) Tubeless Easy, ADDIX, folding
Cockpit
Steuersatz ACROS 1.8 semi-integrated tapered
Vorbau KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / length 60 mm
Lenker KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / width 780 mm
Griffe KLS Poison OneLockon
Sattelstütze LIMOTEC A1 Remote Telescopic - diam 30.9 mm / length 445 mm, travel 150 mm
Sattel fi’zi:k Taiga, S-alloy rails
