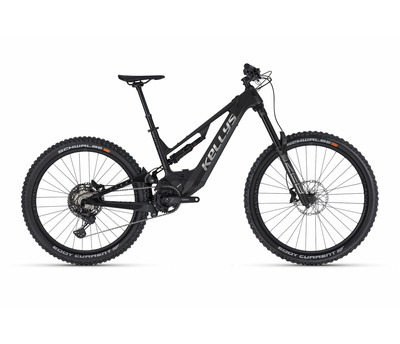

THEOS F70 SH 29/27.5" 725 Wh
Full-suspension electric mountain bike
Rahmensatz
Rahmen KELLYS THEOS F-series - Thermoplastic Hybrid Steel-Carbon Composite a.k.a. FEATHER® by Rein4ced assembled by advanced robotic manufacturing / Think Link suspension system, 170 mm rear travel, integrated removable battery, 1.8“ tapered HT, post mount 203 mm, mullet 29 / 27.5+ wheelset, 12x148 mm Boost thru axle / Designed & manufactured in EUROPE
Gabel ROCK SHOX Zeb Select+ (29) Boost, 180 mm, DebonAir / Charger 2.1 RC / Maxle Stealth 15 mm thru axle
Dämpfer ROCK SHOX Super Deluxe Select R (230x65 mm)
Rahmengrössen M / L
Drive
Motor SHIMANO EP800, 85 Nm, 36 V
Akku KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by KELLYS-BMZ
Schalter SHIMANO SW-EM800-L for assist
Informations-Display SHIMANO SC-EM800
Kurbelgarnitur SHIMANO EM600 / SM-CRE80-12-B (38T) - length 170 mm
Schaltwerk SHIMANO Deore XT Linkglide M8130 (direct mount)
Schalthebel SHIMANO Deore XT Linkglide SL-M8130-R Rapidfire Plus (I-Spec EV)
Gänge 11
Kassetenzahnkranz SHIMANO Linkglide CS-LG600-11 (11-50T)
Kette SHIMANO Linkglide CN-LG500 (122 links)
Pedale Kunststoff
Freins
Bremsen SHIMANO Deore XT M8120 Hydraulic Disc
Bremshebel SHIMANO Deore XT BL-M8100
Bremsscheiben 203 mm front / 203 mm rear
Räder
Naben SHIMANO Deore MT410-B / MT400-B Disc Center Lock (32 holes)
Felgen KLS Bender Disc 622x38 front / 584x38 rear (32 holes)
Speichen stainless steel black
Steckachse ROCK SHOX Maxle Stealth 15x110 mm front / Mr.control 12x177 mm rear
Hinterradreifen SCHWALBE Eddy Current Evo SuperGravity 70-584 (27.5x2.80) Tubeless Easy, ADDIX Soft, folding
Vorderradreifen SCHWALBE Eddy Current Evo SuperTrail 65-622 (29x2.60) Tubeless Easy, ADDIX Soft, folding
Cockpit
Steuersatz ACROS 1.8 semi-integrated tapered
Vorbau RACE FACE Aeffect R 35 - diam 28.6 mm / bar bore 35 mm / 0° / length 50 mm
Lenker RACE FACE Chester 35 RiseBar - diam 35 mm / rise 35 mm / width 780 mm
Griffe KLS Poison
Sattelstütze KS Rage-i Remote Telescopic - diam 30.9 mm / length 442 mm, travel 150 mm (M) / length 495 mm, travel 170 mm (L)
Sattel fi’zi:k Taiga, S-alloy rails
