Rahmensatz

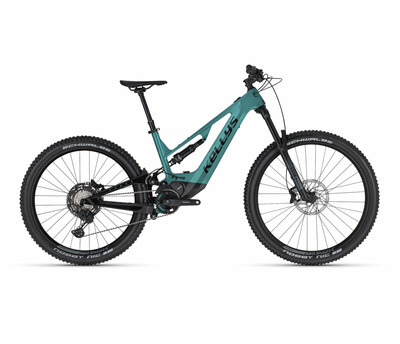

KELLYS THEOS F100 Carbon-Aramid Composite / Designed & manufactured in EUROPE / Think Link® suspension system, 140 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29/27.5"+ wheelset, 12x148 mm Boost thru axle

ROCK SHOX 35 GOLD RL (29") Boost, 150 mm, DebonAir / Motion Control / Maxle Stealth 15 mm thru axle

ROCK SHOX Deluxe Select R, DebonAir (210x55 mm)

M / L
Drive

SHIMANO EP8, 85 Nm, 36 V

KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by Kellys-BMZ

SHIMANO SC-E5003 cycle computer with assist switch

SHIMANO EM600 / CRE70-B (34T) - length 170 mm

SHIMANO Deore XT Linkglide M8130 (direct mount)

SHIMANO Deore XT Linkglide SL-M8130-R Rapidfire Plus (I-Spec EV)

11

SHIMANO Linkglide CS-LG600-11 (11-50T)

SHIMANO Linkglide CN-LG500 (122 links)
Freins

SHIMANO MT420 Hydraulic Disc

SHIMANO Deore BL-M4100

203 mm front / 203 mm rear
Räder

SHIMANO MT400-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)

KLS Bender Disc 622x38 front / 584x38 rear (32 holes)

stainless steel black

ROCK SHOX Maxle Stealth 15x110 mm front / Mr.control 12x177 mm rear

SCHWALBE Nobby Nic Performance 65-622 (29"x2.60) ADDIX

SCHWALBE Nobby Nic Performance 70-584 (27.5"x2.80) ADDIX
Cockpit

ACROS 1.8 semi-integrated tapered

KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / length 60 mm

KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / width 760 mm

KLS Poison OneLockon

LIMOTEC A1 Remote Telescopic - diam 30.9 mm / length 445 mm, travel 150 mm

fi’zi:k Taiga, S-alloy rails
