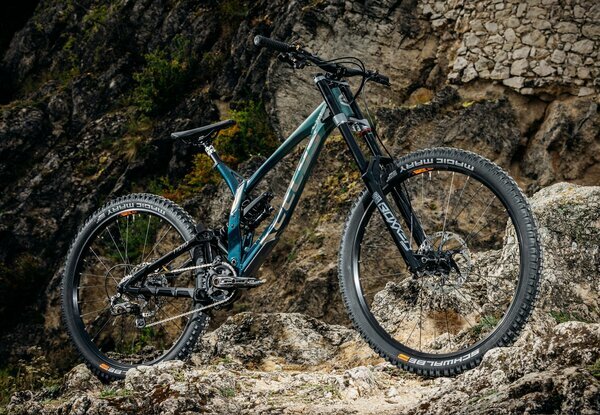

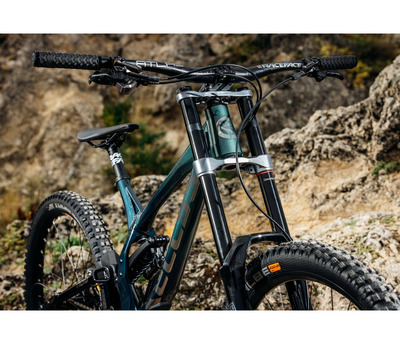

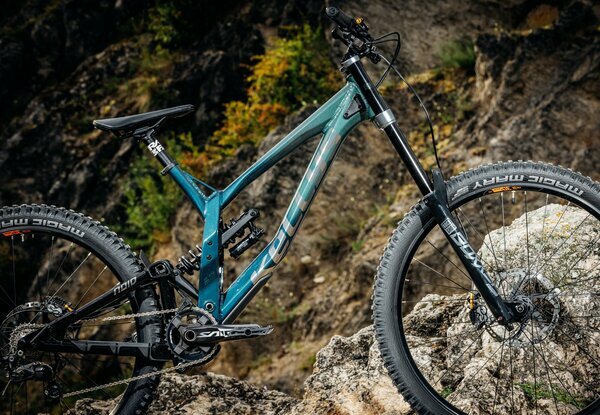

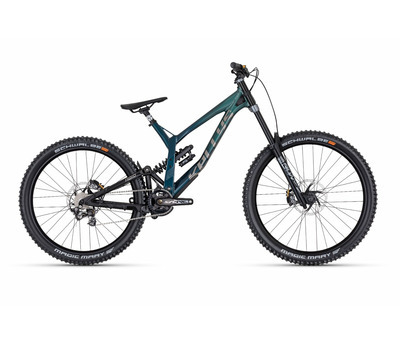

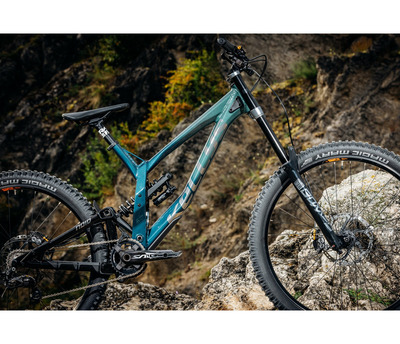

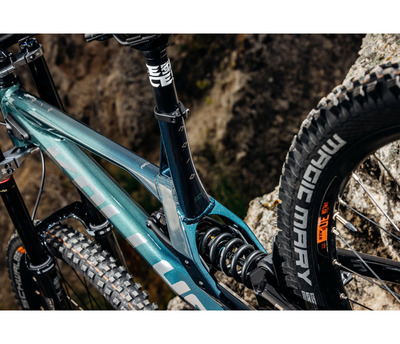

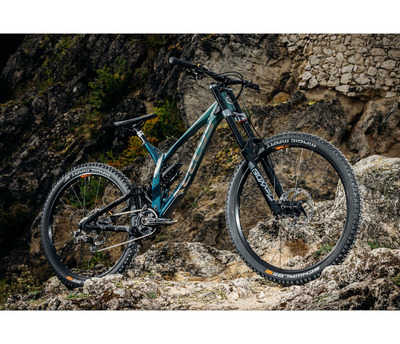

NOID 90 EMERALD GREEN 29"/27.5"
Rahmensatz
Rahmen KELLYS Gravity DH / Think Link® suspension system, 205 mm rear travel, tapered HT, internal routing, ISCG 05, mullet 29" / 27.5" wheelset, 12x150 mm thru axle

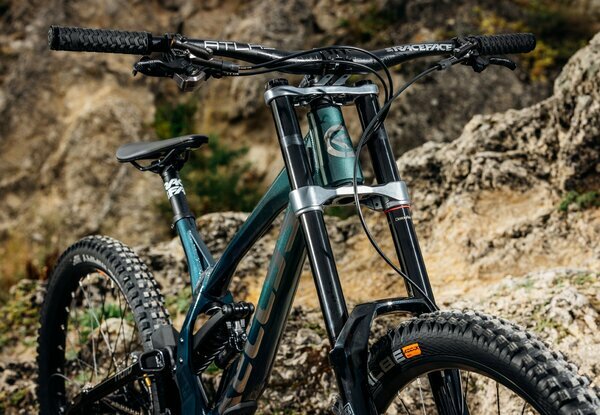

Gabel ROCK SHOX BoXXer Ultimate (29") Boost, 200 mm, DebonAir / Charger 2 RC2 / Maxle Stealth 20 mm thru axle

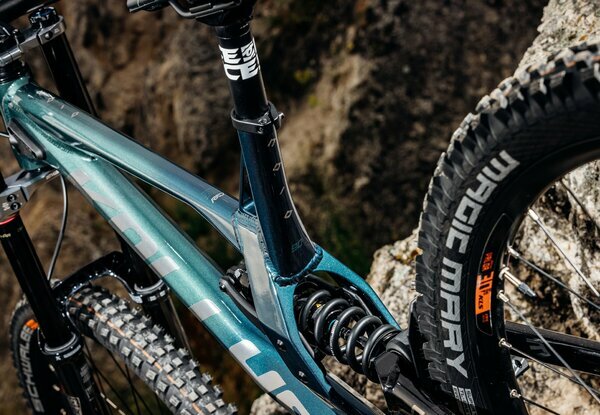

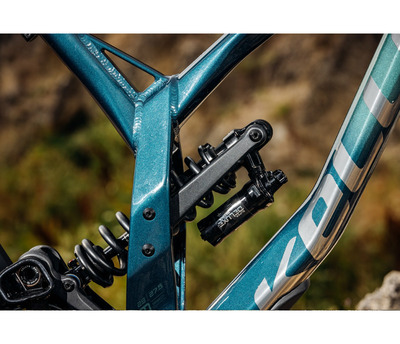

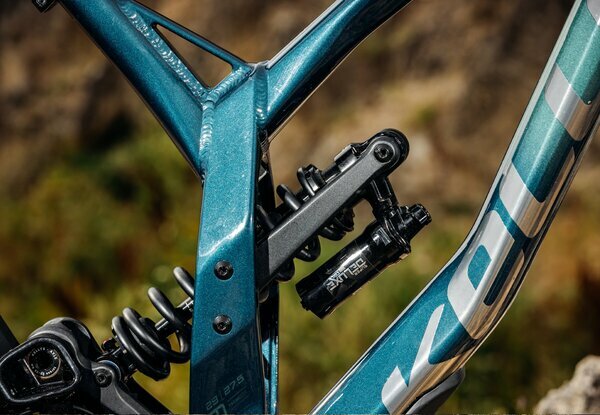

Dämpfer ROCK SHOX Super Deluxe Coil Ultimate DH RC2 / Open-Threshold (250x75 mm)
Rahmengrössen M / L
Drive
Kurbelgarnitur SHIMANO Saint M825 Hollowtech II (34T) - length 165 mm
Schaltwerk SHIMANO Saint M820 (direct mount)
Umwerfer
chain guide Mozartt HXR, ISCG 05
Schalthebel SHIMANO Saint SL-M820 Rapidfire Plus
Gänge 10
Kassetenzahnkranz SHIMANO CS-HG500-10 (11-25T)
Kette KMC X10 EL (104 links)
Innenlager SHIMANO Press-Fit BB71-41A
Pedale Kunststoff
Freins
Bremsen SHIMANO Deore XT M8120 hydraulic disc
Bremshebel SHIMANO Deore XT BL-M8100
Bremsscheiben 203 mm front / 203 mm rear
Räder
Naben NOVATEC DH Disc (20x110 mm / 12x150 mm / 32 holes)
Felgen MAVIC EX 1028 Disc (622x28 front / 584x28 rear / 32 holes)
Speichen stainless steel black
Steckachse ROCK SHOX Maxle Stealth 20x110 mm front / Mr.control 12x180 mm rear
Vorderradreifen SCHWALBE Magic Mary 60-622 (29"x2.35) SnakeSkin, Tubeless Easy, ADDIX Soft, folding
Hinterradreifen SCHWALBE Magic Mary 60-584 (27.5"x2.35) SnakeSkin, Tubeless Easy, ADDIX Soft, folding
Cockpit
Steuersatz 1.5 semi-integrated
Vorbau RACE FACE Atlas 35 DM - direct mount / bar bore 35 mm / lenght 50
Lenker RACE FACE Atlas 35 RiseBar - diam 35 mm / rise 20 mm / width 820 mm
Griffe KLS Poison
Sattelstütze RACE FACE Chester - diam 30.9 mm / length 325 mm
Sattel fi’zi:k Taiga, S-alloy rails
