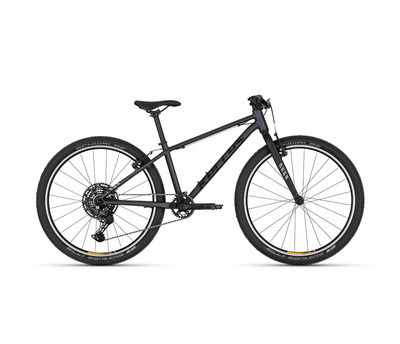

NAGA AIR 90 BLACK 26"
NAGA AIR 90 BLACK 26" 3418454

NAGA AIR 90
BLACK 26"

Junior bike

Search for a dealer

Frame set

frame frame
KELLYS Superlight double butted Aluminium alloy Junior 26"
fork fork
Aluminium alloy (alloy steerer)
frame size frame size
343 mm

Drive

crankset crankset
PROWHEEL (30T) - length 155 mm
rear derailleur rear derailleur
SHIMANO Cues U6000 (direct mount)
front derailleur
chain guide Mr.control
shifters shifters
SHIMANO Cues SL-U6000-10R Rapidfire Plus
speed speed
10
cassette sprocket cassette sprocket
SHIMANO Linkglide CS-LG300-10 (11-48T)
chain chain
SHIMANO Linkglide CN-LG500
b.b.parts b.b.parts
cartridge (119 mm)
pedals pedals
plastic

Brakes

brakes brakes
TEKTRO V-brake
brake levers brake levers
APSE

Wheels

hubs hubs
alloy (24 holes)
rims rims
KLS Draft 559x21 (24 holes)
spokes spokes
steel black
tyres tyres
SCHWALBE Little Joe Performance 50-559 (26"x2.0) ADDIX, folding

Cockpit

head parts head parts
semi-integrated
stem stem
integrated BarStem - diam 28.6 mm / bar bore 31.8 mm / length 40 mm
handlebar handlebar
integrated - diam 31.8 mm / rise 6° / width 600 mm
grips grips
kraton 2Density
seat post seat post
KALLOY - diam 27.2 mm / length 300 mm
saddle saddle
SELLE ROYAL Vivo Mini, Magnesium rails

weight weight
9.50 kg

Veľkosť rámu NAGA AIR 90 BLACK 26"

Geometria NAGA AIR 90 BLACK 26"

We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
