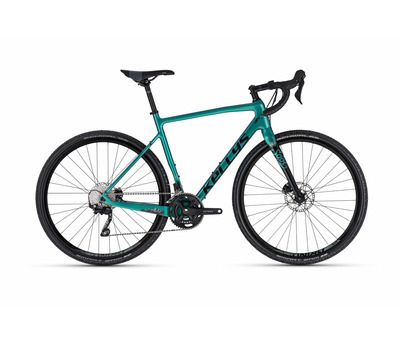

SOOT 80
Jeu de cadres
Cadre KELLYS Gravel Concept - Carbon Disc, flat mount, tapered HT, internal routing, 12x142 mm thru axle
Fourche KELLYS Carbon Disc - 1.5 tapered steerer, flat mount disc brake, 12x100 mm thru axle
Taille de cadre S / M / L
Drive
Manivelles SHIMANO GRX RX600-10 (46x30T) - length 172.5 mm (S - M), 175 mm (L)
Dérailleur arrière SHIMANO GRX RX400 (direct mount)
Dérailleur avant
SHIMANO GRX RX400 (brazed-on mount)
Manettes SHIMANO GRX ST-RX400 Dual Control
Vitesses 20
Cassette SHIMANO CS-HG500-10 (11-34T)
Chaîne KMC X10 EL (112 links)
Boîtier de pédalier SHIMANO Press-Fit BB-RS500-PB
Hamulce
Freins SHIMANO GRX RX400 Hydraulic Disc
Lèviers de frein SHIMANO GRX ST-RX400 Dual Control
disques de frein 160 mm front / 160 mm rear
Roues
Moyeux NOVATEC Disc (32 holes)
Jantes KELLYS Grind Disc 622x17 (32 holes / eyelets)
Rayons stainless steel black
Pneus SCHWALBE Smart Sam Performance 42-622 (700x40C) ADDIX
axe traversant Mr.control 12x118 mm front / NOVATEC 12x172 mm rear
Cockpit
Jeu de direction FSA 1.5 semi-integrated
Potence KLS Active Road - diam 28.6 mm / bar bore 31.8 mm / 6° / length 90 mm (S), 100 mm (M), 110 mm (L)
Cintres GravelBar - diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L)
Poignée KLS bar tape
Tige de selle KLS Active Road - diam 27.2 mm / length 350 mm (S), 400 mm (M - L)
Selle KLS SlipStream cr-mo rails
