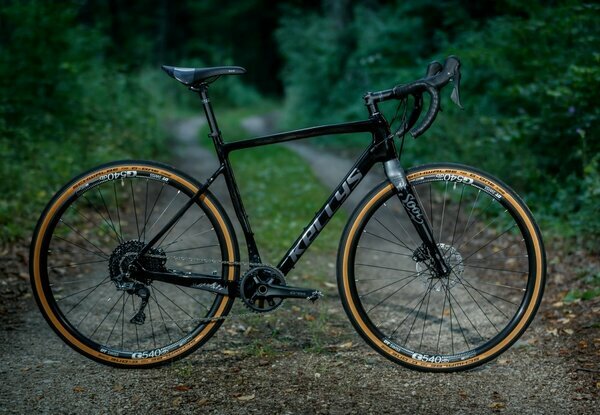

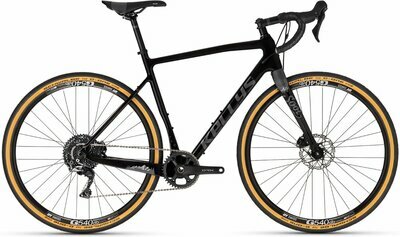

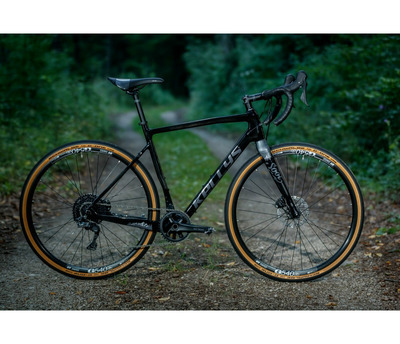

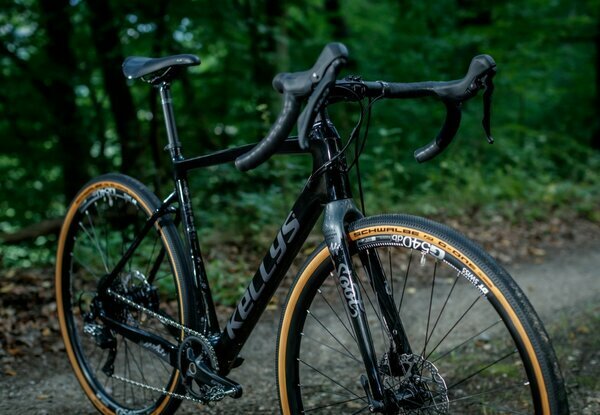

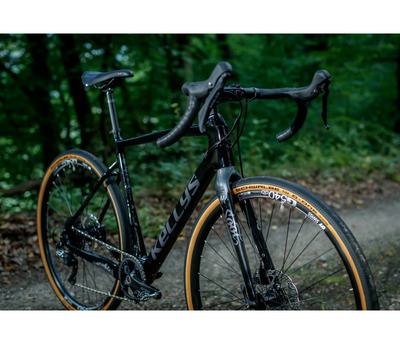

SOOT 90
Jeu de cadres

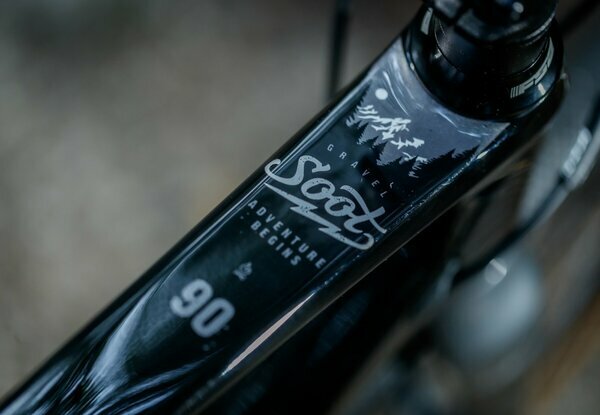

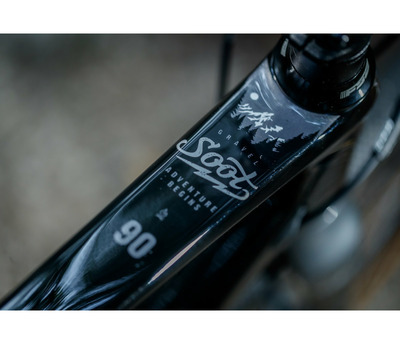

Cadre KELLYS Gravel Concept Carbon Disc / tapered HT, flat mount, internal routing / 12 mm thru axle
Fourche KELLYS Carbon Disc, 1.5 tapered steerer / flat mount disc brake / 12 mm thru axle
Taille de cadre S / M / L
Drive

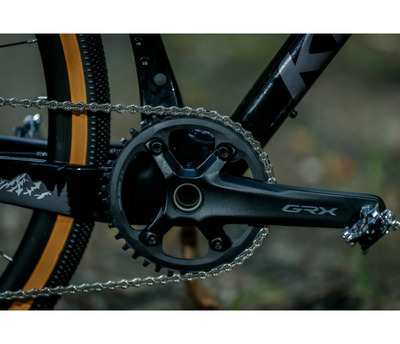

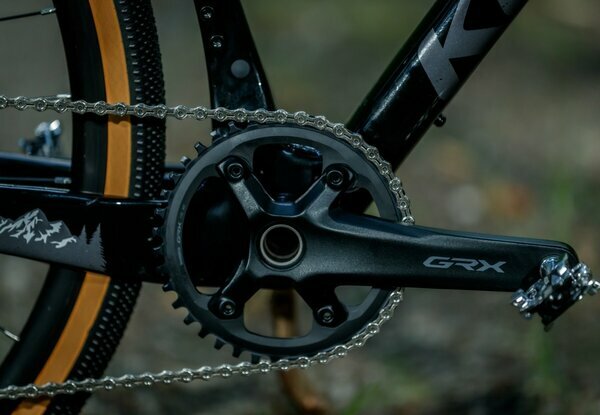

Manivelles SHIMANO GRX RX600-1 (40T) - length 172.5 mm (S - M), 175 mm (L)
Dérailleur arrière SHIMANO GRX RX812 (direct mount)

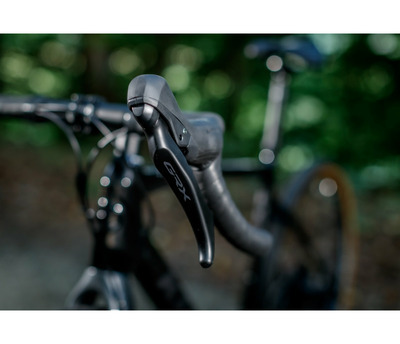

Manettes SHIMANO GRX BL-RX600 / ST-RX600 Dual Control
Vitesses 11
Cassette SUNRACE CSMS7 (11-42T)
Chaîne KMC X11 EL (112 links)
Boîtier de pédalier SHIMANO Press-Fit BB-RS500-PB
Hamulce
Freins SHIMANO GRX RX400 Hydraulic Disc
Lèviers de frein SHIMANO GRX BL-RX600 / ST-RX600 Dual Control
disques de frein 160 mm front / 160 mm rear
Roues
Moyeux NOVATEC Disc (32 holes)
Jantes DT SWISS G 540 Disc 700Cx24 (32 holes)
Rayons stainless steel black
Pneus SCHWALBE G-One Allround 40-622 (700x38C) RaceGuard, folding
axe traversant Mr.control 12x118 mm front / NOVATEC 12x172 mm rear
Cockpit
Jeu de direction FSA 1.5 semi-integrated
Potence KLS Active Road - diam 28.6 mm / bar bore 31.8 mm / 6° / length 70 mm (S), 90 mm (M), 110 mm (L)
Cintres GravelBar - diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L)
Poignée KLS bar tape
Tige de selle KLS Active Road - diam 27.2 mm / length 350 mm (S), 400 mm (M - L)
Selle WTB Volt
