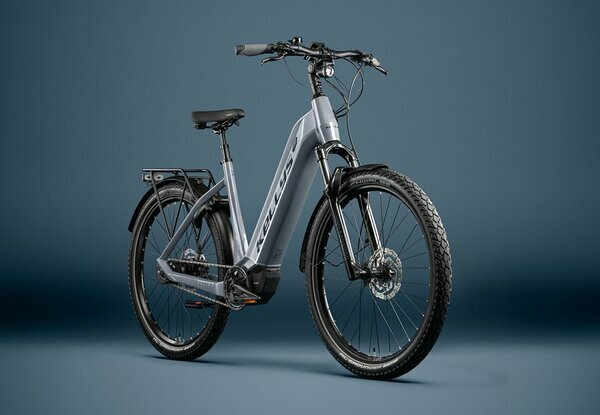

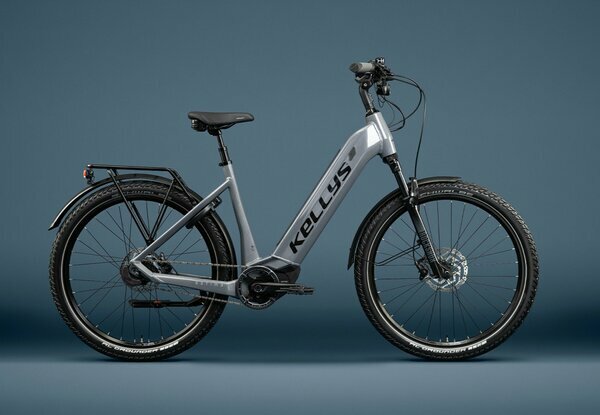

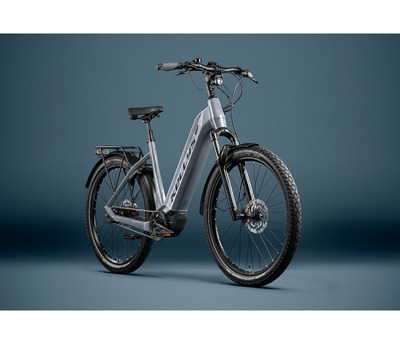

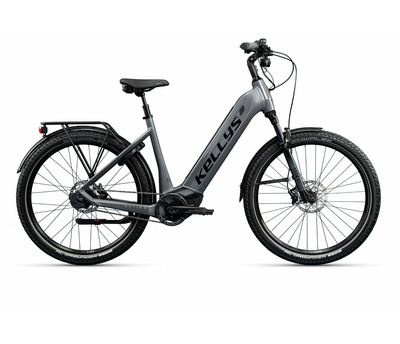

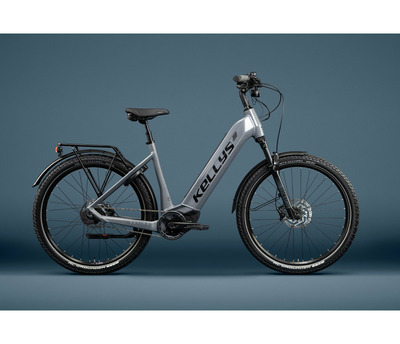

ESTIMA 80
Di2 SH ANTRACITE 820 Wh

City e-bike

Search for a dealer

Frame set

frame frame

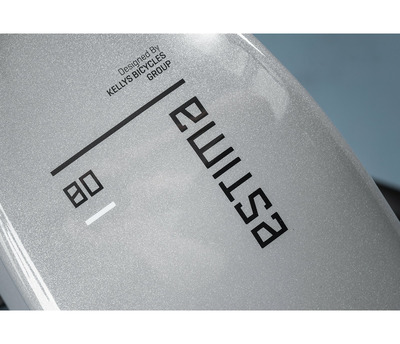

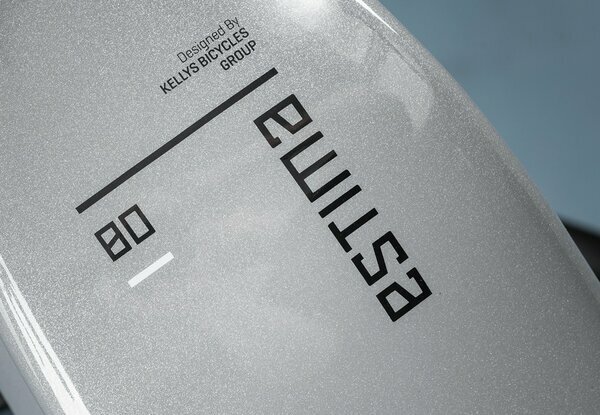

KELLYS ESTIMA series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5“ tapered HT
fork fork
ROCK SHOX Recon Silver RL (27.5) Boost, 100 mm, Solo Air / Motion Control / Maxle Stealth 15 mm thru axle
frame size frame size
S / M

Drive

motor motor
SHIMANO EP6, 85 Nm, 36 V
battery battery
KELLYS Re-Charge K1 Li-ion internal removable 820 Wh / capacity 23 Ah, co-developed by Kellys-BMZ
switch unit switch unit
SHIMANO SW-EN600-L for assist
computer display computer display

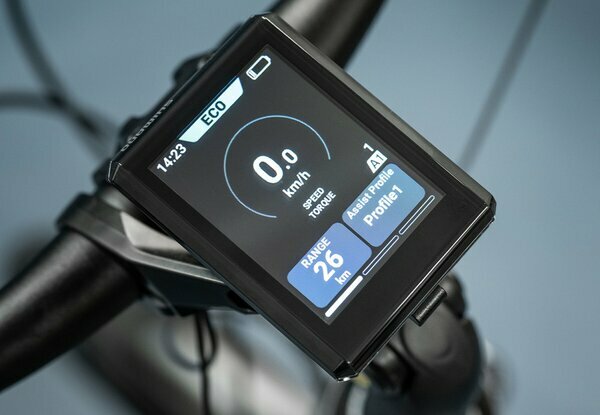

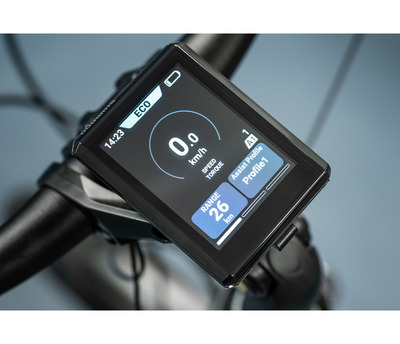

SHIMANO SC-EN610
crankset crankset
SHIMANO EM600 / CR-ET600 (38T) - length 170 mm
shifters shifters
SHIMANO SW-EN600-R Di2 for shifting
speed speed
5
freewheel
for internal hub Nexus 24T
chain chain
SHIMANO CN-HG71
pedals pedals
plastic

Brakes

brakes brakes
SHIMANO Deore MT410 hydraulic disc
brake levers brake levers
SHIMANO Deore BL-M4100
brake rotors brake rotors
180 mm front / 180 mm rear

Wheels

hubs hubs
SHIMANO MT400-B / SHIMANO Nexus C7050-5D Di2 Disc Center Lock (32 holes)
rims rims
KLS Valor 3 Disc 584x30 (32 holes)
spokes spokes
stainless steel black
tyres tyres
SCHWALBE Al Grounder Performance 65-584 (27.5"x2.60) RaceGuard, ADDIX, ReflectiveLine
fenders
alloy

Cockpit

head parts head parts
FSA 1.5 semi-integrated
stem stem
PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 85 mm
handlebar handlebar
KALLOY RiseBar - diam 31.8 mm / width 640 mm
grips grips
KLS Wave 2Density ergonomic
seat post seat post
KALLOY suspension - diam 30.9 mm / length 300 mm (S), 350 mm (M)
saddle saddle
SELLE ROYAL Essenza Relaxed

front light
TRELOCK Airflow 100
rear light
TRELOCK Duo Flat
accessories
carrier, adujstable kickstand, bell

Veľkosť rámu ESTIMA 80 Di2 SH ANTRACITE 820 Wh

Geometria ESTIMA 80 Di2 SH ANTRACITE 820 Wh

We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
