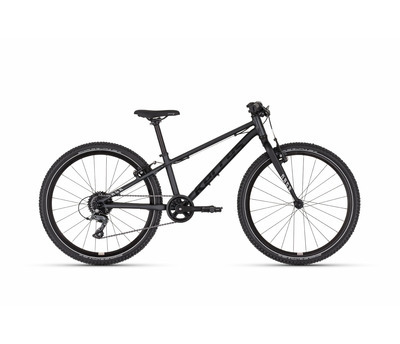

NAGA AIR 70 BLACK 24"
weight kg
8.30
Frame set
frame KELLYS Superlight double butted Aluminium alloy Junior 24"
fork Aluminium alloy (alloy steerer)
frame size 279 mm
Drive
crankset PROWHEEL (30T) - length 152 mm
rear derailleur SHIMANO Claris R2000 (direct mount)
front derailleur
chain guide
shifters SHIMANO Claris SL-R2000-R Rapidfire Plus (for FlatBar)
speed 8
cassette sprocket SHIMANO CS-HG31-8 (11-32T)
chain KMC Z8 (102 links)
b.b.parts cartridge (126 mm)
pedals plastic
Brakes
brakes TEKTRO V-brake
brake levers APSE
Wheels
hubs alloy (24 holes)
rims KLS 507x19 (24 holes)
spokes steel black
tyres SCHWALBE Little Joe Performance 47-507 (24"x1.95) ADDIX, folding
Cockpit
head parts semi-integrated
stem integrated BarStem - diam 28.6 mm / bar bore 31.8 mm / length 40 mm
handlebar integrated - diam 31.8 mm / rise 6° / width 580 mm
grips kraton 2Density
seat post alloy - diam 27.2 mm / length 300 mm
saddle SELLE ROYAL Explora Junior
