Frame set
frame

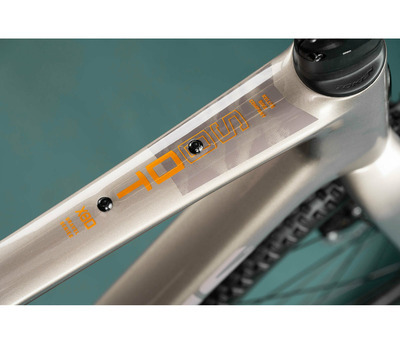

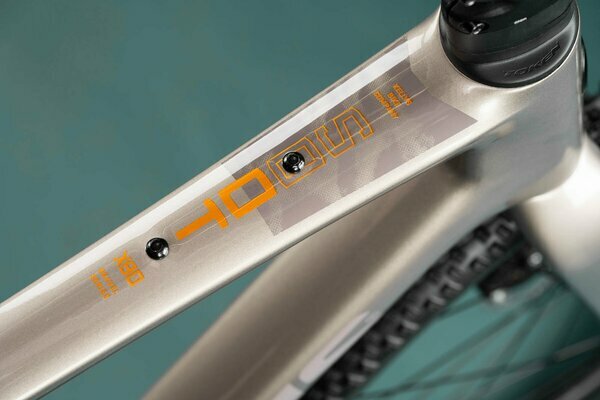

KELLYS Gravel Concept Carbon Disc / 1.5" tapered HT, aerodynamic internal cable routing, flat mount disc brake / 12 mm thru axle
fork

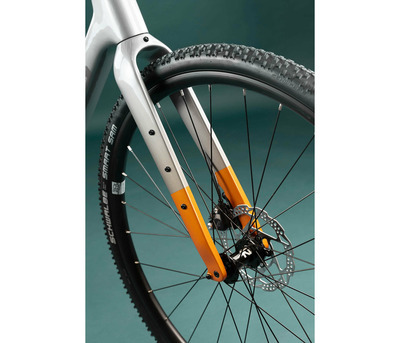

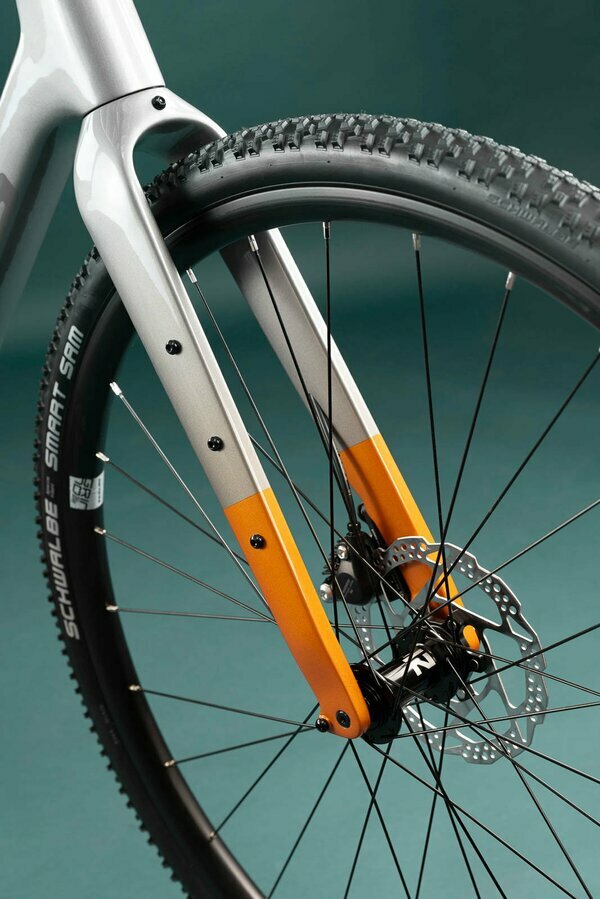

KELLYS Carbon Disc / 1.5" tapered steerer, flat mount disc brake / 12 mm thru axle
frame size
S (470 mm) / M (490 mm) / L (510 mm)
Drive
crankset

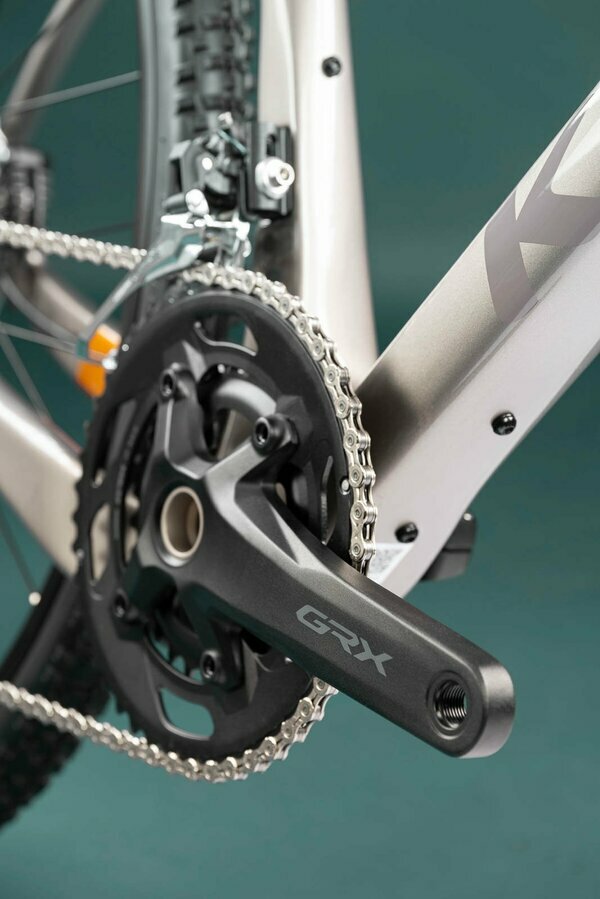

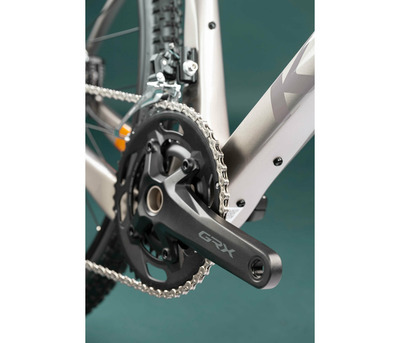

SHIMANO GRX RX600-10 (46x30T) - length 172.5 mm (S - M), 175 mm (L)
rear derailleur
SHIMANO GRX RX400 (direct mount)
front derailleur
SHIMANO GRX RX400 (braze on)
shifters
SHIMANO GRX ST-RX400 Dual Control
speed
20
cassette sprocket
SHIMANO CS-HG500-10 (11-34T)
chain
KMC X10 EL
b.b.parts
SHIMANO Press-Fit BB-RS500-PB
Brakes
brakes
SHIMANO GRX RX400 Hydraulic Disc
brake levers
SHIMANO GRX ST-RX400 Dual Control
brake rotors
SHIMANO RT54, 160 mm front / 160 mm rear
Wheels
hubs
NOVATEC Disc Center Lock (28 holes)
rims
KLS Grind 25 SL Disc 622x25 (28 holes)
spokes
stainless steel black
tyres
SCHWALBE Smart Sam Performance 42-622 (700x40C) ADDIX
thru axle
12x120 mm front / 12x172 mm rear
Cockpit
head parts
TOKEN A-BOX Aero integrated cable routing system
stem

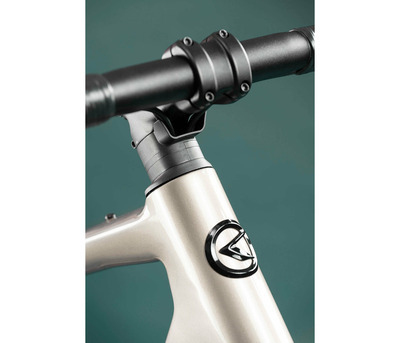

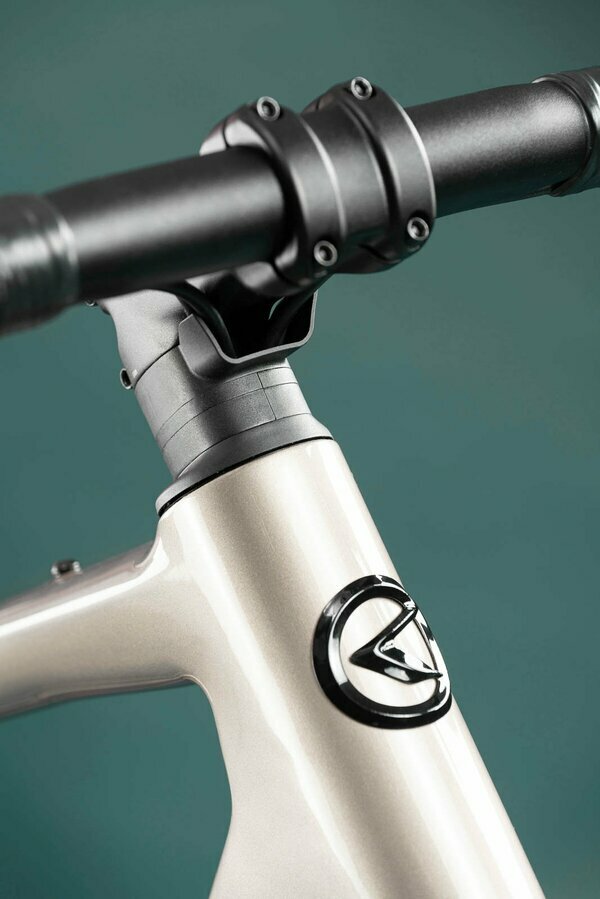

PROMAX, aerodynamic internal cable routing (compatible with A-BOX head set) - diam 28.6 mm / bar bore 31.8 mm / length 80 mm (S ), 90 mm (M), 100 mm (L)
handlebar
GravelBar, double butted, internal cable routing - diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L)
grips
SELLE ITALIA Smart bar tape
seat post
KLS Active Road - diam 27.2 mm / length 400 mm (S - L)
saddle
SELLE ITALIA X Evo
weight
10.52 kg (M)
The weight corresponds to the most common model specification in size M. The actual weight of your bike may vary.
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
