Frame set
frame

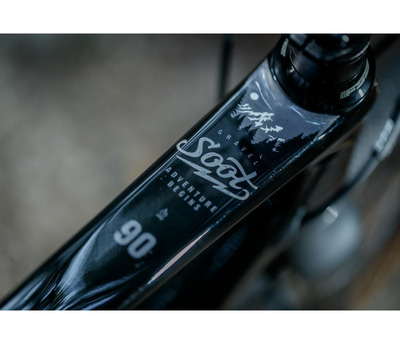

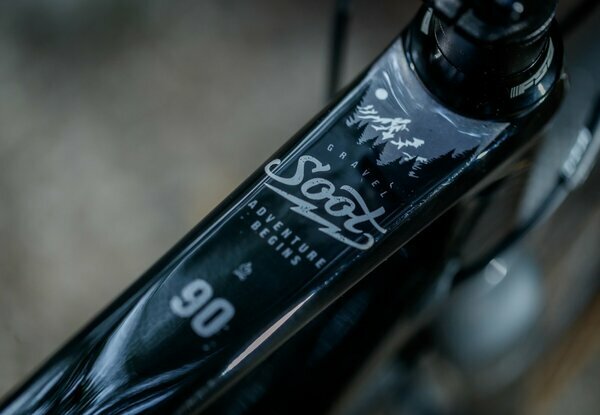

KELLYS Gravel Concept Carbon Disc / 1.5" tapered HT, flat mount, internal routing / 12 mm thru axle
fork
KELLYS Carbon Disc / 1.5" tapered steerer, flat mount disc brake / 12 mm thru axle
frame size
S / M / L
Drive
crankset

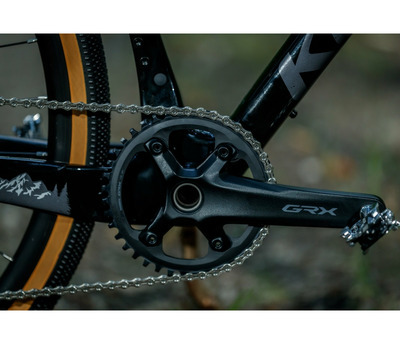

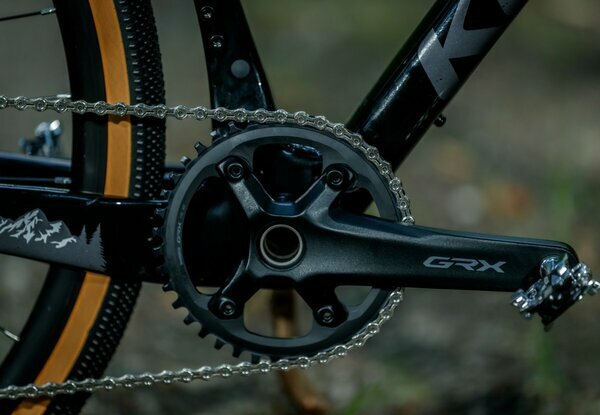

SHIMANO GRX RX600-1 (40T) - length 172.5 mm (S - M), 175 mm (L)
rear derailleur
SHIMANO GRX RX812 (direct mount)
shifters

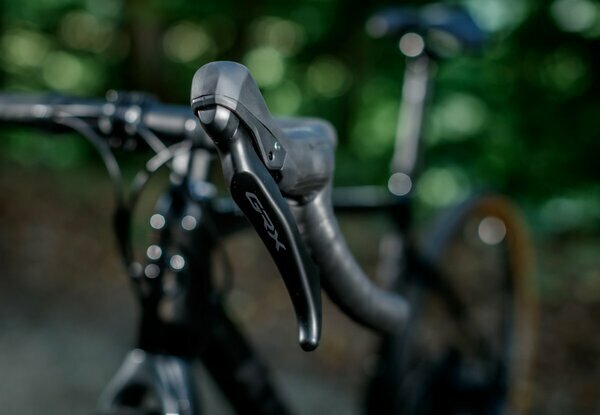

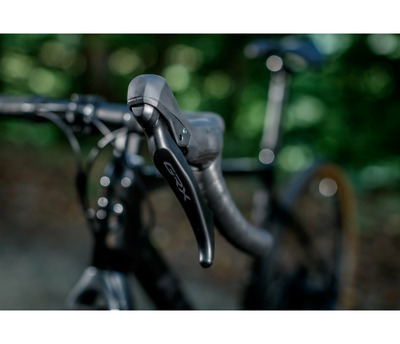

SHIMANO GRX BL-RX600 / ST-RX600 Dual Control
speed
11
cassette sprocket
SUNRACE CSMS7 (11-42T)
chain
KMC X11 EL
b.b.parts
SHIMANO Press-Fit BB-RS500-PB
Brakes
brakes
SHIMANO GRX RX400 Hydraulic Disc
brake levers
SHIMANO GRX BL-RX600 / ST-RX600 Dual Control
brake rotors
160 mm front / 160 mm rear
Wheels
hubs
NOVATEC Disc (32 holes)
rims
DT SWISS G 540 Disc 700Cx24 (32 holes)
spokes
stainless steel black
tyres
SCHWALBE G-One Allround 40-622 (700x38C) RaceGuard, folding
thru axle
Mr.control 12x118 mm front / NOVATEC 12x172 mm rear
Cockpit
head parts
FSA 1.5" semi-integrated
stem
KLS Active Road - diam 28.6 mm / bar bore 31.8 mm / 6° / length 70 mm (S), 90 mm (M), 110 mm (L)
handlebar
GravelBar - diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L)
grips
KLS bar tape
seat post
KLS Active Road - diam 27.2 mm / length 350 mm (S), 400 mm (M - L)
saddle
WTB Volt
weight
9.84 kg (M)
The weight corresponds to the most common model specification in size M. The actual weight of your bike may vary.
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
