Frame set
frame

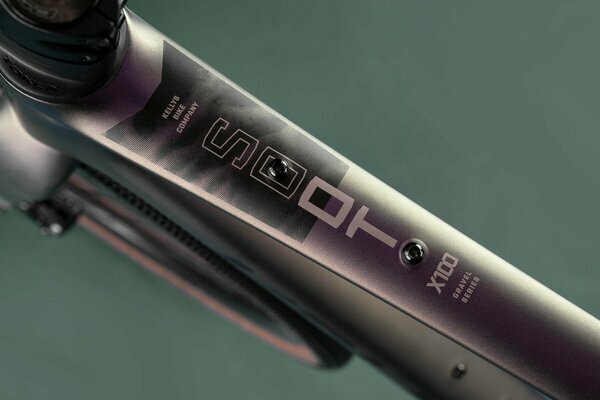

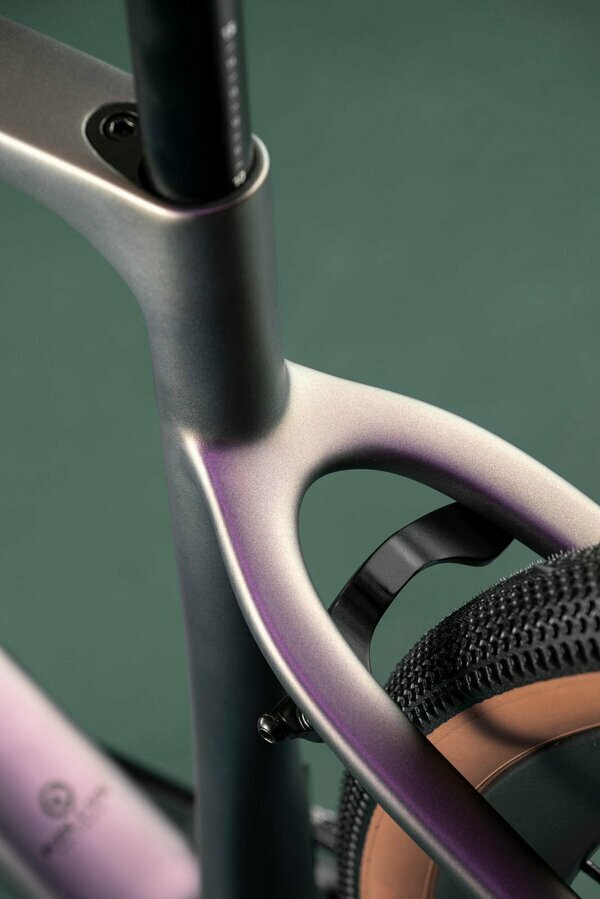

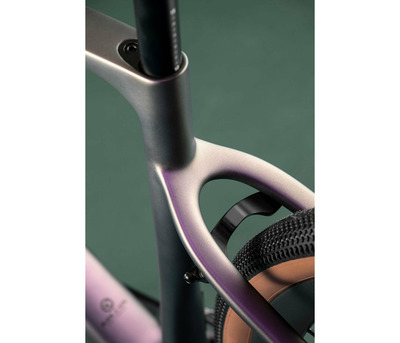

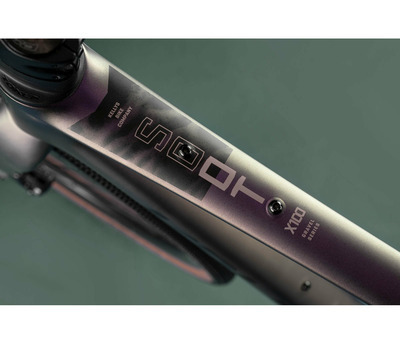

KELLYS Gravel Concept Carbon Disc / 1.5" tapered HT, aerodynamic internal cable routing, flat mount disc brake / 12 mm thru axle
fork

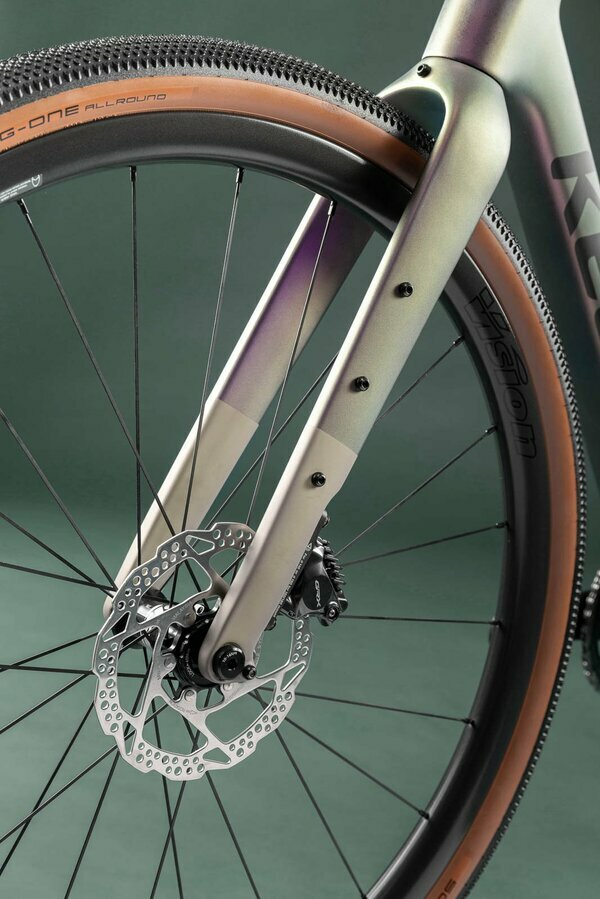

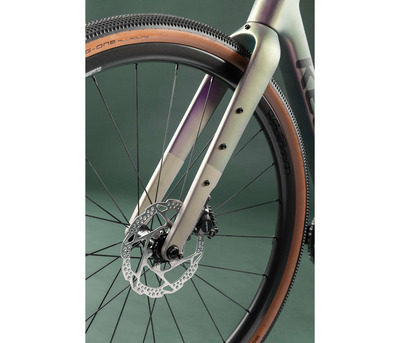

KELLYS Carbon Disc, 1.5" tapered steerer / flat mount disc brake / internal routing / 12 mm thru axle
frame size
M (490 mm) / L (510 mm)
Drive
crankset

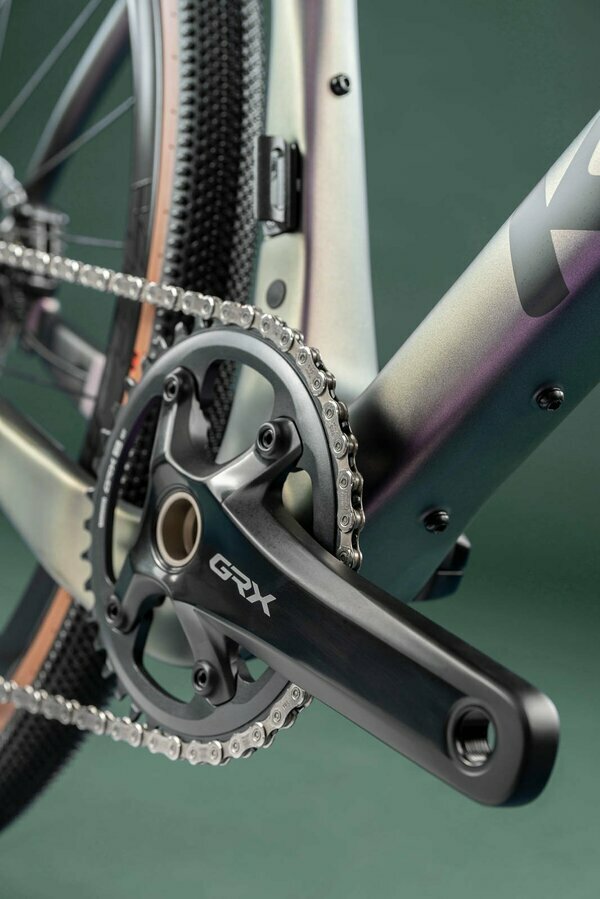

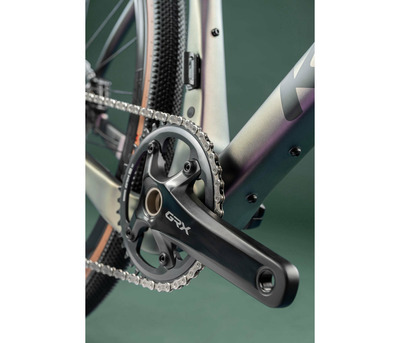

SHIMANO GRX RX820-1 Hollowtech II (40T) - length 172.5 mm (M), 175 mm (L)
rear derailleur
SHIMANO GRX RX827 Di2 (direct mount)
shifters
SHIMANO GRX ST-RX825-R Di2 Dual Control / BL-RX825-L
speed
12
cassette sprocket
SHIMANO Deore CS-M6100-12 (10-51T)
chain
SHIMANO CN-M7100
b.b.parts
SHIMANO Press-Fit BB-RS500-PB
Brakes
brakes
SHIMANO GRX RX820 Hydraulic Disc
brake levers
SHIMANO GRX ST-RX825-R Di2 Dual Control / BL-RX825-L
brake rotors
SHIMANO RT54, 160 mm front / 160 mm rear
Wheels
wheel set
VISION SC 30 i23 Carbon Disc
tyres
SCHWALBE G-One Allround Performance 45-622 (700x45C) RaceGuard, ADDIX, folding
thru axle
12x120 mm front / 12x172 mm rear
Cockpit
head parts

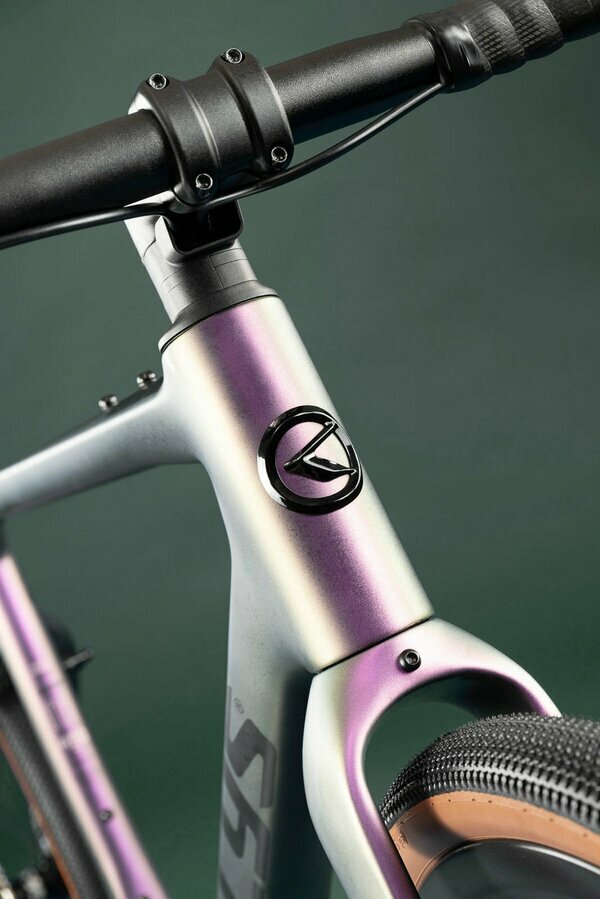

TOKEN A-BOX Aero integrated cable routing system
stem

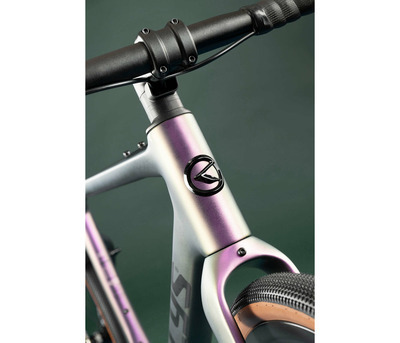

PROMAX (aerodynamic internal cable routing compatible with A-BOX head set) - diam 28.6 mm / bar bore 31.8 mm / length 90 mm (M), 100 mm (L)
handlebar
GravelBar, double butted, internal cable routing - diam 31.8 mm / width 420 mm (M), 440 mm (L)
grips
SELLE ITALIA Smart tape
seat post
KLS Active Road - diam 27.2 mm / length 400 mm (M - L)
saddle
SELLE ITALIA Novus Boost Evo Superflow
weight
9.60 kg (M)
The weight corresponds to the most common model specification in size M. The actual weight of your bike may vary.
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
