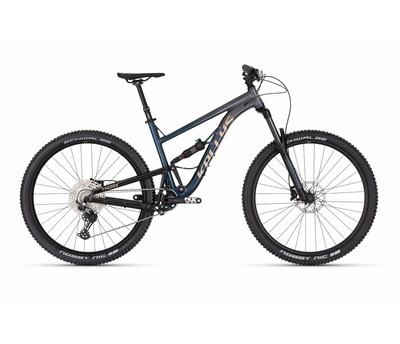

THORX 10 QUARTZ BLUE 29"
THORX 10 QUARTZ BLUE 29" 3312881

THORX 10
QUARTZ BLUE 29"

Full-suspension trail bike

1 999,00 €*

Launch price: 2 399,00 €

* Manufacturer's recommended retail price

  • EAN: 8585053838845

Search for a dealer

Frame set

frame frame
KELLYS Allmountain 29" / Think Link® suspension system, 140 mm rear travel, tapered HT, internal routing, 12x148 mm Boost thru axle
fork fork
ROCK SHOX 35 Silver TK (29") Boost, 150 mm, Solo Air / TurnKey / Maxle Stealth 15 mm thru axle
rear shock rear shock
ROCK SHOX Deluxe Select+ RT, DebonAir / Open-Threshold (210x55 mm)
frame size frame size
M / L

Drive

crankset crankset
SHIMANO Deore MT510-1 (34T) - length 175 mm
rear derailleur rear derailleur
SHIMANO Deore M6100 (direct mount)
front derailleur
chain guide MOZARTT Piano, ISCG 05
shifters shifters
SHIMANO Deore M6100-IR Rapidfire Plus (I-Spec EV)
speed speed
12
cassette sprocket cassette sprocket
SHIMANO CS-M6100-12 (10-51T)
chain chain
SHIMANO CN-M6100
b.b.parts b.b.parts
PRESTINE Press-Fit
pedals pedals
KLS Master

Brakes

brakes brakes
SHIMANO Deore MT410 Hydraulic Disc
brake levers brake levers
SHIMANO Deore BL-M4100
brake rotors brake rotors
180 mm front / 180 mm rear

Wheels

hubs hubs
SHIMANO Deore MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims rims
KLS Segador 27 SL Disc 622x27 (32 holes)
spokes spokes
stainless steel black
tyres tyres
SCHWALBE Nobby Nic Performance 60-622 (29"x2.35) ADDIX
thru axle thru axle
ROCK SHOX Maxle Stealth 15x110 mm front / Mr.control 12x177 mm rear

Cockpit

head parts head parts
FSA 1.5" integrated
stem stem
KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / lenght 45 mm
handlebar handlebar
KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / šírka 760 mm
grips grips
KLS Poison OneLockon
seat post seat post
EXAform JAG-i Remote Telescopic - diam 30.9 mm / length 485 mm, travel 150 mm
saddle saddle
fi’zi:k Taiga, S-alloy rails

weight weight
15.96 kg (M)

The weight corresponds to the most common model specification in size M. The actual weight of your bike may vary.

Veľkosť rámu THORX 10 QUARTZ BLUE 29"

Geometria THORX 10 QUARTZ BLUE 29"

We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
