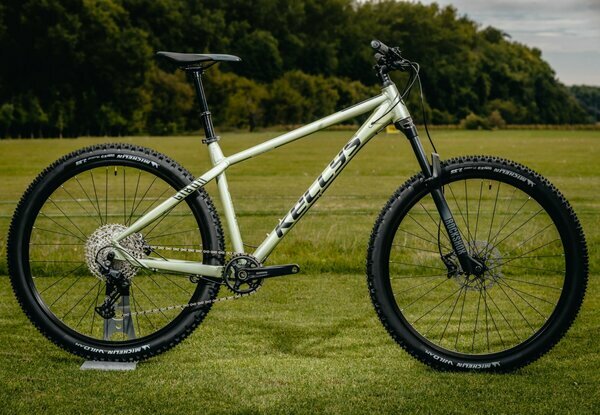

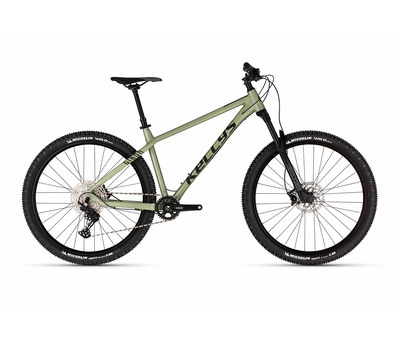

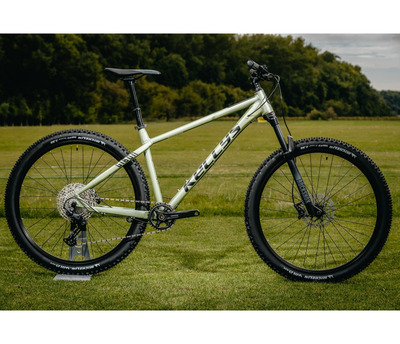

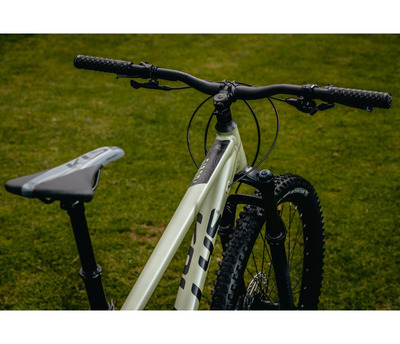

GIBON 30 29"

Trail bike

1 199,00 €*

Launch price: 1 599,00 €

* Manufacturer's recommended retail price

  • EAN: 8585053831723

Search for a dealer

Frame set

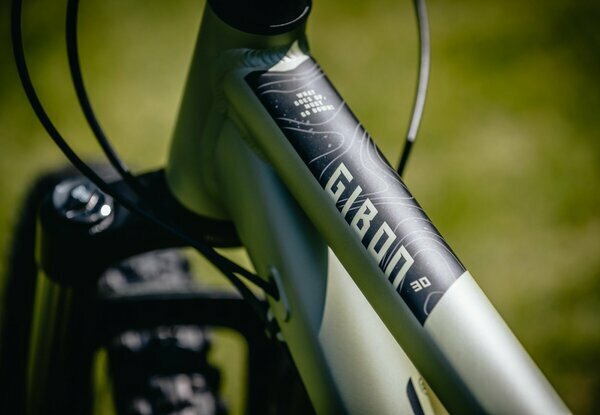

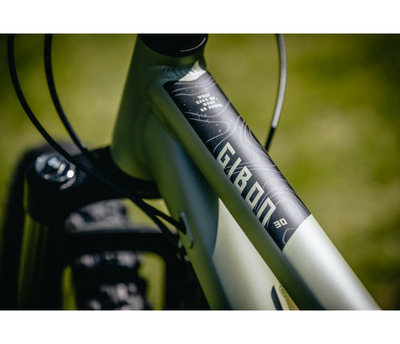

frame
KELLYS Dynamic Trail 29, tapered HT, internal routing, 12x148 mm Boost thru axle
fork
ROCK SHOX Recon Silver RL (29) Boost, 140 mm, Solo Air / Motion Control / Maxle Stealth 15 mm thru axle
frame size
M / L

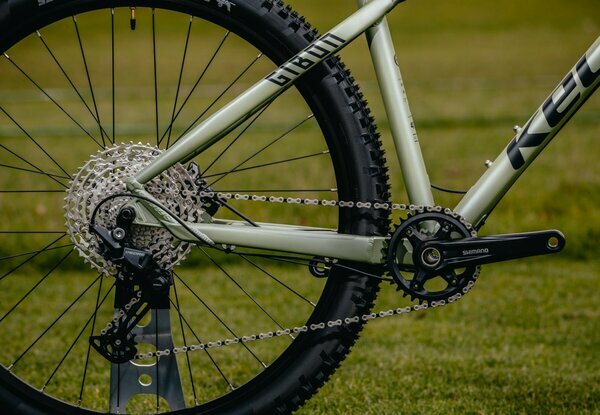

Drive

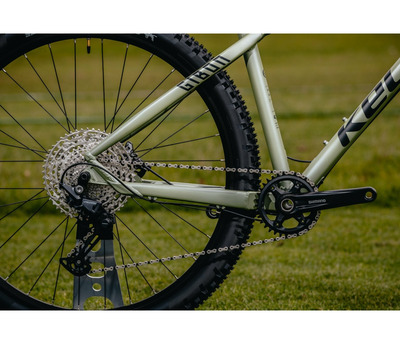

crankset
SHIMANO Deore MT510-1 (32T) - length 175 mm
rear derailleur
SHIMANO Deore M6100 (direct mount)
shifters
SHIMANO Deore M6100-R Rapidfire Plus
speed
12
cassette sprocket
SHIMANO CS-M6100-12 (10-51T)
chain
KMC X12 (114 links)
b.b.parts
SRAM DUB PressFit
pedals
KLS Flat - plastic platform

Brakes

brakes
SHIMANO Deore MT410 Hydraulic Disc
brake levers
SHIMANO Deore BL-M4100
brake rotors
180 mm front / 180 mm rear

Wheels

hubs
SHIMANO MT400-B / Deore MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims
KLS Valor 3 Disc 622x30 (32 holes)
spokes
stainless steel black
tyres
MICHELIN Wild AM Competition Line 60-622 (29"x2.35) Tubeless Ready or KENDA Amrak 61-622 (29"x2.40)
thru axle
ROCK SHOX Maxle Stealth 15x110 mm front / NOVATEC 12x148 mm rear

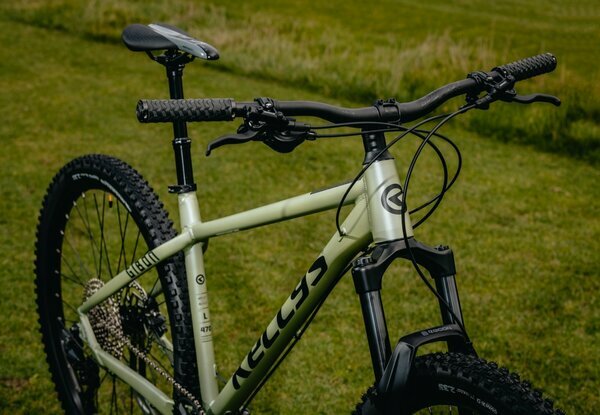

Cockpit

head parts
1.5 integrated

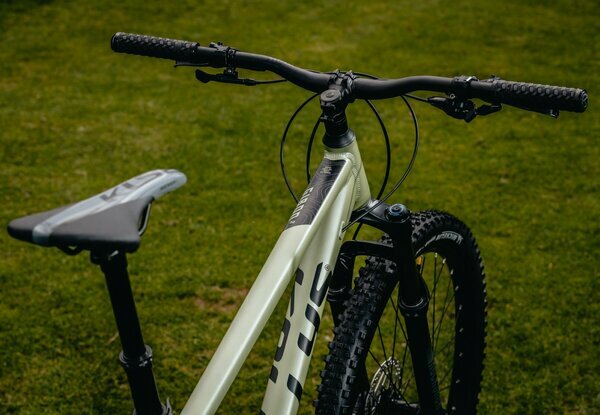

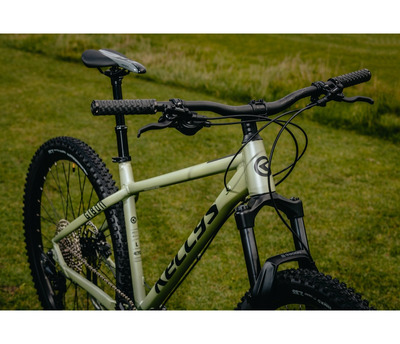

stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / length 40 mm
handlebar
KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / šírka 760 mm
grips
KLS Poison
seat post
KS Rage-i Remote Telescopic - diam 30.9 mm / length 442 mm, travel 150 mm
saddle
KLS Avenger

Veľkosť rámu GIBON 30 29"

Geometria GIBON 30 29"

We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
