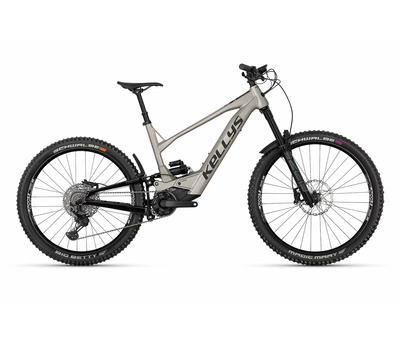

THEOS RS50 P TITANIUM 29/27.5" 820 Wh
New
4 799,00 €*
* Manufacturer's recommended retail price
-
EAN: 8585053859697
Frame set
frame KELLYS THEOS RS-series - Superlight design, advanced robotic welded Al 6061-T6 / Designed & manufactured in EUROPE / Think Link® suspension system, 140 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29 / 27.5"+ wheelset, 12x148 mm Boost thru axle
fork ROCK SHOX Zeb Select (29") Boost, 160 mm, DebonAir+ / Charger RC damper / Maxle Stealth 15 mm thru axle
rear shock ROCK SHOX Super Deluxe, DebonAir+ / R Hydraulic Bottom Out (210x55 mm)
frame size M / L
Drive
motor PANASONIC GXM AMXXPRO - Compact, High Torque & Low weight drive unit, max torque 105 Nm, weight 2.56 kg
battery KELLYS K2 AMXXPRO CARBON 820 Wh - superhigh energy density 236 Wh/kg, weight 3.48 kg, capacity 23 Ah, co-developed by KELLYS-BMZ
switch unit PANASONIC
computer display PANASONIC GXM Center Display 501 - Bluetooth® 5.0 navigation, PANASONIC App conectivity
crankset MIRANDA Miranda (34T) - length 170 mm
rear derailleur SHIMANO Deore XT Linkglide M8130 (direct mount)
shifters SHIMANO Deore XT Linkglide SL-M8130-R11 Rapidfire Plus (I-Spec EV)
speed 11
cassette sprocket SHIMANO Linkglide CS-LG400-11 (11-50T)
chain SHIMANO Linkglide CN-LG500
pedals plastic
Brakes
brakes SHIMANO SLX M7120 Hydraulic Disc
brake levers SHIMANO SLX BL-M7100
brake rotors GALFER Fixed Disc Wave® DB034W Center Lock, 203 mm front / 203 mm rear
Wheels
hubs SHIMANO TC500-15-B / TC500-HM-B Disc Center Lock (32 holes)
rims DT SWISS H 552 Disc 622x30 front / DT SWISS H 552 584x30 rear (32 holes)
thru axle predná ROCK SHOX Maxle Stealth 15x110 mm
rear tyre SCHWALBE Big Betty Evo Super Trail 65-584 (27.5"x2.60) TLE, ADDIX Soft, folding
front tyre SCHWALBE Magic Mary Evo Super Trail 62-622 (29"x2.40) TLE, ADDIX Ultra Soft, folding
Cockpit
head parts ACROS 1.8" tapered semi-integrated
stem KLS Alm/En 50 - diam 28.6 mm / bar bore 35 mm / length 35 mm
handlebar KLS Alm/En 70 RiseBar - diam 35 mm / rise 18 mm / width 780 mm
grips KLS Poison OneLockon
seat post LIMOTEC D1 Remote Telescopic - diam 30.9 mm / length 445 mm, travel 170 mm
saddle KLS Ascend
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
