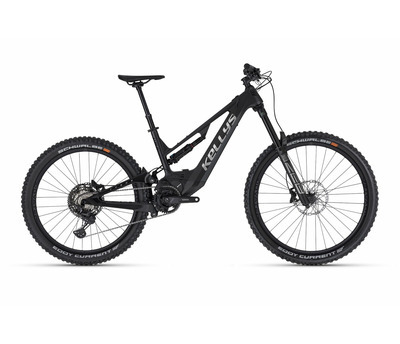

THEOS F70 SH 29/27.5" 725 Wh
Full-suspension electric mountain bike
4 999,00 €*
Launch price: 6 499,00 €
* Manufacturer's recommended retail price
-
Out of stock
-
EAN: 8585053819523
Frame set
frame KELLYS THEOS F-series - Thermoplastic Hybrid Steel-Carbon Composite a.k.a. FEATHER® by Rein4ced assembled by advanced robotic manufacturing / Designed & manufactured in EUROPE / Think Link® suspension system, 170 mm rear travel, integrated removable battery, 1.8“ tapered HT, post mount 203 mm, mullet 29/27.5"+ wheelset, 12x148 mm Boost thru axle
fork ROCK SHOX Zeb Select+ (29") Boost, 180 mm, DebonAir / Charger 2.1 RC / Maxle Stealth 15 mm thru axle
rear shock ROCK SHOX Super Deluxe Select R (230x65 mm)
frame size M / L
Drive
motor SHIMANO EP800, 85 Nm, 36 V
battery KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by KELLYS-BMZ
switch unit SHIMANO SW-EM800-L for assist
computer display SHIMANO SC-EM800
crankset SHIMANO EM600 / SM-CRE80-12-B (38T) - length 170 mm
rear derailleur SHIMANO Deore XT Linkglide M8130 (direct mount)
shifters SHIMANO Deore XT Linkglide SL-M8130-R Rapidfire Plus (I-Spec EV)
speed 11
cassette sprocket SHIMANO Linkglide CS-LG600-11 (11-50T)
chain SHIMANO Linkglide CN-LG500 (122 links)
Brakes
brakes SHIMANO Deore XT M8120 hydraulic disc
brake levers SHIMANO Deore XT BL-M8100
brake rotors 203 mm front / 203 mm rear
Wheels
hubs SHIMANO Deore MT410-B / MT400-B Disc Center Lock (32 holes)
rims KLS Bender Disc 622x38 front / 584x38 rear (32 holes)
spokes stainless steel black
thru axle ROCK SHOX Maxle Stealth 15x110 mm front / Mr.control 12x177 mm rear
front tyre SCHWALBE Eddy Current Evo SuperTrail 65-622 (29x2.60) Tubeless Easy, ADDIX Soft, folding
rear tyre SCHWALBE Eddy Current Evo SuperGravity 70-584 (27.5x2.80) Tubeless Easy, ADDIX Soft, folding
Cockpit
head parts ACROS 1.8 semi-integrated tapered
stem RACE FACE Aeffect R 35 - diam 28.6 mm / bar bore 35 mm / 0° / length 50 mm
handlebar RACE FACE Chester 35 RiseBar - diam 35 mm / rise 35 mm / width 780 mm
grips KLS Poison
seat post KS Rage-i Remote Telescopic - diam 30.9 mm / length 442 mm, travel 150 mm (M) / length 495 mm, travel 170 mm (L)
saddle fi’zi:k Taiga, S-alloy rails
