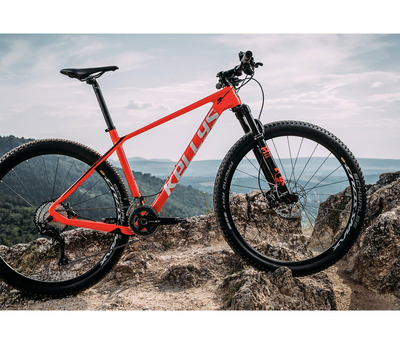

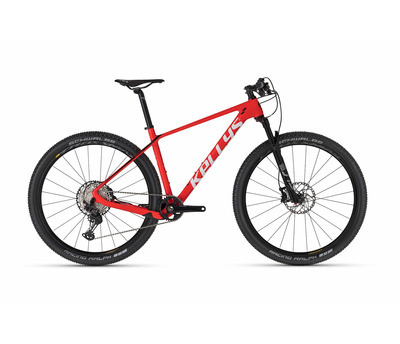

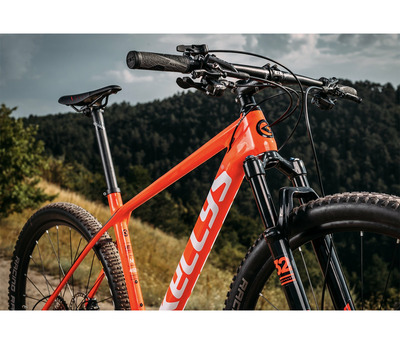

HACKER 70 29"
Rahmensatz

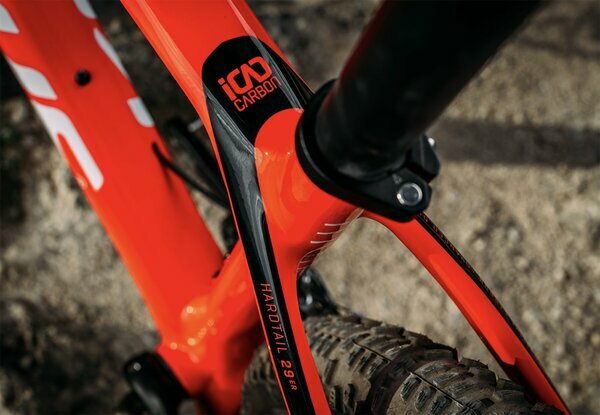

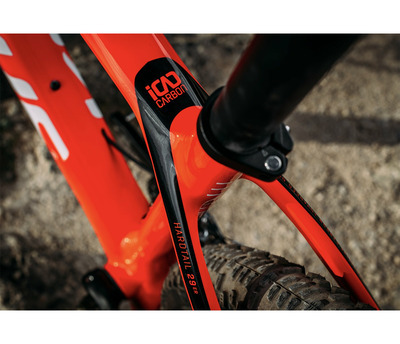

Rahmen KELLYS iCAD Carbon Pro 29", tapered HT, internal routing, 12x148 mm Boost thru axle
Gabel ROCK SHOX SID Select+ (29") Boost, 100 mm, DebonAir / Charger 2 RL / OneLoc Remote Lockout / Maxle Stealth 15 mm thru axle
Rahmengrössen M / L
Drive
Kurbelgarnitur SHIMANO Deore XT M8100-1 Hollowtech II (34T) - length 175 mm
Schaltwerk SHIMANO Deore XT M8100 (direct mount)
Schalthebel SHIMANO Deore XT SL-M8100-IR Rapidfire Plus (I-spec EV)
Gänge 12
Kassetenzahnkranz SHIMANO CS-M7100-12 (10-51T)
Kette KMC X12 (114 links)
Innenlager SHIMANO Press-Fit BB71-41A
Pedale Kunststoff
Freins

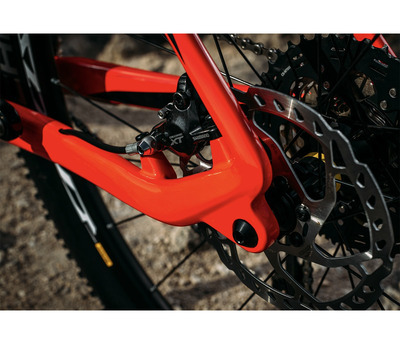

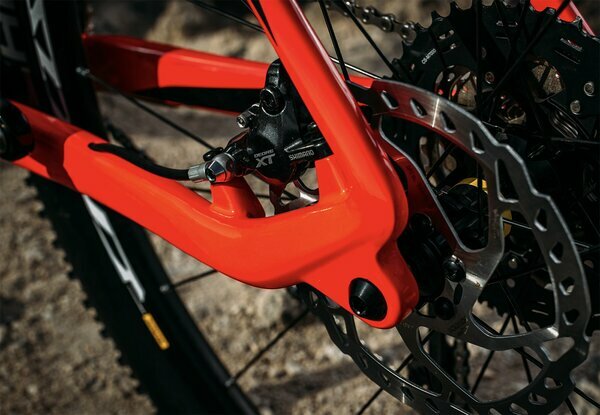

Bremsen SHIMANO Deore XT M8100 Hydraulic Disc
Bremshebel SHIMANO Deore XT BL-M8100
Bremsscheiben 180 mm front / 160 mm rear
Räder
Naben MAVIC Crossmax 29" or NOVATEC Disc (32 holes)
Felgen MAVIC Crossmax 29" alebo MAVIC X 1025 (32 holes)
Laufräder MAVIC Crossmax 29" (15x110 mm / 12x148 mm)
Speichen stainless steel black
Steckachse ROCK SHOX Maxle Stealth 15x110 mm front / Mr.control 12x177 mm rear
Vorderradreifen SCHWALBE Racing Ray Performance 57-622 (29"x2.25) folding
Hinterradreifen SCHWALBE Racing Ralph Performance 57-622 (29"x2.25) folding
Cockpit

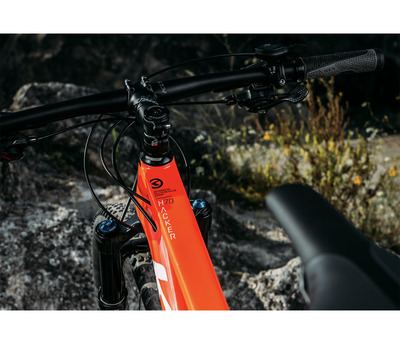

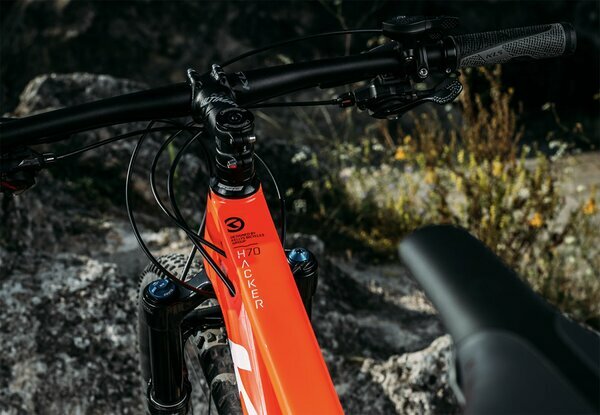

Steuersatz FSA 1.5 integrated
Vorbau KLS Ultimate - diam 28.6 mm / bar bore 31.8 mm / 7° / length 80 mm (M), 90 mm (L)
Lenker KLS Ultimate FlatBar - diam 31.8 mm / width 720 mm
Griffe KLS Poison OneLockon
Sattelstütze KLS Ultimate - diam 30.9 mm / length 400 mm
Sattel fi´zi:k Antares R7 S-alloy rails
