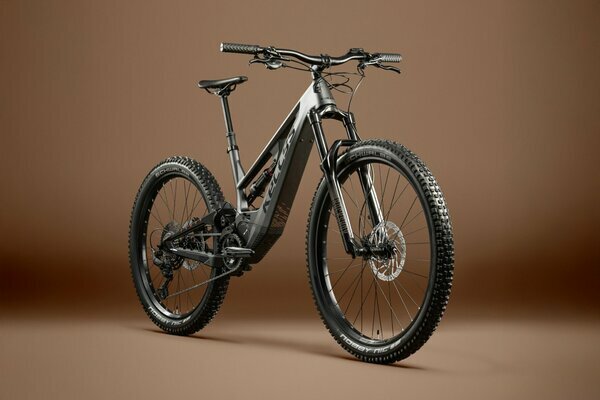

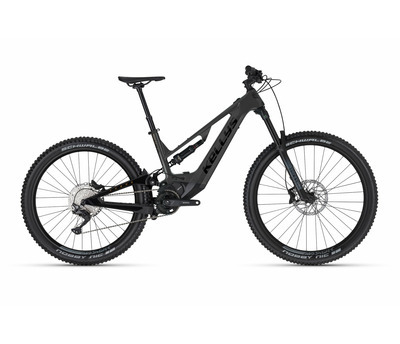

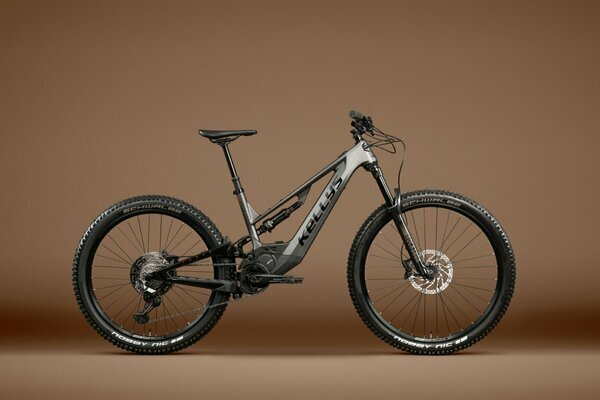

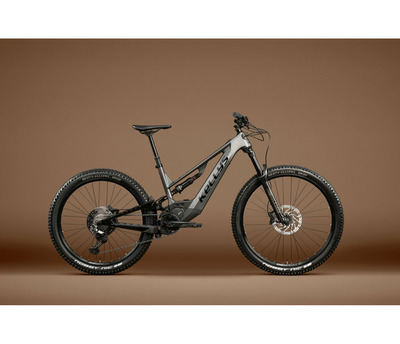

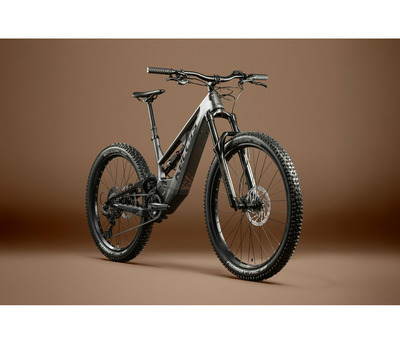

THEOS F50 SH ANTHRACITE 29/27.5" 725 Wh
Full-suspension electric mountain bike
3 999,00 €*
Launch price: 5 499,00 €
* Manufacturer's recommended retail price
-
Out of stock
-
EAN: 8585053813828
Frame set

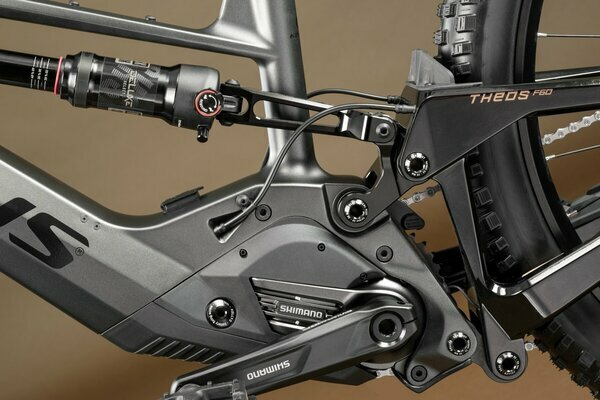

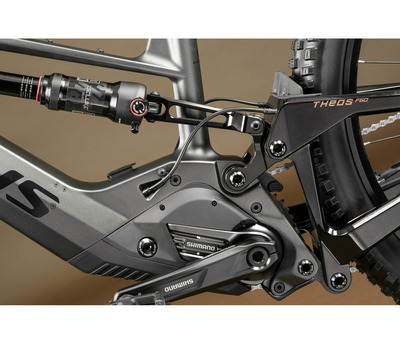

frame KELLYS THEOS F100 Carbon-Aramid Composite / Designed & manufactured in EUROPE / Think Link® suspension system, 140 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29/27.5"+ wheelset, 12x148 mm Boost thru axle
fork ROCK SHOX 35 GOLD RL (29") Boost, 150 mm, DebonAir / Motion Control / Maxle Stealth 15 mm thru axle
rear shock ROCK SHOX Deluxe Select R, DebonAir (210x55 mm)
frame size M / L
Drive
motor SHIMANO EP800, 85 Nm, 36 V
battery KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by KELLYS-BMZ
computer display SHIMANO SC-E5003 cycle computer with assist switch
crankset SHIMANO EM600 (34T) - length 170 mm
rear derailleur SHIMANO Deore M5120 (direct mount)
shifters SHIMANO Deore SL-M4100-R Rapidfire Plus (I-Spec EV)
speed 10
cassette sprocket SHIMANO CS-M4100-10 (11-46T)
chain KMC e10T (120 links)
Brakes
brakes SHIMANO MT420 Hydraulic Disc
brake levers SHIMANO Deore BL-M4100
brake rotors 203 mm front / 203 mm rear
Wheels
hubs SHIMANO MT400-B Disc Center Lock (32 holes)
rims KLS Bender Disc 622x38 front / 584x38 rear (32 holes)
spokes stainless steel black
thru axle ROCK SHOX Maxle Stealth 15x110 mm front / Mr.control 12x177 mm rear
front tyre SCHWALBE Nobby Nic Performance 65-622 (29x2.60) ADDIX
rear tyre SCHWALBE Nobby Nic Performance 70-584 (27.5x2.80) ADDIX
Cockpit

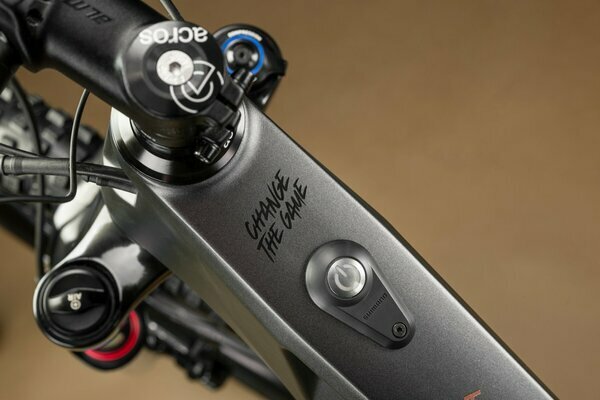

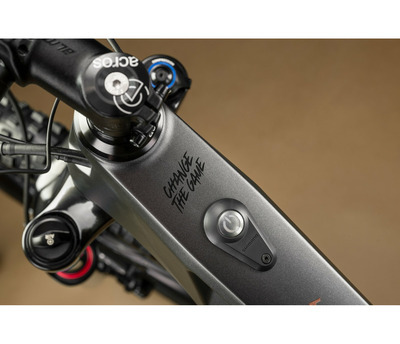

head parts ACROS 1.8 semi-integrated tapered
stem KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / length 60 mm
handlebar KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / šírka 760 mm
grips KLS Poison OneLockon
seat post KS Rage-i Remote Telescopic - diam 30.9 mm / length 442 mm, travel 150 mm

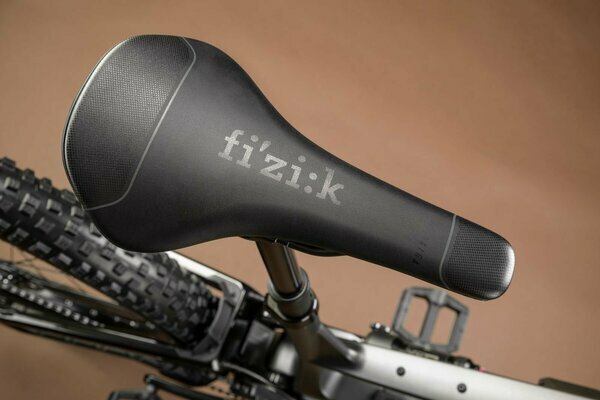

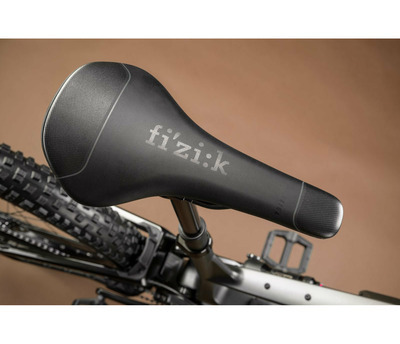

saddle fi’zi:k Taiga, S-alloy rails
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
