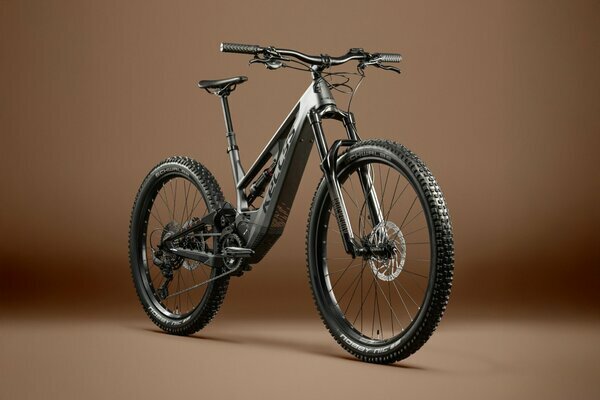

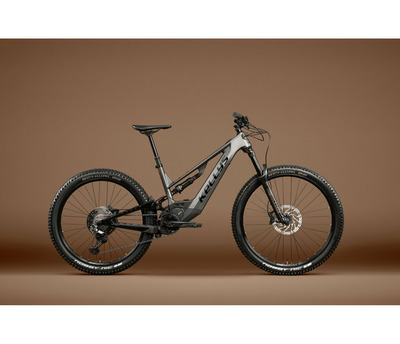

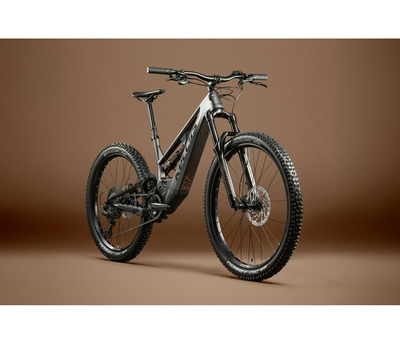

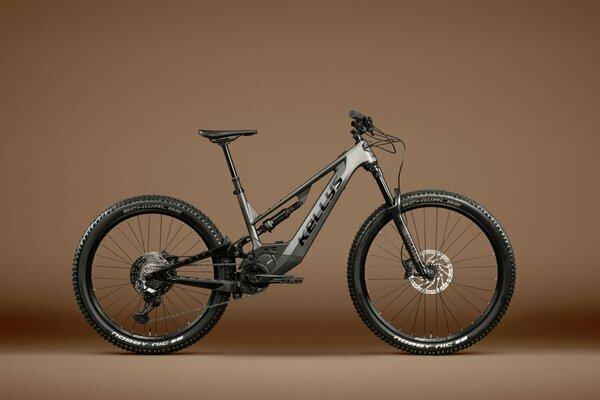

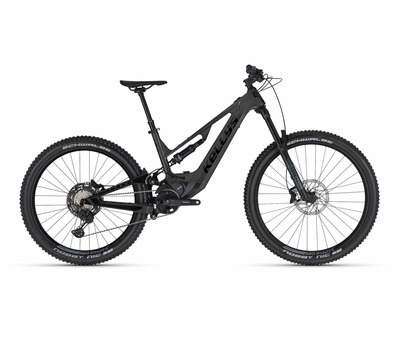

THEOS F60 SH ANTHRACITE 29/27.5" 725 Wh
Full-suspension electric mountain bike
4 799,00 €*
Launch price: 4 999,00 €
* Manufacturer's recommended retail price
-
EAN: 8585053821274
Frame set
frame KELLYS THEOS F100 Carbon-Aramid Composite / Designed & manufactured in EUROPE / Think Link® suspension system, 140 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29/27.5"+ wheelset, 12x148 mm Boost thru axle
fork ROCK SHOX 35 GOLD RL (29") Boost, 150 mm, DebonAir / Motion Control / Maxle Stealth 15 mm thru axle
rear shock ROCK SHOX Deluxe Select R, DebonAir (210x55 mm)
frame size M / L
Drive

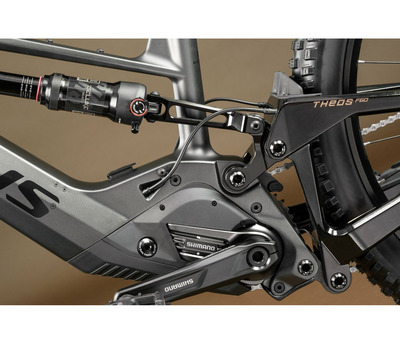

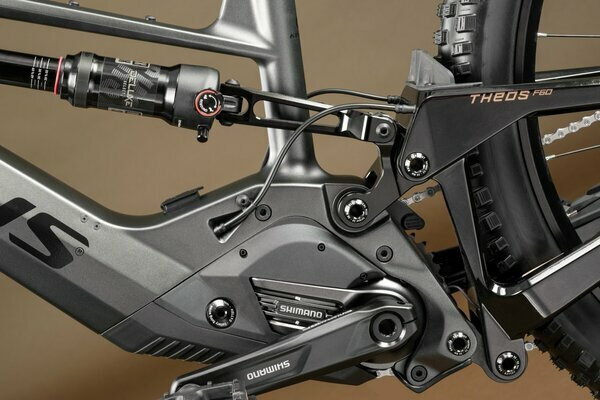

motor SHIMANO EP8, 85 Nm, 36 V
battery KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by Kellys-BMZ

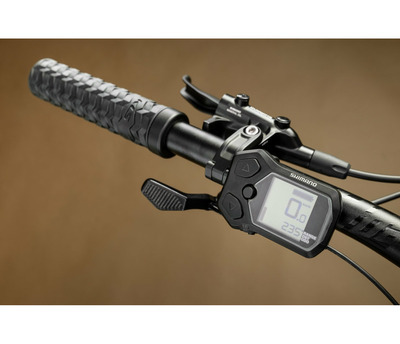

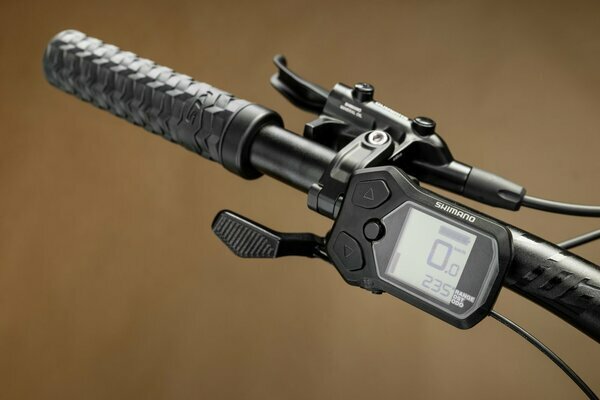

computer display SHIMANO SC-E5003 cycle computer with assist switch
crankset SHIMANO EM600 / CRE70-B (34T) - length 170 mm
rear derailleur SHIMANO Deore XT Linkglide M8130 (direct mount)
shifters SHIMANO Deore XT Linkglide SL-M8130-R Rapidfire Plus (I-Spec EV)
speed 11
cassette sprocket SHIMANO Linkglide CS-LG600-11 (11-50T)
chain SHIMANO Linkglide CN-LG500
Brakes
brakes SHIMANO MT420 Hydraulic Disc
brake levers SHIMANO Deore BL-M4100
brake rotors 203 mm front / 203 mm rear
Wheels
hubs SHIMANO MT400-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
rims KLS Bender Disc 622x38 front / 584x38 rear (32 holes)
spokes stainless steel black
thru axle ROCK SHOX Maxle Stealth 15x110 mm front / Mr.control 12x177 mm rear
front tyre SCHWALBE Nobby Nic Performance 65-622 (29"x2.60) ADDIX
rear tyre SCHWALBE Nobby Nic Performance 70-584 (27.5"x2.80) ADDIX
Cockpit

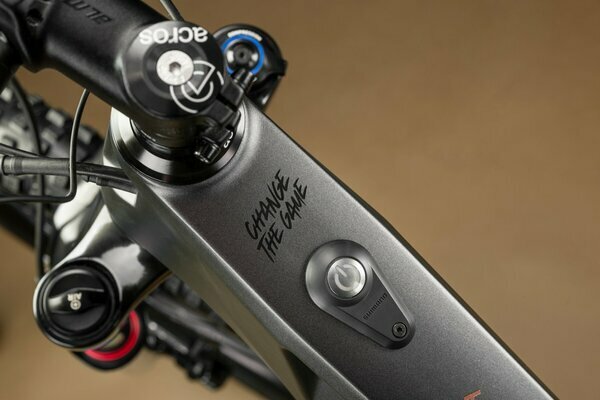

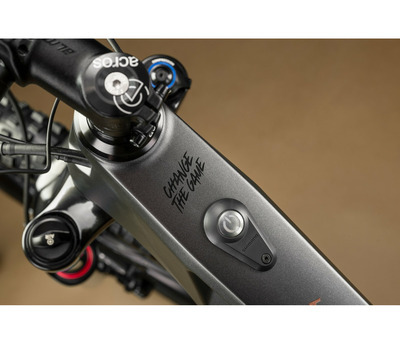

head parts ACROS 1.8 semi-integrated tapered
stem KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / length 60 mm
handlebar KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / šírka 760 mm
grips KLS Poison OneLockon
seat post LIMOTEC A1 Remote Telescopic - diam 30.9 mm / length 445 mm, travel 150 mm
saddle fi’zi:k Taiga, S-alloy rails
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
