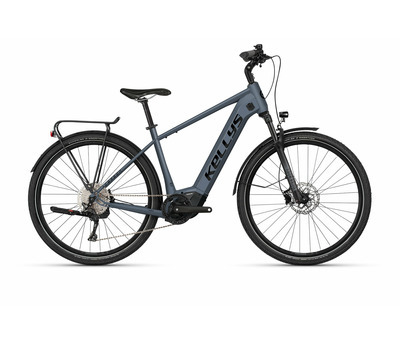

E-CARSON 70 P 725 Wh
Trekking electric bike
3 299,00 €*
Launch price: 3 599,00 €
* Manufacturer's recommended retail price
-
Out of stock
-
EAN: 8585053829423
Frame set
frame KELLYS E-CARSON R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5“ tapered HT
fork ROCK SHOX Recon Silver RL (29") Boost, 100 mm, Solo Air / Motion Control / Maxle Stealth 15 mm thru axle
frame size M / L / XL
Drive
motor PANASONIC GX Ultimate, 95 Nm, 36 V
battery KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ
switch unit PANASONIC
computer display PANASONIC Bluetooth® 5.0 navigation Side Color Display
crankset MIRANDA Delta (36T) - length 170 mm
rear derailleur SHIMANO Cues U6000 (direct mount)
shifters SHIMANO Cues SL-U6000-10 Rapidfire Plus
speed 10
cassette sprocket SHIMANO Linkglide CS-LG300-10 (11-48T)
chain SHIMANO Linkglide CN-LG500 (122 links)
pedals plastic
Brakes
brakes SHIMANO MT200 Hydraulic Disc
brake levers SHIMANO BL-MT200
brake rotors 180 mm front / 180 mm rear
Wheels
hubs SHIMANO MT400-B / Alivio M4050 Disc Center Lock (32 holes)
rims KLS Draft Disc 622x21 (32 holes)
spokes stainless steel black
tyres SCHWALBE Marathon Almotion Performance 55-622 (28"x2.15) ReflectiveLine
thru axle ROCK SHOX Maxle Stealth 15x110 mm front
fenders
aluminium
Cockpit
head parts FSA 1.5 semi-integrated
stem PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 105 mm
handlebar KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 700 mm
grips KLS Wave 2Density ergonomic
seat post KLS Active - diam 30.9 mm / length 350 mm
saddle SELLE ROYAL Lookin Visual Royalgel
front light
TRELOCK Veo 50
rear light
TRELOCK Duo Flat
accessories
alloy carrier, adjustable kickstand, bell
