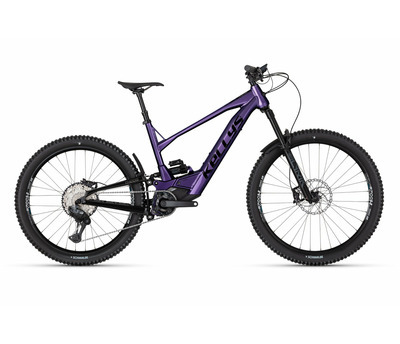

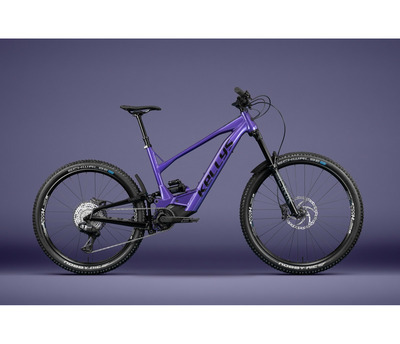

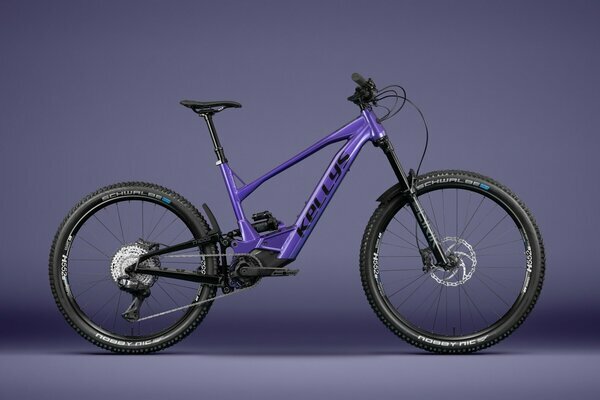

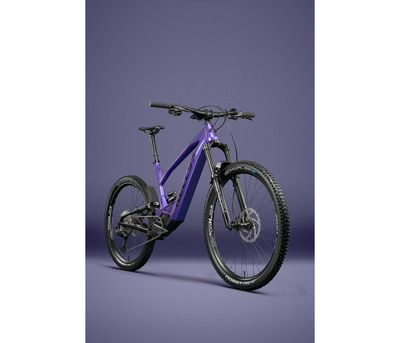

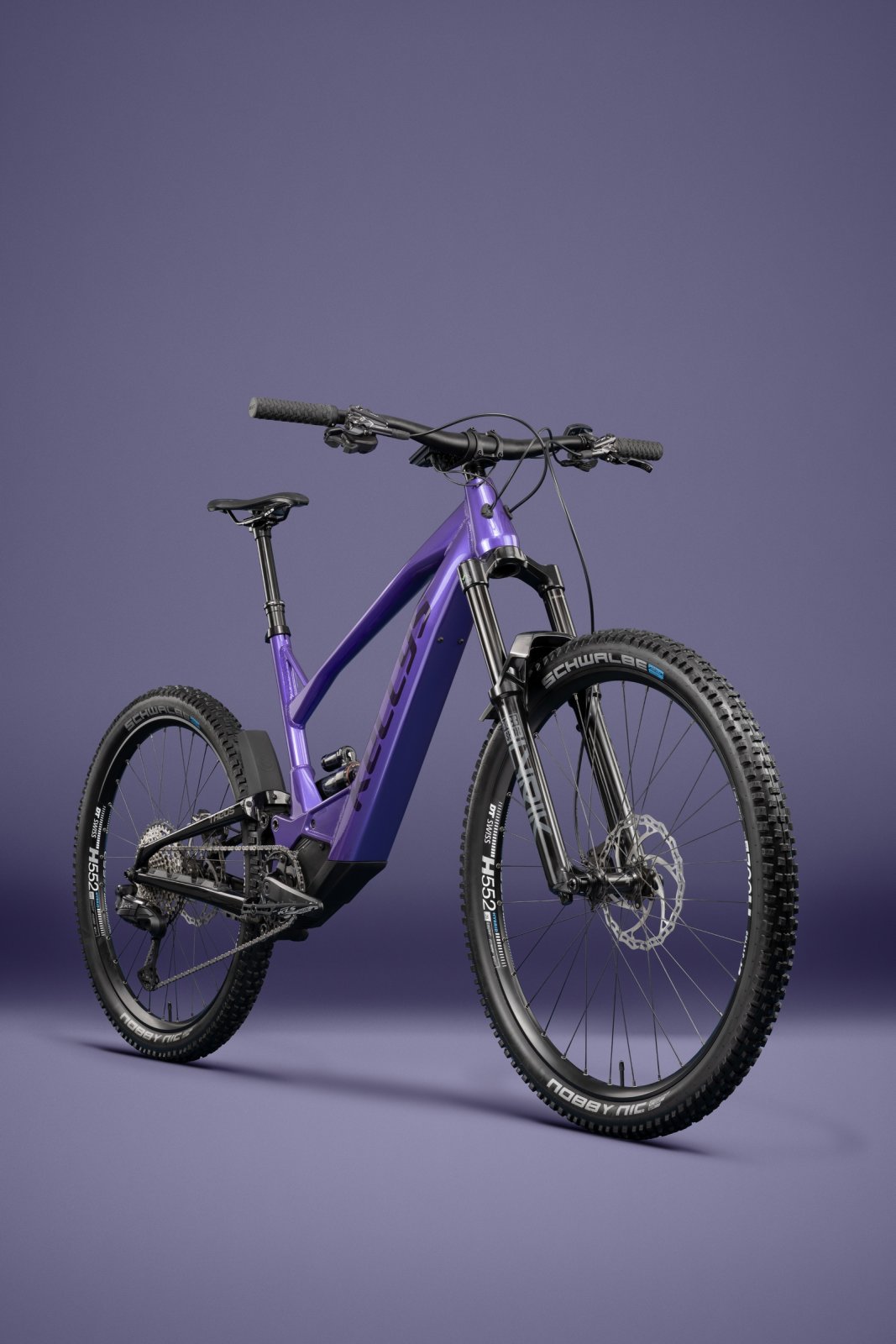

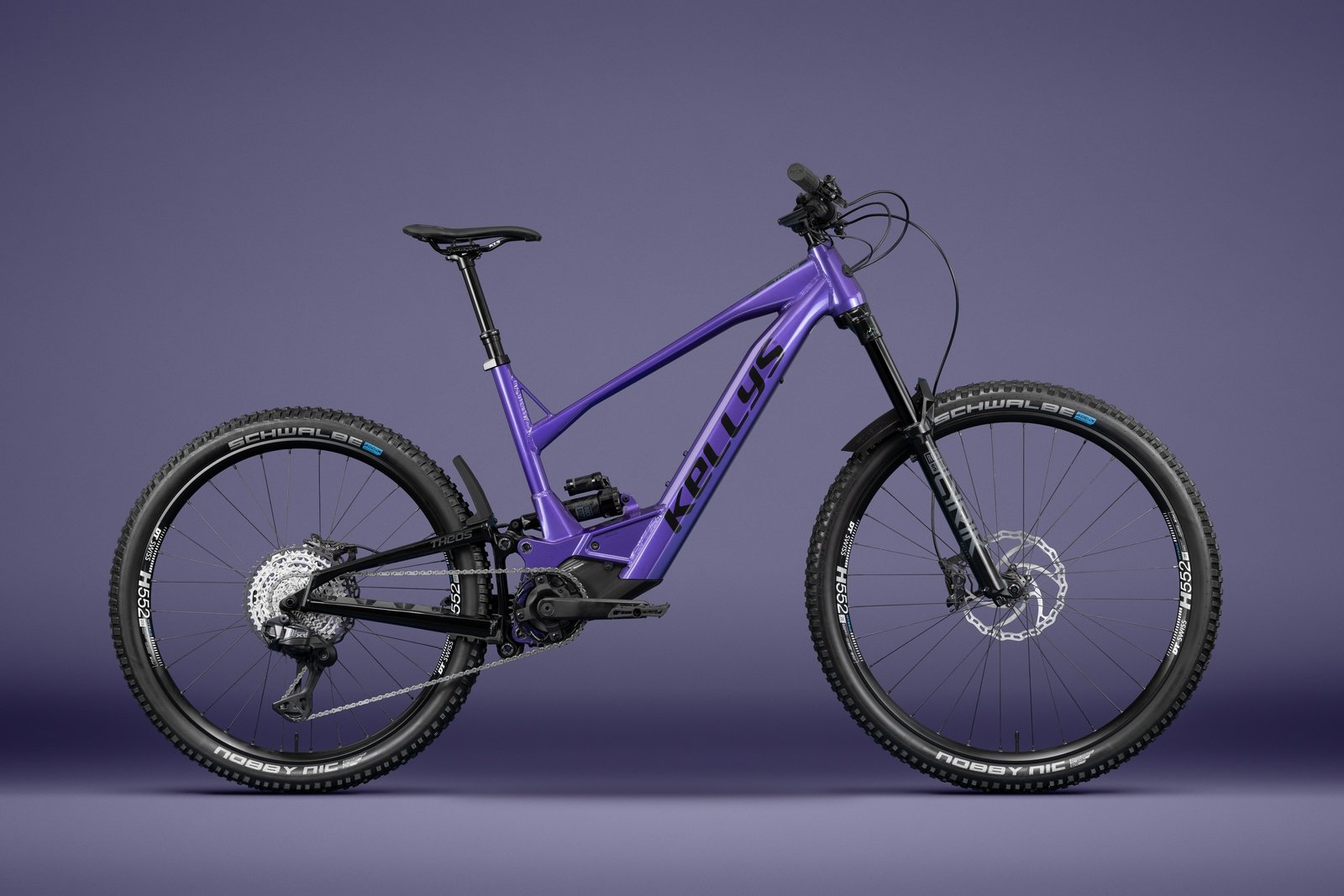

THEOS RS90 P ROYAL PURPLE 29/27.5" 900 Wh

New

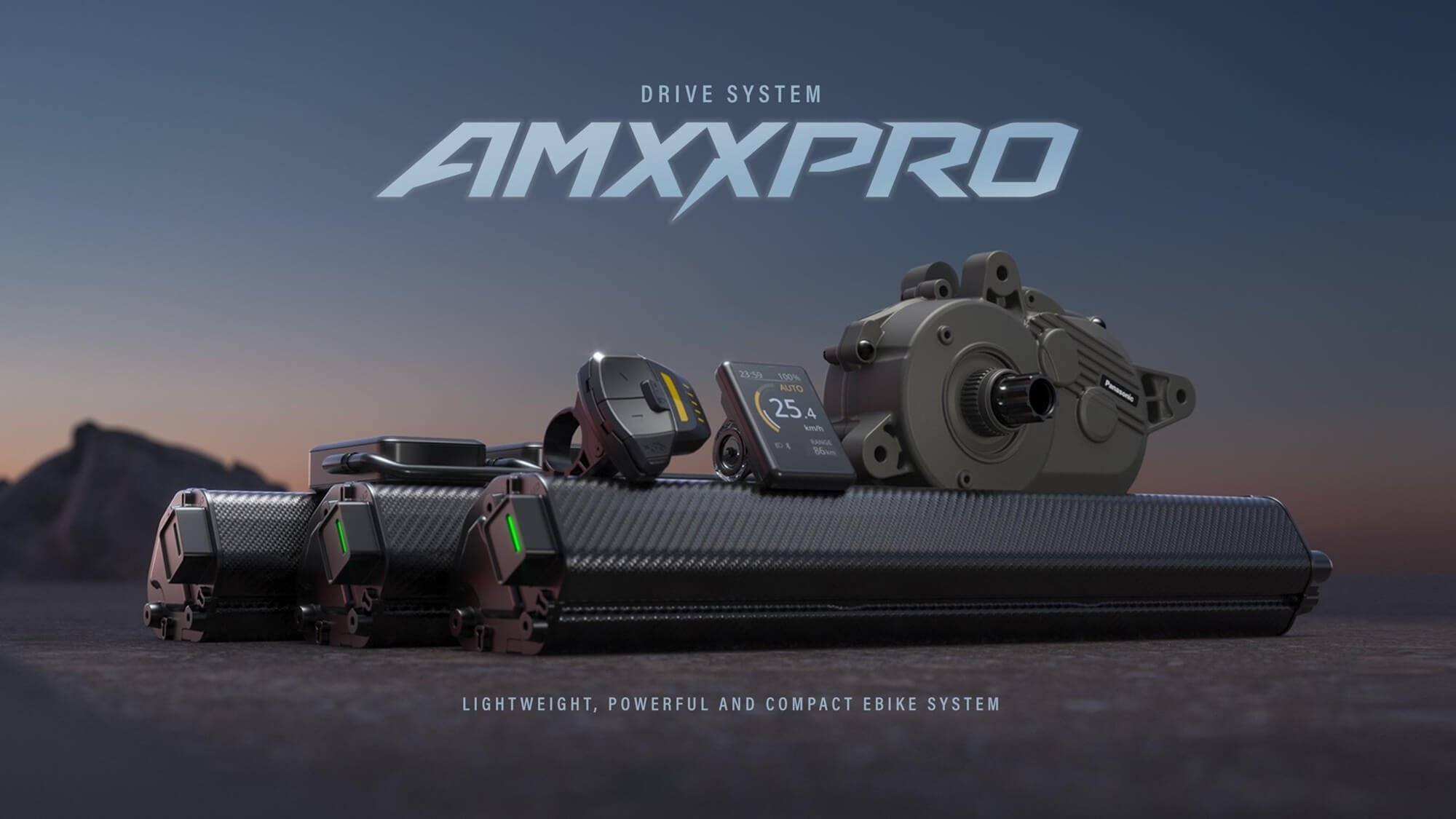

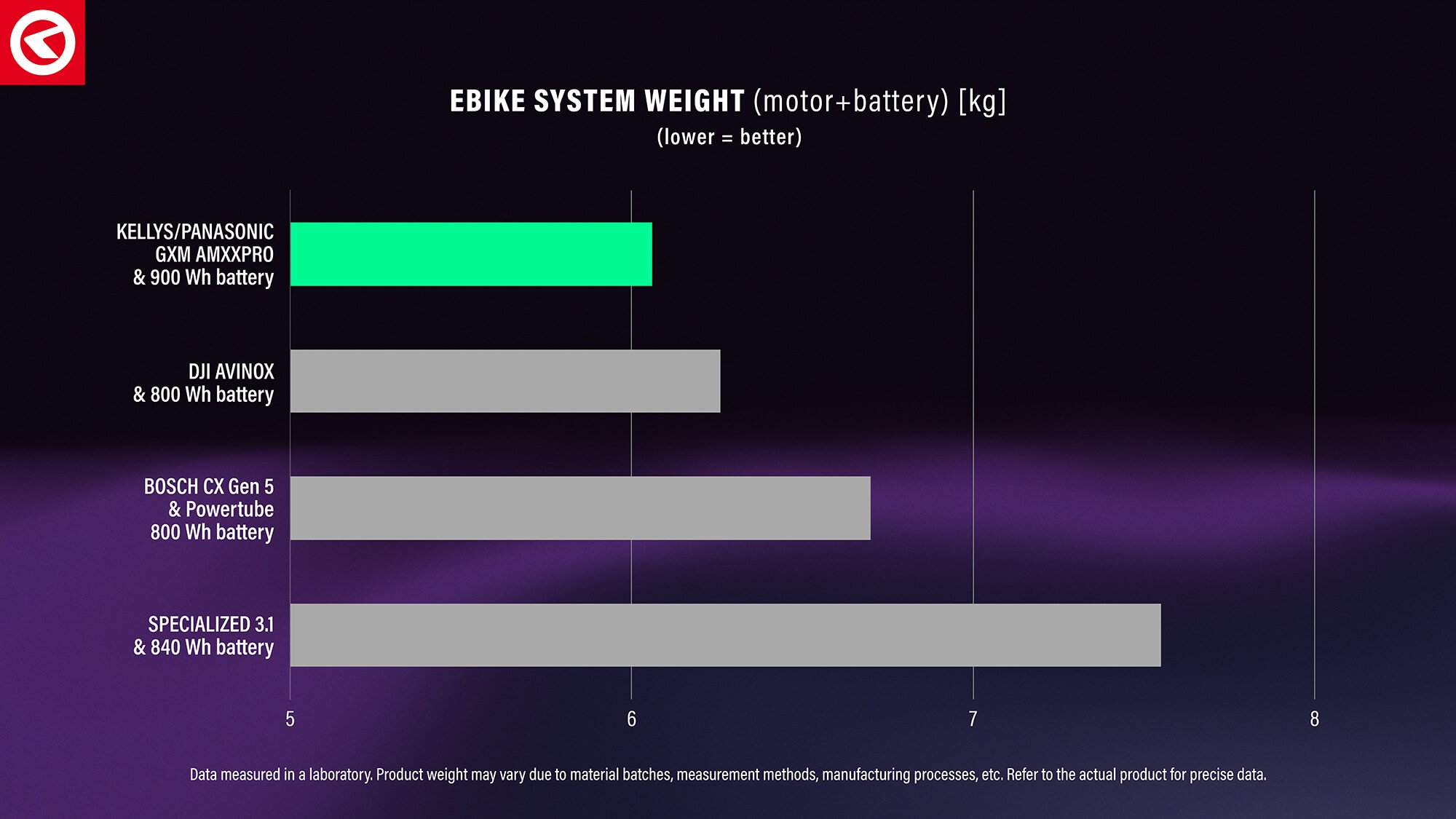

Weight and range are crucial. That’s why we created AMXXPRO: the world’s lightest full-power e-bike system, from just 6.1 kg.

The new AMXXPRO system, powering our entire new 2026 Kellys e-bike range, combines ultra-light components: a carbon battery and a high-performance magnesium motor.

• PANASONIC GXM AMXXPRO motor: Co-developed by Kellys and Panasonic, with a specialized magnesium construction and weighing just 2.56 kg, it delivers powerful performance with up to 105 Nm of torque.

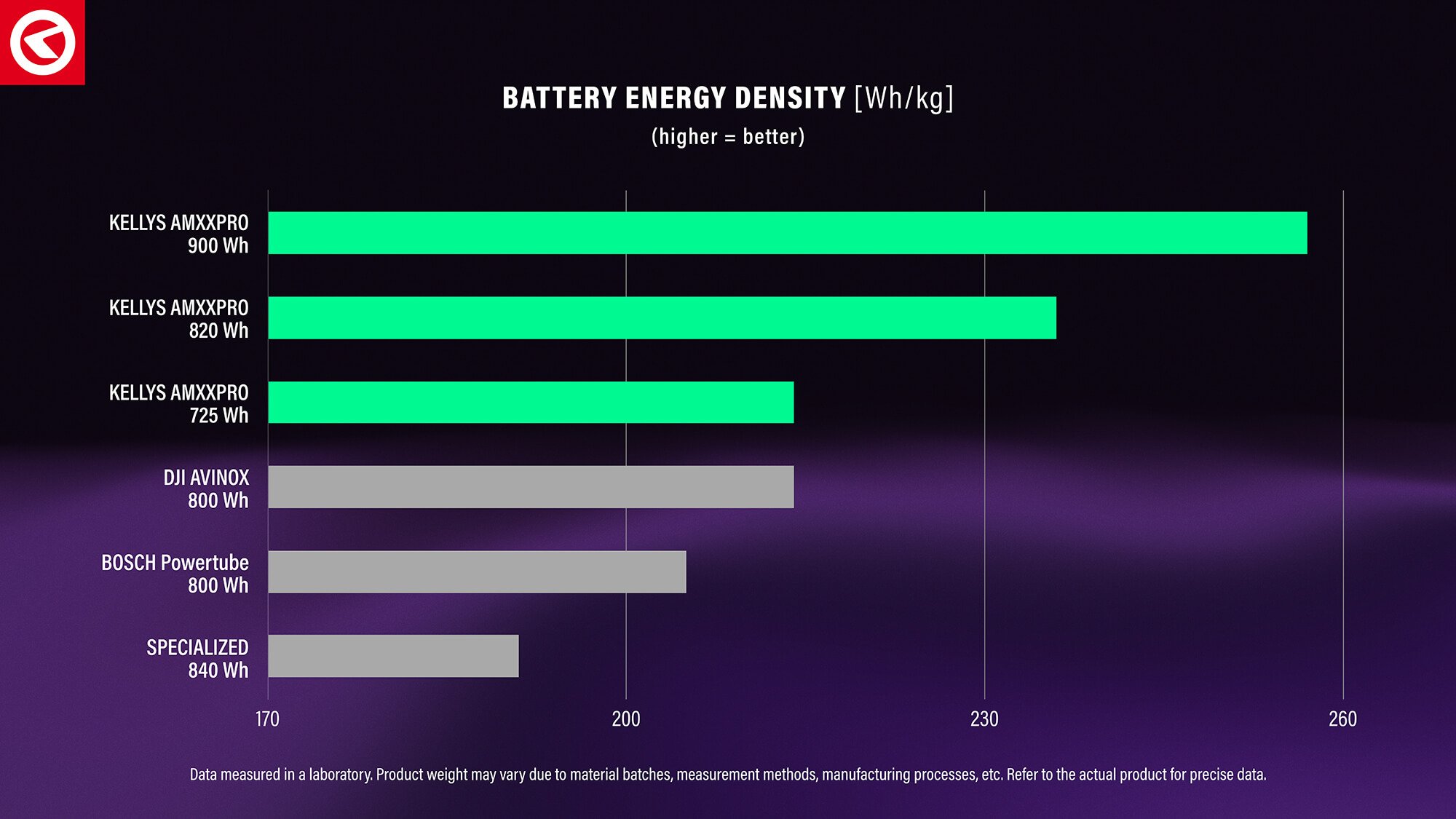

• KELLYS K2 AMXXPRO carbon batteries: Weighing up to 3.5 kg, available in 900 Wh, 820 Wh, and 725 Wh versions. With an energy density of up to 257 Wh/kg, they are up to 20% lighter than competing solutions while offering higher-capacity options.

AMXXPRO delivers more power and longer range with less total e-bike weight. No compromises - just a better riding experience.

Jeu de cadres

Cadre

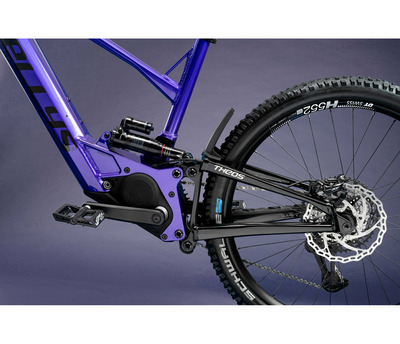

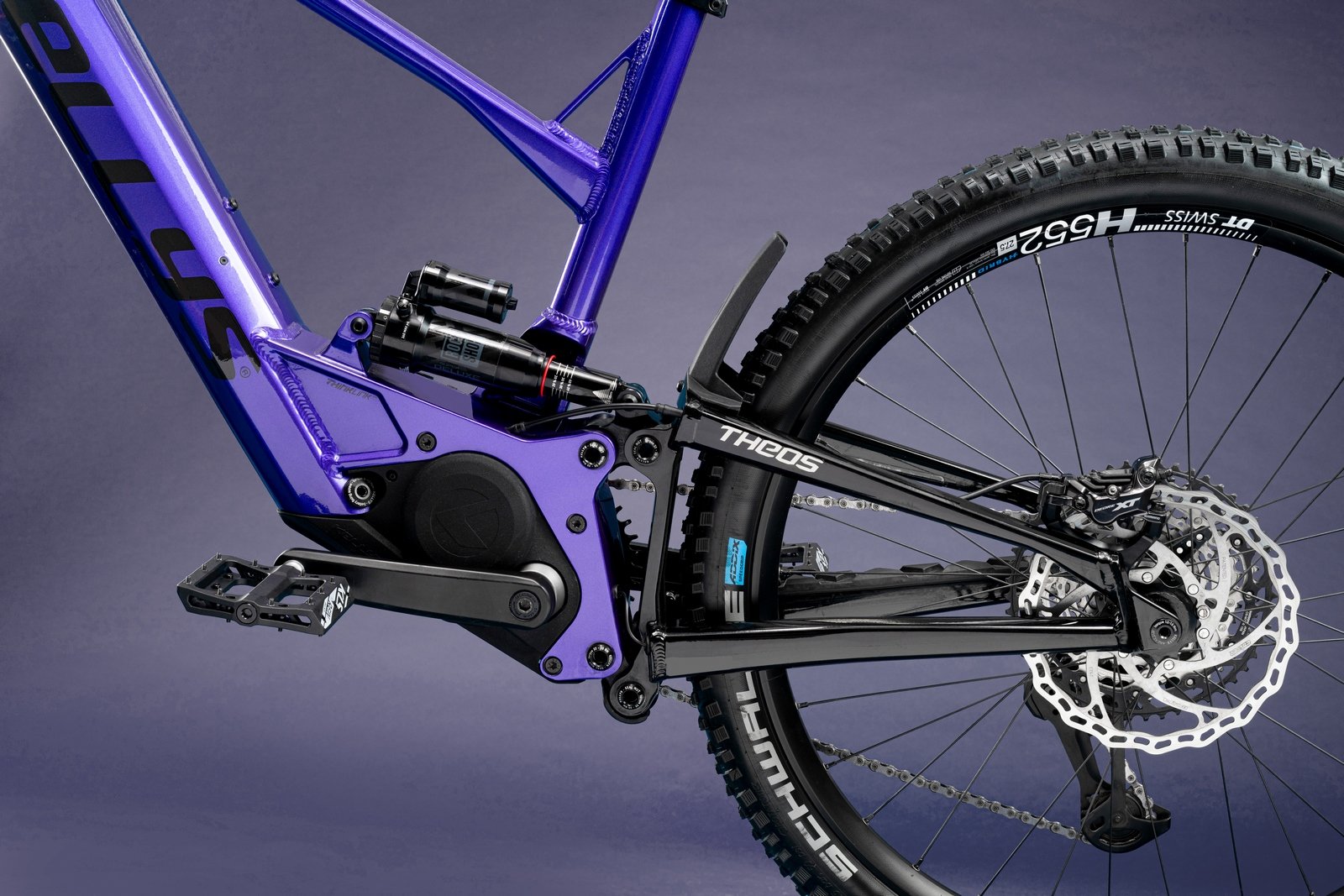

KELLYS THEOS RS-series - Superlight design, advanced robotic welded Al 6061-T6 / Designed & manufactured in EUROPE / Think Link® suspension system, 140 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29 / 27.5"+ wheelset, 12x148 mm Boost thru axle

Fourche

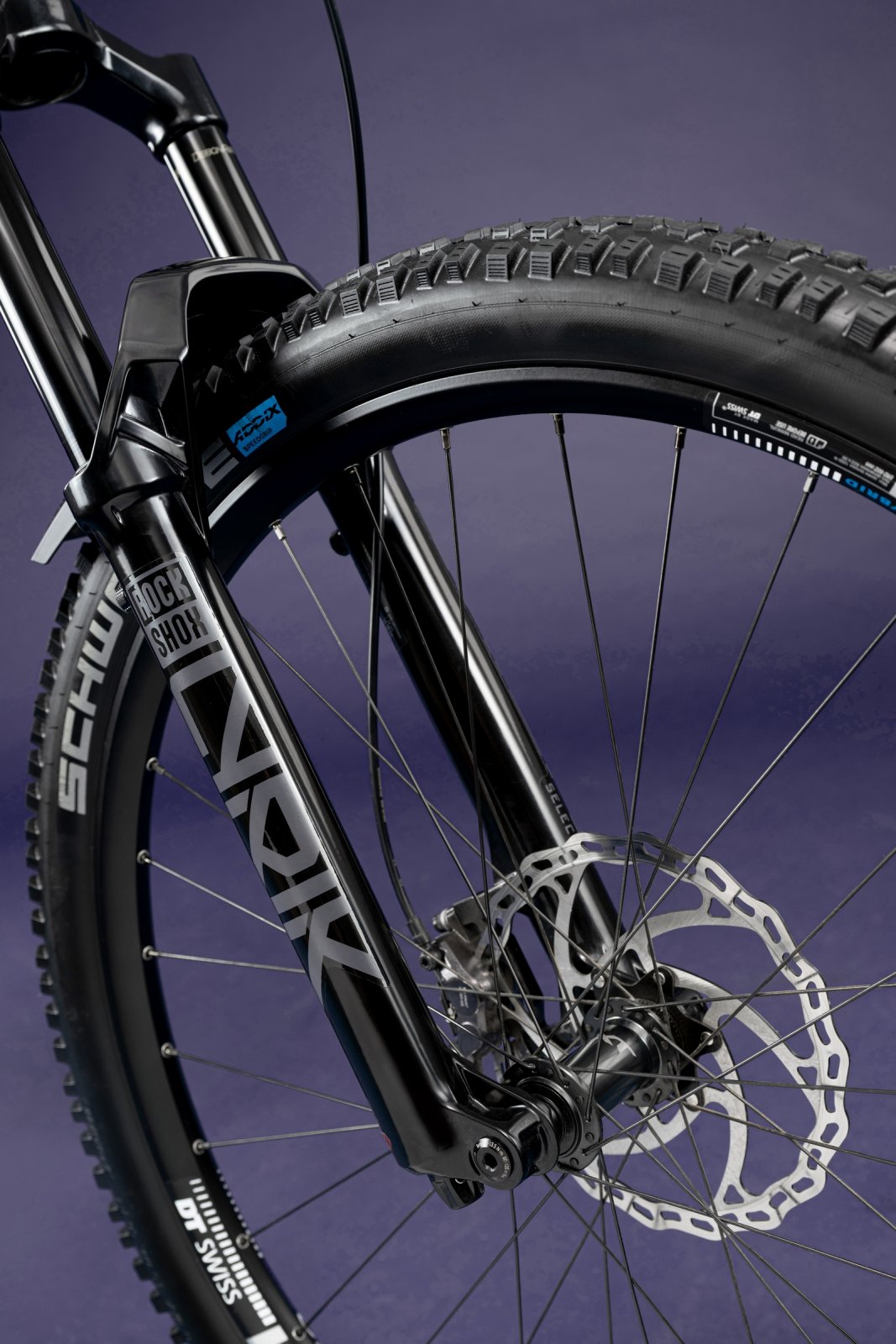

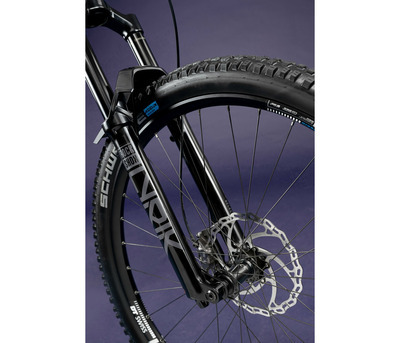

ROCK SHOX Lyric Select (29") Boost, 160 mm, DebonAir+ / Charger RC damper / Maxle Stealth 15 mm thru axle

Amortisseur arrière

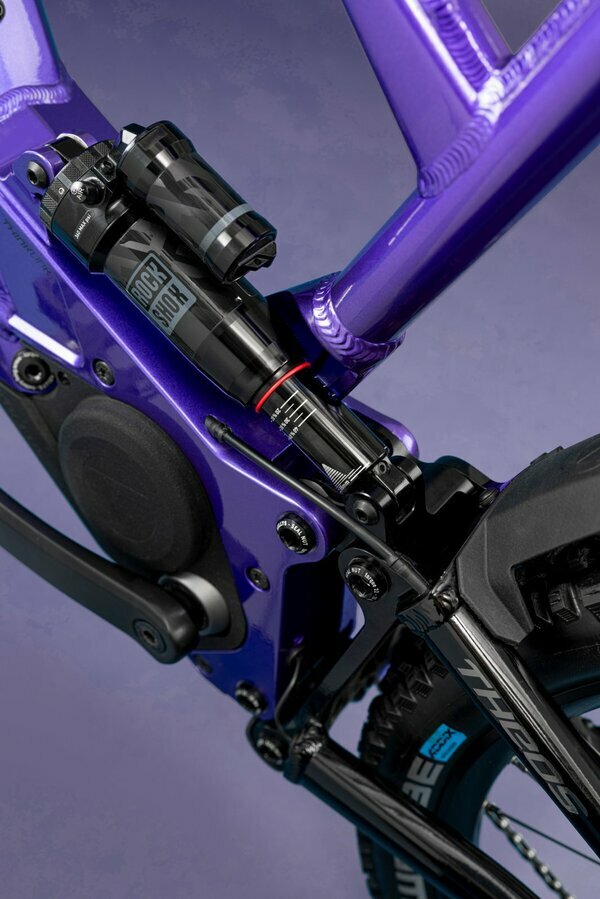

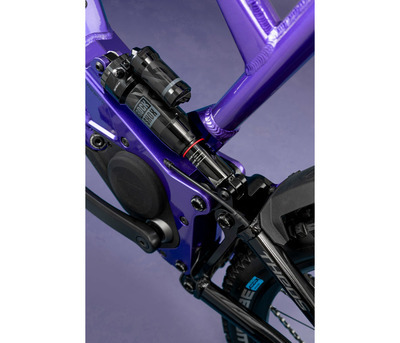

ROCK SHOX Super Deluxe, DebonAir+ / R Hydraulic Bottom Out (210x55 mm)

Taille de cadre

M / L

Drive

motor

PANASONIC GXM AMXXPRO - Compact, High Torque & Low weight drive unit, max torque 105 Nm, weight 2.56 kg

battery

KELLYS K2 AMXXPRO CARBON 900 Wh - superhigh energy density 257 Wh/kg, weight 3.5 kg, capacity 25 Ah, co-developed by KELLYS-BMZ

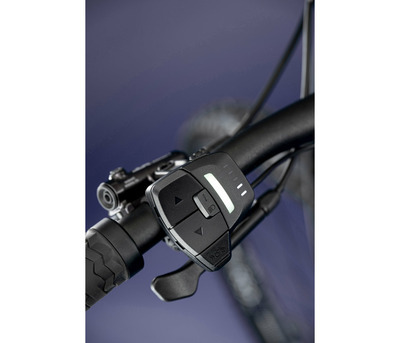

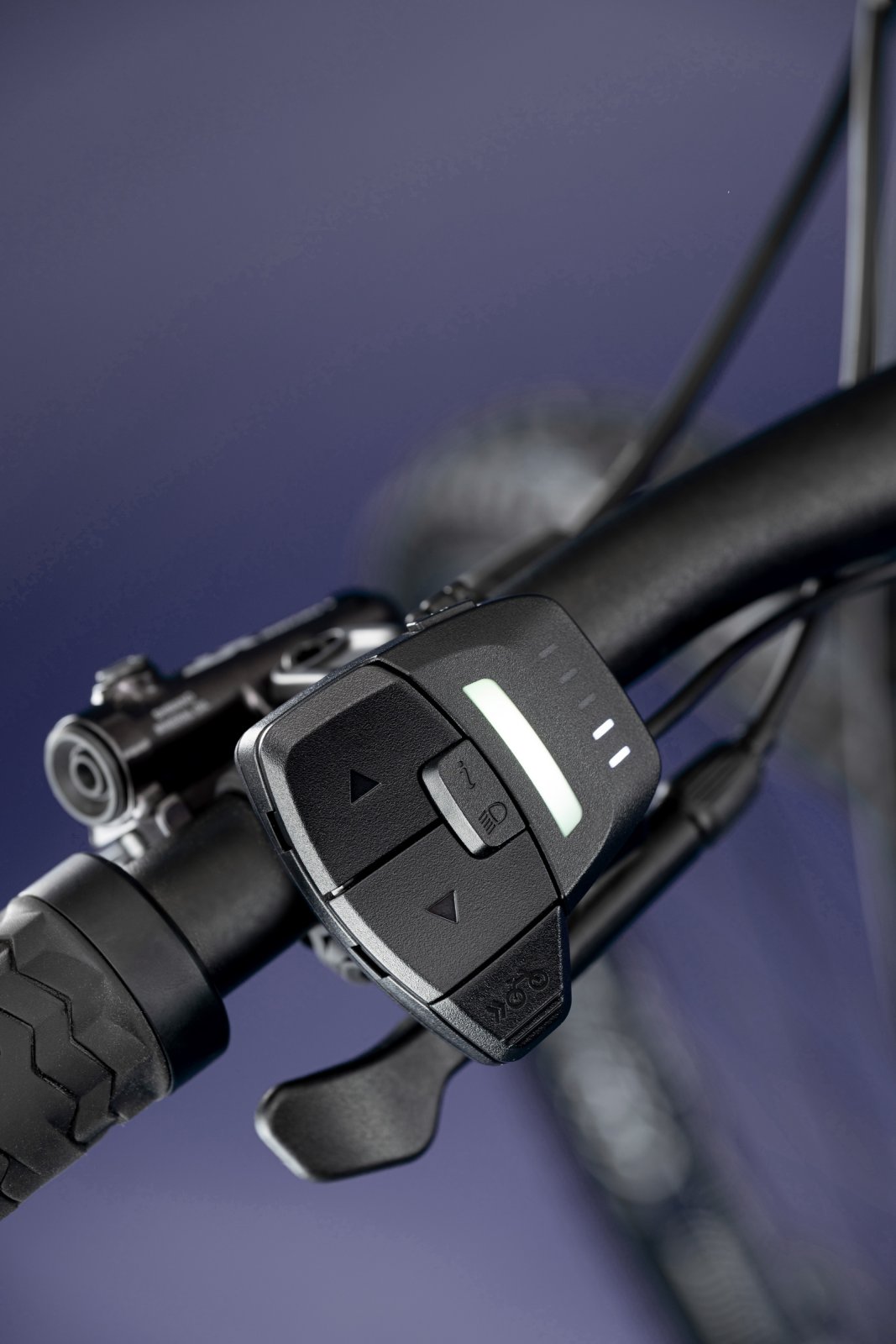

switch unit

PANASONIC

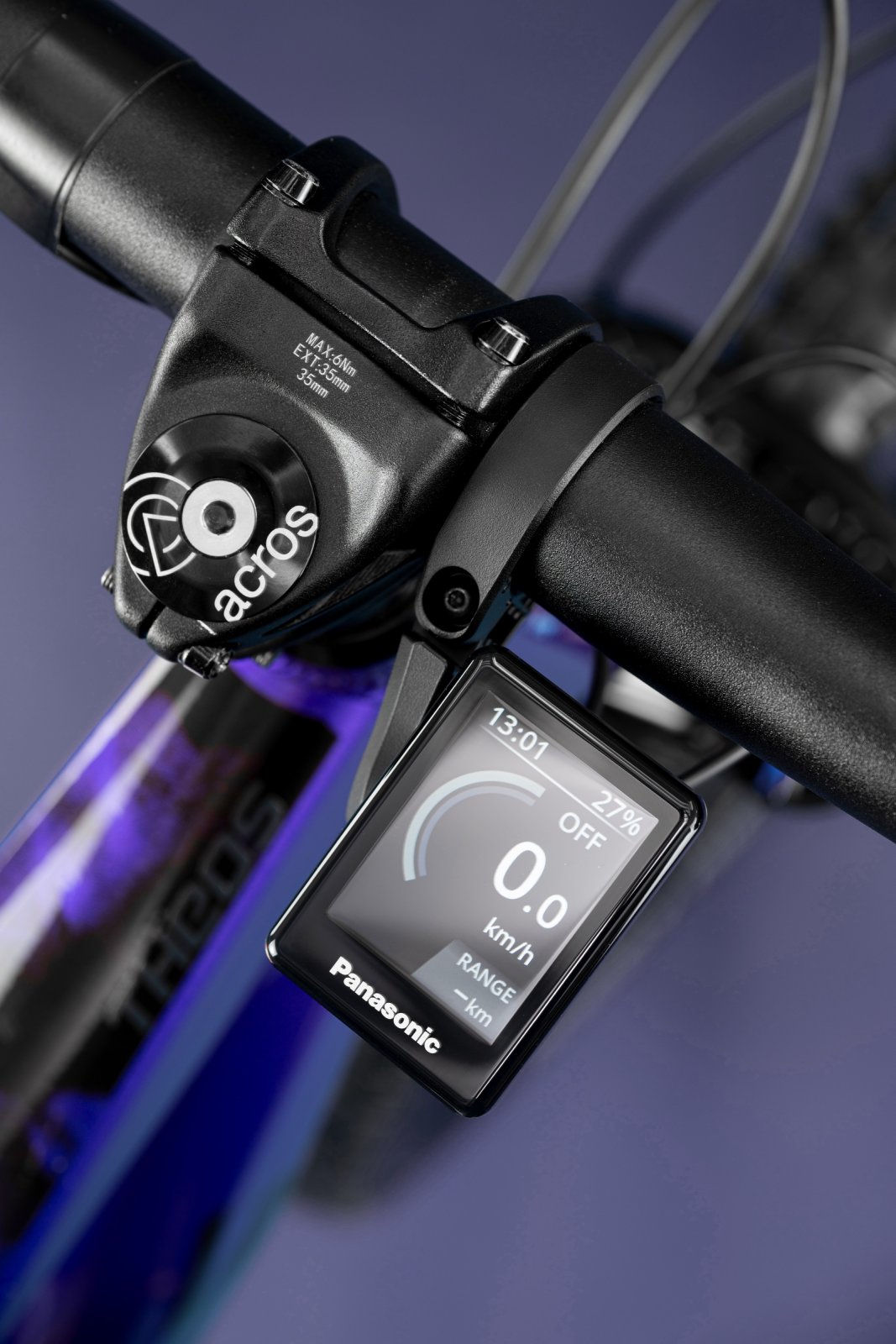

computer display

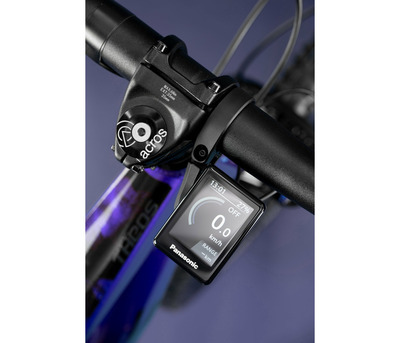

PANASONIC GXM Center Display 501 - Bluetooth® 5.0 navigation, PANASONIC App conectivity

Manivelles

MIRANDA Miranda (34T) - length 170 mm

Dérailleur arrière

SHIMANO Deore XT Di2 M8250 (direct mount)

Manettes

SHIMANO Deore XT Di2 SW-M8250-IR (I-Spec EV)

Vitesses

Cassette

SHIMANO CS-M7100-12 (10-51T)

Chaîne

SHIMANO CN-M6100

Pédales

plastic

Hamulce

Freins

SHIMANO Deore XT M8120 Hydraulic Disc

Lèviers de frein

SHIMANO Deore XT BL-M8100

disques de frein

GALFER Fixed Disc Wave® DB004W Center Lock, 203 mm front / 203 mm rear

Roues

Moyeux

SHIMANO Deore XT M8210-B Disc Center Lock (32 holes)

Jantes

DT SWISS H 552 Disc 622x30 front / DT SWISS H 552 584x30 rear (32 holes)

axe traversant

ROCK SHOX Maxle Stealth 15x110 mm front

Pneu arrière

SCHWALBE Albert Evo Trail Pro 63-584 (27.5"x2.50) TLR, ADDIX Soft, folding

Pneu avant

SCHWALBE Albert Evo Trail Pro 63-622 (29"x2.50) TLR, ADDIX Ultra Soft, folding

Cockpit

Jeu de direction

ACROS 1.8" tapered semi-integrated

Potence

KLS Alm/En 50 - diam 28.6 mm / bar bore 35 mm / length 35 mm

Cintres

KLS Alm/En 70 RiseBar - diam 35 mm / rise 20 mm / width 780 mm

Poignée

KLS Poison OneLockon

Tige de selle

KS Rage-i Remote Telescopic - diam 30.9 mm / length 495 mm, travel 170 mm

Selle

KLS Ascend

Veľkosť rámu THEOS RS90 P ROYAL PURPLE 29/27.5" 900 Wh

Geometria THEOS RS90 P ROYAL PURPLE 29/27.5" 900 Wh
