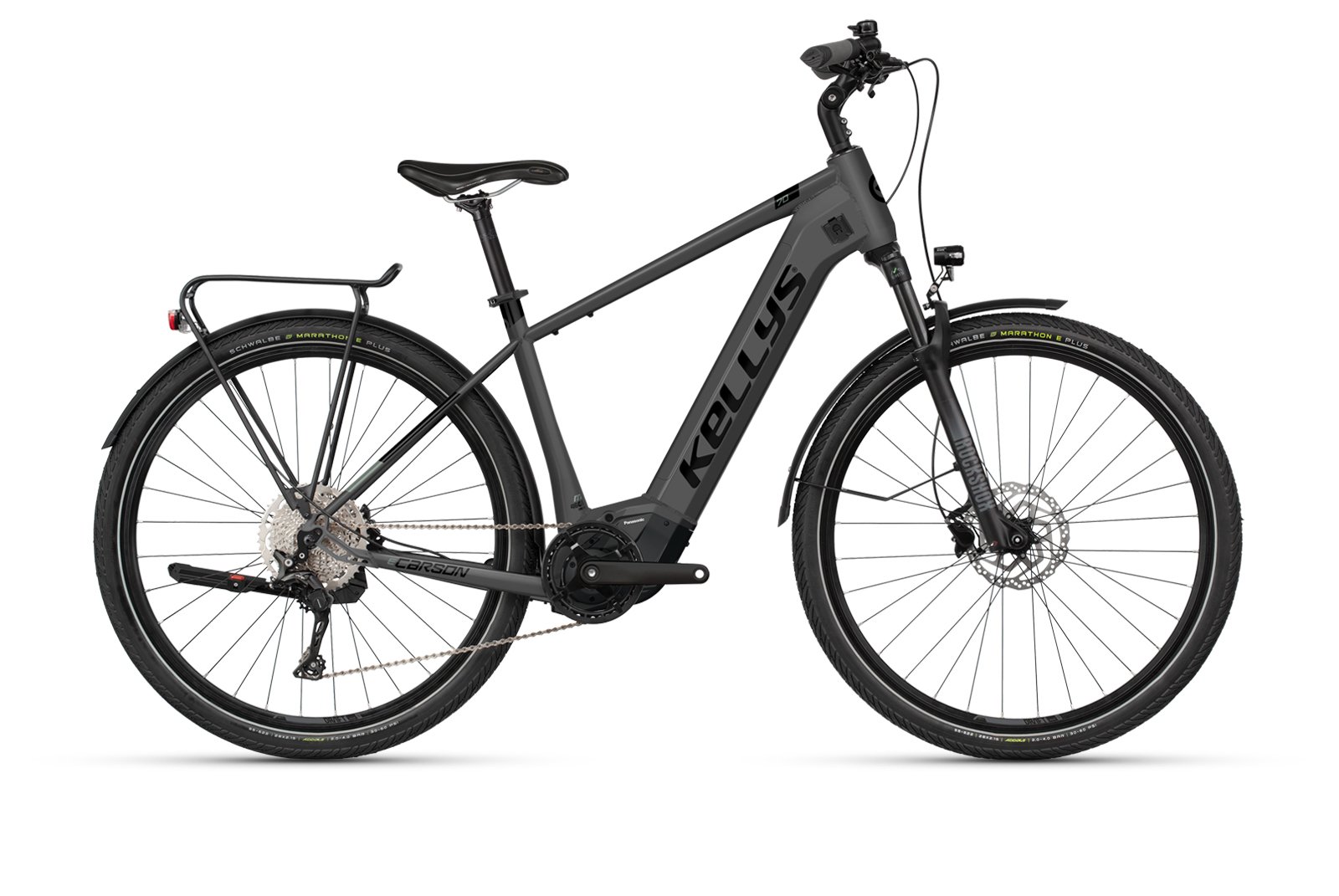

E-CARSON 70 P 725 Wh
Trekking electric bike
Frame set
frame KELLYS E-CARSON R-series - advanced robotic welded 6-series aluminium alloy, integrated removable battery, 1.5“ tapered HT / Made in EU
fork ROCK SHOX Recon Silver RL (29) Boost, 100 mm, Solo Air / Motion Control / Maxle Stealth 15 mm thru axle

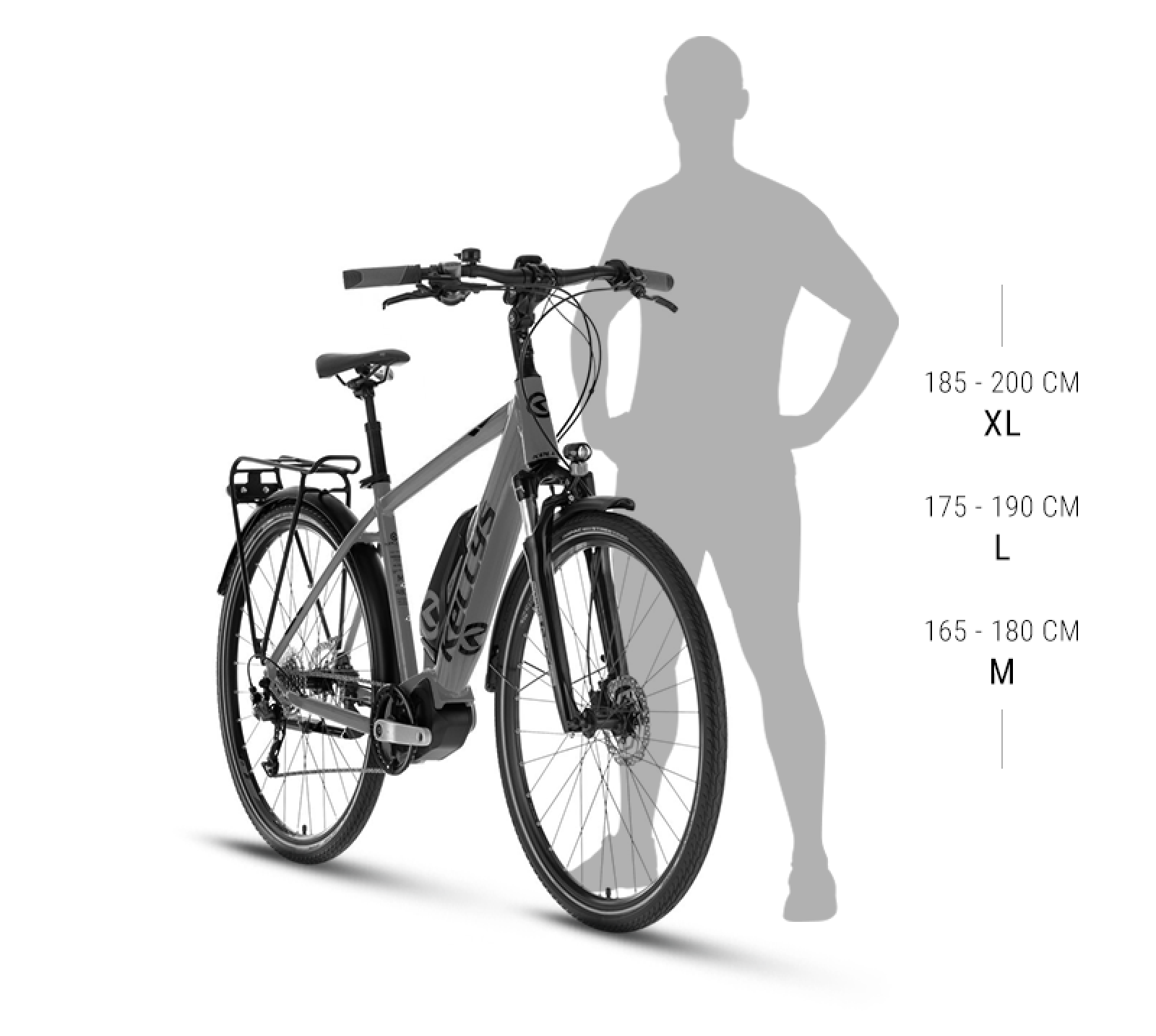

frame size M / L / XL
Drive
motor PANASONIC GX Ultimate, 90 Nm, 36 V
battery KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ
computer display PANASONIC Bluetooth® 5.0 navigation Side Color Display
crankset SAMOX (38T) - length 170 mm
rear derailleur SHIMANO Deore XT M8000 (direct mount)
shifters SHIMANO Deore SL-M5100-R Rapidfire Plus
speed 11
cassette sprocket SHIMANO CS-M5100-11 (11-42T)
chain KMC e11T (116 links)
pedals plastic
Brakes
brakes SHIMANO MT200 Hydraulic Disc
brake levers SHIMANO BL-MT200
brake rotors 180 mm front / 180 mm rear
Wheels
hubs SHIMANO MT400-B / SHIMANO Alivio M4050 Disc Center Lock (32 holes)
rims KLS Draft Disc 622x21 (32 holes)
spokes stainless steel black
tyres SCHWALBE Marathon Almotion Performance 55-622 (28x2.15) ReflectiveLine
thru axle ROCK SHOX Maxle Stealth 15x110 mm front
fenders
aluminium alloy
Cockpit
head parts FSA 1.5 semi-integrated
stem PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 105 mm
handlebar KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 700 mm
grips KLS Wave 2Density ergonomic
seat post KLS Active - diam 30.9 mm / length 350 mm
saddle SELLE ROYAL Lookin Visual Royalgel
front light
TRELOCK Veo 50
rear light
TRELOCK Duo Flat
accessories
alloy carrier, adjustable kickstand, bell
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
