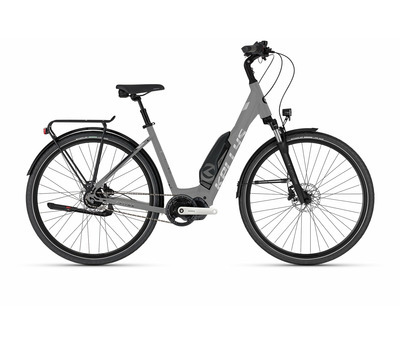

ESTIMA 40 SH MOONSTONE GREY 630 Wh
ESTIMA 40 SH MOONSTONE GREY 630 Wh 3322037

ESTIMA 40
SH MOONSTONE GREY 630 Wh

City e-bike

1 999,00 €

Launch price: 2 249,00 €

S M

Frame set

frame frame
KELLYS e-FRAME City Aluminium alloy monotube, semi-integrated battery, tapered HT, integrated kickstand mount
fork fork
SR SUNTOUR NEX-E25 NLO DS, 63 mm, coil spring
frame size frame size
S / M

Drive

motor motor
SHIMANO E5100, 50 Nm, 36 V
battery battery
SHIMANO BT-E8016, 630 Wh / capacity 17.5 Ah
switch unit switch unit
SHIMANO SW-E6010-L for assist
computer display computer display
SHIMANO SC-E6100
crankset crankset
SHIMANO E5000 (38T) - length 170 mm
shifters shifters
SHIMANO Nexus SL-C7000-5 Revoshift
speed speed
5
freewheel
18T for internal hub
chain chain
KMC Z1
pedals pedals
plastic

Brakes

brakes brakes
SHIMANO MT200 Hydraulic Disc
brake levers brake levers
SHIMANO BL-MT200
brake rotors brake rotors
160 mm front / 160 mm rear

Wheels

hubs hubs
SHIMANO TX505 / SHIMANO Nexus C7002-5CD 5-speed Internal Geared Hub, Coaster / Disc brake (32 holes)
rims rims
KLS Draft 23 Disc 622x23 (32 holes)
spokes spokes
stainless steel black
tyres tyres
KENDA Kwick 45x622 (700x45C) ReflectiveLine
fenders
plast

Cockpit

head parts head parts
1.5 semi-integrated
stem stem
PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 85 mm (S), 105 mm (M)
handlebar handlebar
KALLOY RiseBar - diam 31.8 mm / width 640 mm
grips grips
KLS Wave 2Density ergonomic
seat post seat post
KALLOY suspension - diam 30.9 mm / length 300 mm (S), 350 mm (M)
saddle saddle
SELLE ROYAL Freedom Royalgel

front light
AXA Compactline 35
rear light
TRELOCK Duo Flat
accessories
alloy carrier, adjustable kickstand, bell

Geometria ESTIMA 40 SH MOONSTONE GREY 630 Wh

We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
