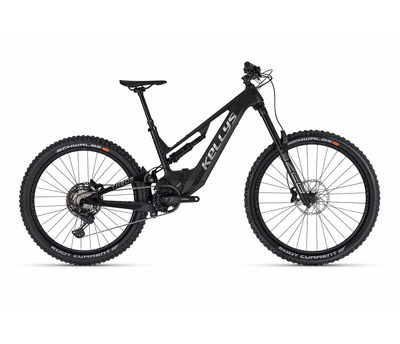

THEOS F70
SH 29/27.5" 820 Wh

Limited offer
4 999,00 €

Launch price: 7 499,00 €

M L

Frame set

frame frame
KELLYS THEOS F100 Carbon-Aramid Composite / Designed & manufactured in EUROPE / Think Link® suspension system, 170 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29/27.5"+ wheelset, 12x148 mm Boost thru axle
fork fork
ROCK SHOX Zeb Select+ (29) Boost, 180 mm, DebonAir+ / Charger 3 RC2 / Maxle Stealth 15 mm thru axle
rear shock rear shock
ROCK SHOX Super Deluxe Select+ RT, DebonAir+ / Open-Threshold (230x65 mm)
frame size frame size
M / L

Drive

motor motor
SHIMANO EP801, 85 Nm, 36 V
battery battery
KELLYS Re-Charge K1 Li-ion internal removable 820 Wh / capacity 23 Ah, co-developed by Kellys-BMZ
switch unit switch unit
SHIMANO SW-EN800-L for assist
computer display computer display
Shimano SC-EN500 cycle computer with assist switch
crankset crankset
SHIMANO EM600 / CRE70-B (34T) - length 170 mm
rear derailleur rear derailleur
SHIMANO Deore XT Linkglide M8130 (direct mount)
shifters shifters
SHIMANO Deore XT Linkglide SL-M8130-R Rapidfire Plus (I-Spec EV)
speed speed
11
cassette sprocket cassette sprocket
SHIMANO Linkglide CS-LG600-11 (11-50T)
chain chain
SHIMANO Linkglide CN-LG500

Brakes

brakes brakes
SHIMANO Deore XT M8120 hydraulic disc
brake levers brake levers
SHIMANO Deore XT BL-M8100
brake rotors brake rotors
SHIMANO RT64 220 mm front / EM300 203 mm rear

Wheels

wheel set wheel set
NOVATEC M30 622x30 front / NOVATEC M35 584x35 Center Lock rear (15x110 mm / 12x148 mm)
tyres tyres
SCHWALBE Eddy Current Evo Super Trail 62-622 (29x2.40) Tubeless Easy, ADDIX Soft, folding front / SCHWALBE Eddy Current Evo Super Gravity 65-584 (27.5x2.60) Tubeless Easy, ADDIX Soft, folding rear
thru axle thru axle
ROCK SHOX Maxle Stealth 15x110 mm front / Mr.control 12x177 mm rear

Cockpit

head parts head parts
ACROS 1.8 tapered semi-integrated
stem stem
RACE FACE Aeffect R 35 - diam 28.6 mm / bar bore 35 mm / 0° / length 50 mm
handlebar handlebar
RACE FACE Chester 35 RiseBar - diam 35 mm / rise 35 mm / width 780 mm
grips grips
KLS Poison
seat post seat post
KS Rage-i Remote Telescopic - diam 30.9 mm / length 442 mm, travel 150 mm (M) / length 495 mm, travel 170 mm (L)
saddle saddle
fi’zi:k Taiga, S-alloy rails

Veľkosť rámu THEOS F70 SH 29/27.5" 820 Wh

Geometria THEOS F70 SH 29/27.5" 820 Wh

We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
