Frame set

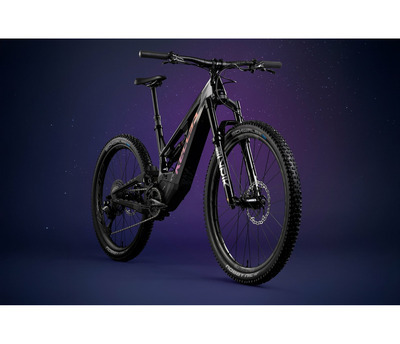

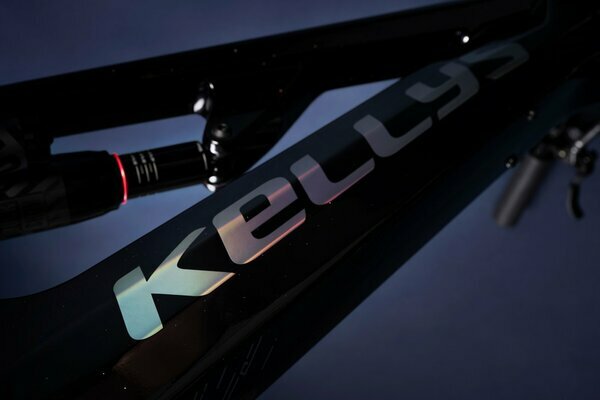

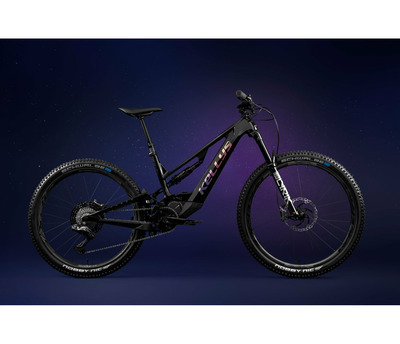

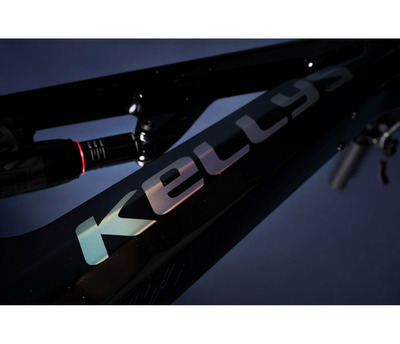

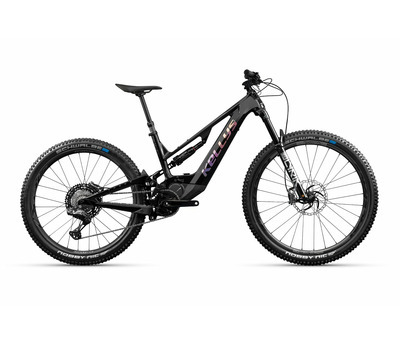

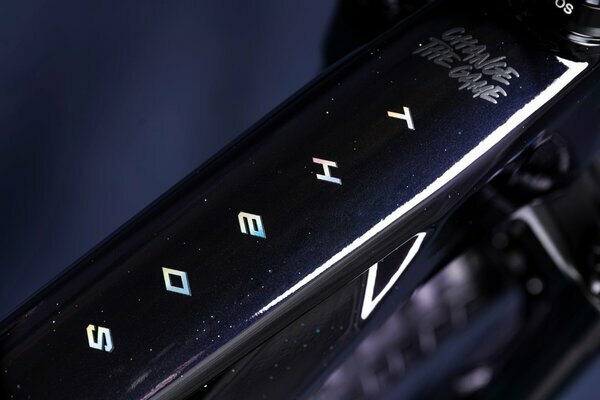

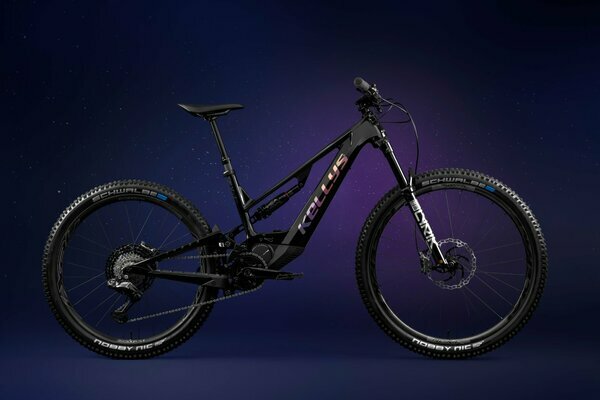

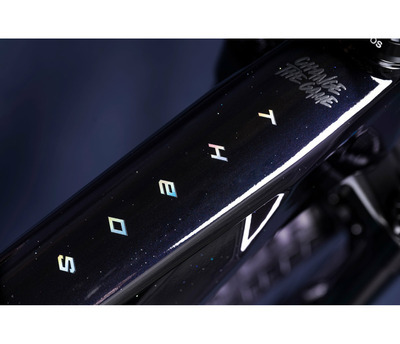

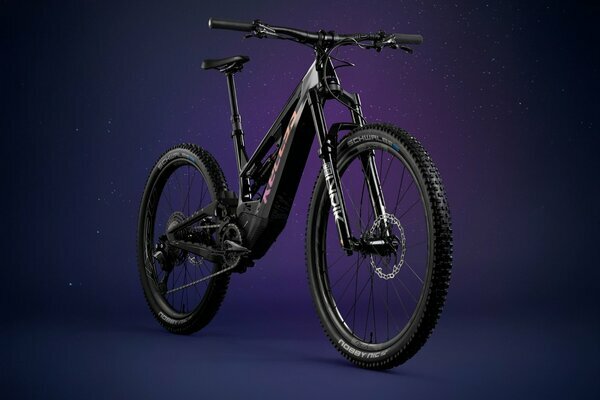

frame KELLYS THEOS F100 Carbon-Aramid Composite / Designed & manufactured in EUROPE / Think Link® suspension system, 140 mm rear travel, integrated removable battery, 1.8" tapered HT, post mount 203 mm, mullet 29/27.5"+ wheelset, 12x148 mm Boost thru axle
fork ROCK SHOX Lyrik Ultimate (29") Boost, 150 mm, DebonAir / Charger 3 RC2 / Maxle Stealth 15 mm thru axle
rear shock ROCK SHOX Super Deluxe Select+ RT, DebonAir / Open-Threshold (210x55 mm)
frame size M / L
Drive
motor SHIMANO EP801, 85 Nm, 36 V
battery KELLYS Re-Charge K1 Li-ion internal removable 825 Wh / capacity 23 Ah
switch unit SHIMANO SW-EN600-L for assist
crankset SHIMANO EM900 Hollowtech / CRE80-12-B (36T) - length 165 mm
rear derailleur SHIMANO Deore XT Di2 M8150 (direct mount)
shifters SHIMANO SW-EN600-R Di2 for shifting
speed 12
cassette sprocket SHIMANO XTR CS-M9100-12 (10-51T)
chain SHIMANO XTR CN-M9100
Brakes
brakes SHIMANO XTR M9120 Hydraulic Disc
brake levers SHIMANO XTR BL-M9120
brake rotors GALFER Fixed Disc Wave®, DB004W 203 mm front / DBO34W 203 mm rear
Wheels
wheel set RACE FACE Next R 31 Carbon 622x31 front / RACE FACE Next R 36 Carbon 584x36 Microspline rear (15x110 mm / 12x148 mm)
thru axle ROCK SHOX Stealth 15x110 mm front / Mr.control 12x177 mm rear
rear tyre SCHWALBE Nobby Nic Evo Super Trail 62-584 (27.5"x2.40) Tubeless Easy, ADDIX SpeedGrip, folding
front tyre SCHWALBE Nobby Nic Evo Super Trail 62-622 (29"x2.40) Tubeless Easy, ADDIX SpeedGrip, folding
Cockpit
head parts ACROS 1.8 tapered semi-integrated

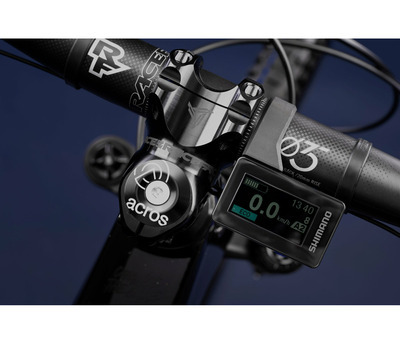

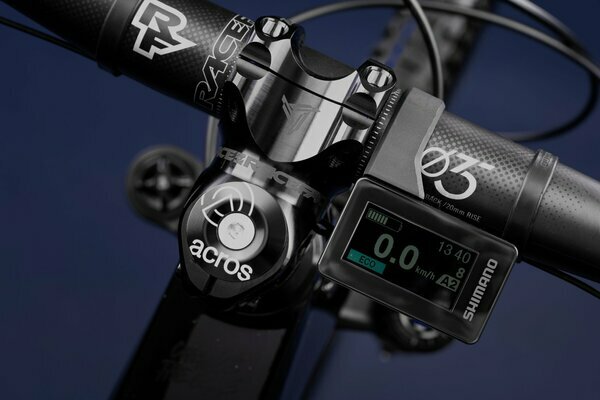

stem RACE FACE Turbine R 35 - diam 28.6 mm / bar bore 35 mm / 0° / length 50 mm
handlebar RACE FACE Next R 35 RiseBar - diam 35 mm / rise 20 mm / width 780 mm
grips KLS Poison
seat post KS LEV-Ci Remote Telescopic - diam 30.9 mm / length 440 mm, travel 150 mm
saddle fi’zi:k Vento Argo R1
weight 20.6 kg
We reserve the right to make changes to the product information contained on this site at any time without notice, including on equipment, specifications, models, colours, and materials.
